A battery busbar looks simple when it is shown as a copper strip on a drawing. In a real EV battery pack or battery energy storage system, however, it is one of the parts that decides whether the whole power path is efficient, compact, serviceable, safe and repeatable in production. It connects cells, modules, fuses, contactors, shunts, DC links, pre-charge circuits, battery disconnect units and cabinet-level distribution points. It also has to survive heat, vibration, installation tolerance, plating requirements, insulation limits and quality documentation requirements.
For engineering teams and sourcing teams, the main risk is not that a busbar cannot be made. The real risk is that the quotation is based on incomplete assumptions. A buyer may send only a 2D drawing and ask for “battery busbar price,” while the supplier still needs to know the continuous current, peak current, voltage, temperature rise target, insulation material, plating area, bolt size, contact pressure, pack environment, sample quantity, annual volume and required validation level. Without these details, one supplier may quote a prototype-grade copper part and another may quote a production-ready part with plating, insulation, tooling, fixture inspection and traceability. The two prices are not comparable.
This guide explains how to specify a custom battery busbar for electric vehicle battery packs and energy storage systems. It is written for battery pack designers, power electronics engineers, procurement managers, product managers and OEM sourcing teams that need a practical way to move from concept to RFQ. It also reflects the manufacturing perspective of JUMAI, a supplier focused on custom soft, rigid and braided copper busbars, with related deep drawing, stamping die and precision metal processing support. For a broader product overview, engineers can start from the JUMAI Custom Copper Busbars page, while project teams working on module-level flexible conductors may also find the JUMAI article on flexible copper busbars for EV batteries, BESS and power distribution useful.
The central message is straightforward: a battery busbar should be treated as an engineered power path. It is not only a piece of copper. It is a controlled interface between electrical performance, thermal behavior, mechanical packaging and manufacturing repeatability.
Table of Contents
Market signals: why better battery interconnects are now more important
Battery busbar demand is rising because the systems around it are becoming larger, denser and more standardized. The IEA Global EV Outlook 2026 battery section reports that EV battery deployment reached 1.2 TWh in 2025, almost 30% higher than in 2024 and more than seven times the level of 2020. The same IEA analysis also states that EVs accounted for more than 70% of total battery deployment in 2025, while light-duty vehicles represented more than 85% of EV battery deployment. In practical manufacturing terms, every new EV platform creates large numbers of current-carrying interfaces: cell-to-cell links, module-to-module links, pack terminals, busbar-fuse connections, HV distribution conductors and charging paths.
Energy storage is another strong driver. The U.S. Department of Energy describes energy storage as an important area for reliability, safety, analysis and performance validation in grid systems through its Office of Electricity Energy Storage. Stationary battery systems may not experience the same road vibration as EV packs, but they often use high DC voltage, long operating hours, cabinet-level thermal constraints and repeated service operations. In BESS cabinets and containers, a small temperature rise or contact resistance issue can become a lifetime reliability problem because the equipment is expected to operate continuously for years.
Copper remains central because it combines high electrical conductivity, high thermal conductivity, ductility, formability and corrosion resistance. The U.S. Geological Survey copper statistics page notes that electrical uses, including power transmission, generation, building wiring, telecommunication and electrical/electronic products, account for about three quarters of copper use. Battery busbars sit directly inside that trend: electrification increases the number of compact, high-current copper paths required in vehicles, cabinets, chargers, inverters and data centers.
The following table converts these market signals into practical battery busbar design implications.
| Market signal | Public data point or technical context | What it means for battery busbar buyers |
|---|---|---|
| EV battery deployment is scaling quickly | IEA reports 1.2 TWh of EV battery deployment in 2025, almost 30% higher than 2024 | More EV platforms require repeatable module links, pack terminals, HV distribution units and charging conductors |
| Battery systems are moving to higher voltage | EV packs often use 400 V or 800 V architectures; BESS cabinets commonly use high DC voltage strings, often up to 1000 V or 1500 V depending on system design | Creepage, clearance, insulation thickness, dielectric testing and edge quality become critical RFQ items |
| LFP chemistry is expanding | IEA reports that LFP accounted for over 55% of EV batteries deployed globally in 2025 | LFP-based EVs and stationary storage often emphasize cost efficiency, long life and manufacturing scale, so busbar cost and repeatability matter |
| Copper is heavily tied to electrical systems | USGS states electrical uses account for about three quarters of copper use | Material selection, plating, copper utilization and scrap control affect both cost and supply planning |
| Energy storage requires safety validation | DOE highlights storage reliability, safety and performance validation as major RD&D priorities | Busbars must be specified with system-level safety, serviceability and documentation in mind |
For JUMAI customers, the opportunity is not only to buy a conductor. It is to turn a high-current connection into a clean assembly part: lower installation labor, predictable fit, controlled contact area, clear insulation boundaries and repeatable quality inspection.

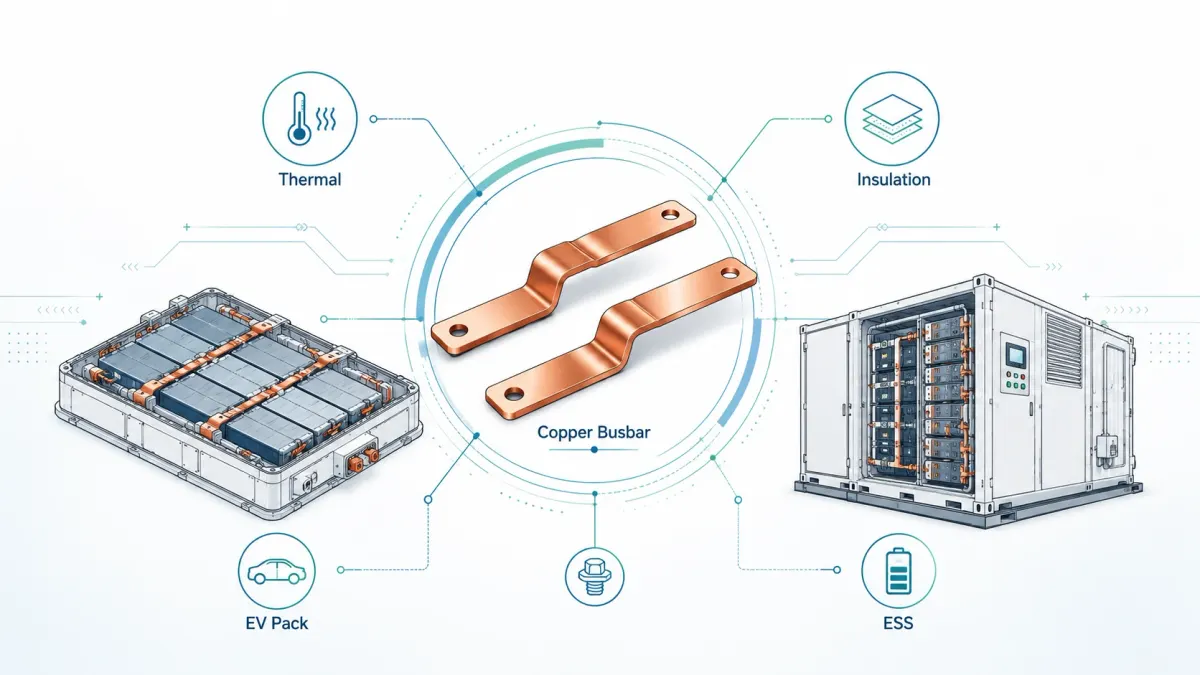

What a battery busbar does inside an EV pack or ESS cabinet
A battery busbar is a conductive component that carries current between battery cells, modules or power electronics. In simple terms, it is the highway for electrons. In engineering terms, it defines the resistance, inductance, voltage drop, temperature rise, short-circuit force path, connection interface and service boundary of a high-current battery circuit.
In an EV battery pack, busbars may be used at several levels. At the cell level, thin nickel, copper or copper-aluminum transition conductors can connect individual cylindrical, prismatic or pouch cells. At the module level, stamped or laminated copper busbars connect groups of cells. At the pack level, heavier rigid or flexible busbars connect modules to contactors, fuses, current sensors, the battery management system measurement points, service disconnects and high-voltage output terminals. In high-performance EVs, the main discharge and fast-charge paths can involve hundreds of amperes, and peak current may be much higher during acceleration, regenerative braking or fast charging.
In an energy storage system, the busbar network can be even more repetitive. One rack may contain many battery modules, and one container may contain many racks. Each rack requires power collection, grounding, protection devices and serviceable interfaces. The battery busbar may connect a module to a rack-level DC bus, a rack to a combiner cabinet, or a combiner to a power conversion system. The design is usually less constrained by vehicle crash packaging, but more constrained by service access, cabinet layout, long operating time, thermal accumulation and code compliance.
A good battery busbar design usually performs six functions at the same time:
- It carries continuous and peak current with acceptable voltage drop.
- It controls temperature rise in the conductor and at bolted, welded or plated joints.
- It maintains safe insulation distance for the rated voltage and pollution environment.
- It absorbs or avoids mechanical stress caused by vibration, tolerance stack-up and thermal expansion.
- It creates a repeatable assembly process that technicians can install correctly.
- It provides inspection points and documentation for production quality control.
These functions should be defined before the RFQ stage. When they are left undefined, the supplier must guess, and guessing is expensive.

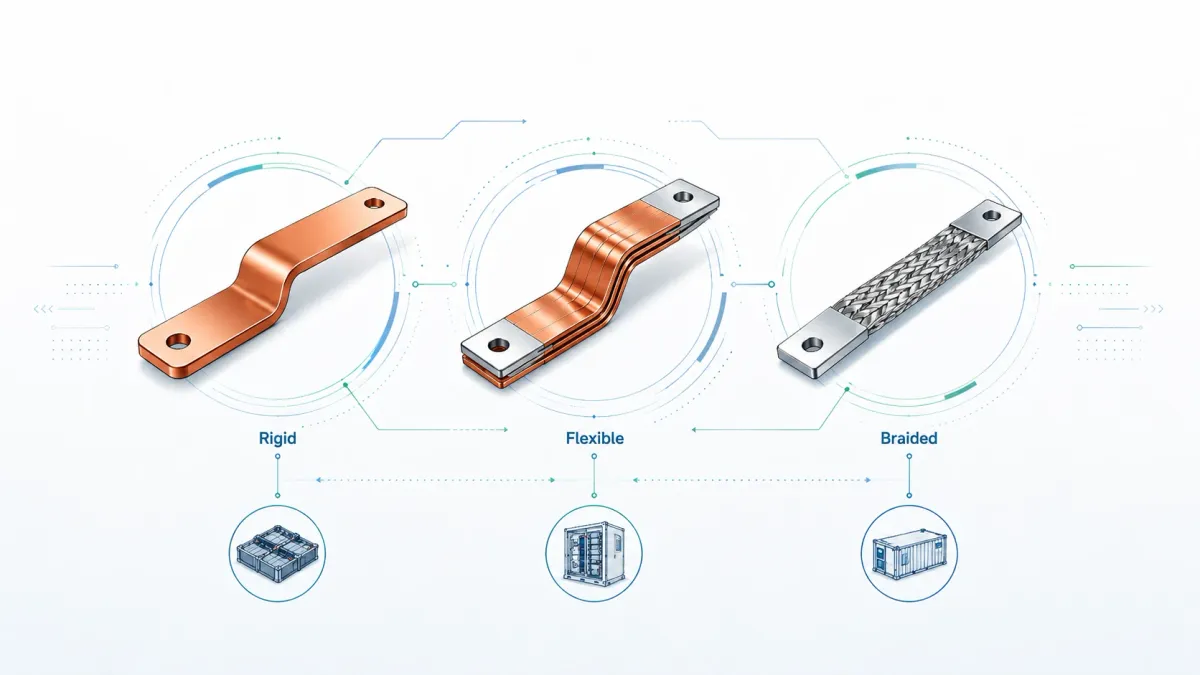

Battery busbar types: rigid, laminated flexible, braided and hybrid assemblies
Battery systems rarely use only one type of busbar. A fixed path between two contactors may use a rigid copper busbar. A module-to-module bridge may use a laminated flexible copper busbar. A grounding or vibration-sensitive connection may use a braided copper busbar. A complex pack may combine a rigid terminal section with a flexible mid-section and a plated contact zone.
JUMAI manufactures hard/rigid busbars, soft/braided busbars and laminated flexible busbars, as described on its Custom Copper Busbars product page. The right choice depends on movement, current, voltage, packaging, cost and production method. JUMAI’s technical article Rigid Busbars vs Flexible Busbars is a helpful internal reference when a project team is deciding whether mechanical stability or flexibility is more important.
| Battery busbar type | Typical construction | Best-fit use in EV packs and ESS | Main advantages | Watch points |
|---|---|---|---|---|
| Rigid copper busbar | Solid copper strip, plate or formed 3D conductor, punched and bent to drawing | Pack-level HV distribution, fuse links, contactor connections, cabinet DC bus, power distribution rails | Strong, repeatable geometry; good thermal mass; easy to fixture and inspect | Cannot absorb much tolerance or vibration; bend radius and hole-to-edge distance must be controlled |
| Laminated flexible copper busbar | Multiple thin copper foils stacked together and bonded, welded or pressed at terminal areas | EV module bridges, BESS rack links, inverter connections, tight spaces above modules | High current in low profile; controlled flexibility; better fit in compact packaging | Foil count, weld quality, bend zone and insulation transition must be engineered |
| Braided copper busbar | Fine copper wires woven into braid with pressed, welded or brazed terminals | High-vibration areas, grounding, flexible cabinet links, thermal expansion compensation | Excellent multi-directional flexibility and movement absorption | Braid density, terminal compression, corrosion protection and fatigue life need control |
| Rigid-flex busbar assembly | Rigid terminal zones combined with flexible copper section or laminated section | Battery packs where fixed devices connect to moving modules or serviceable subassemblies | Combines stable mounting with stress relief | More design review is needed for the transition zone |
| Copper-aluminum transition busbar | Copper terminal area connected to aluminum area by welding, bonding or other transition process | Cell interconnects where aluminum cell tabs meet copper power paths | Helps connect dissimilar metals and reduce weight | Galvanic corrosion, weld validation and contact interface must be reviewed carefully |
A practical rule is to use rigid busbars where the geometry is stable and structural support is needed, laminated flexible busbars where the conductor must bend in a defined direction, and braided busbars where movement is multi-directional or vibration is severe. The wrong choice can create hidden cost. A rigid bar used between two moving terminals may crack or loosen a joint. A braided link used where a defined flat current path is required may consume too much space. A laminated flexible busbar without a proper bend zone may concentrate fatigue at the welded terminal.
Electrical sizing: current, voltage drop and power loss
Electrical sizing begins with the current path. The simplest relationship is:
Current = Power / Voltage
This equation explains why 800 V EV architectures can reduce current for the same power compared with 400 V architectures. Lower current can reduce conductor cross-section, heat generation and voltage drop, but higher voltage increases insulation, creepage and clearance requirements. BESS systems often use high DC voltage for similar reasons: high voltage can reduce current, but it demands stricter insulation design and safer service procedures.
The table below is only an illustrative current calculation. It is not an ampacity recommendation, because actual busbar size depends on copper cross-section, length, surface area, enclosure airflow, ambient temperature, duty cycle, joint design and allowed temperature rise.
| System example | Power level | DC voltage | Approximate current before derating | What the buyer should define |
|---|---|---|---|---|
| EV traction path | 150 kW | 400 V | 375 A | Continuous current, acceleration peak, regen peak, cooling condition |
| EV traction path | 250 kW | 800 V | 313 A | Peak duration, pack temperature range, terminal layout |
| Fast charge path | 350 kW | 800 V | 438 A | Charge duty cycle, connector interface, thermal sensor location |
| BESS rack output | 250 kW | 1000 V | 250 A | Long-duration current, cabinet airflow, busbar support spacing |
| BESS cabinet/string | 500 kW | 1500 V | 333 A | Insulation system, creepage/clearance, fuse and contactor interfaces |
| BESS container DC bus | 1000 kW | 1500 V | 667 A | Parallel paths, short-circuit withstand, serviceability |
After current is estimated, resistance should be checked. For a simple rectangular copper path:
Resistance = copper resistivity x length / cross-sectional area
Power loss = current² x resistance
The squared term is important. If current doubles, I²R loss increases four times if resistance stays the same. That is why a small resistance increase at a joint can become a serious heat source. In many busbar failures, the conductor body is not the main problem. The hot spot is a bolted interface, a plated contact zone, a poorly compressed terminal, an undersized weld or a contaminated surface.
Voltage drop should also be checked. A 1 mV drop may seem small, but at 500 A it represents 0.5 W of heat at that location. If the drop occurs at a single contact interface rather than across a long conductor, the local temperature rise can be significant. For production projects, JUMAI recommends defining both conductor resistance and joint resistance expectations where possible. The article Copper Bus Bars for Power Distribution: How to Choose the Right Design discusses current rating, voltage drop and power loss from a broader power distribution perspective.
Thermal management: the conductor body and the contact interface must both be designed
Battery busbar thermal design is not only about selecting a wider copper strip. Heat is generated wherever current meets resistance. A long conductor can generate distributed heat, while a poor connection can generate concentrated heat. The concentrated hot spot is usually more dangerous because it can age insulation, loosen a joint, accelerate oxidation or trigger battery pack diagnostic issues.
A battery busbar thermal review should include the following items:
- Continuous current and peak current duration.
- Ambient temperature near the busbar, not only outside the pack or cabinet.
- Maximum allowed conductor temperature and terminal temperature.
- Cooling condition: natural convection, forced air, liquid-cooled plate nearby, sealed enclosure or potting.
- Contact resistance and the number of bolted or welded interfaces.
- Thermal paths into terminals, brackets, cells, cooling plates and enclosure walls.
- Insulation material temperature rating and flame-retardant target.
For EV packs, temperature can vary sharply across the pack. One module connection may sit near a cooling channel while another sits near a structural wall or service disconnect. For BESS cabinets, the challenge is often long-term thermal accumulation. A busbar that is acceptable during a short factory test may run hotter after many hours at high load in a dense cabinet.
The safest design process is to combine calculation, simulation and test. Calculation gives a first cross-section. Simulation helps identify heat concentration and airflow limitations. Test confirms the real assembly, including plating, bolt torque, terminal flatness and insulation. For high-value projects, a thermal test sample should use the same plating, fasteners, terminal surface, insulation and assembly method as the production design.
| Thermal design variable | Why it matters | Practical RFQ instruction |
|---|---|---|
| Copper cross-section | Lower resistance reduces I²R loss | Provide target continuous and peak current; do not only provide dimensions |
| Busbar length | Longer paths increase resistance and voltage drop | Provide routing constraints and possible alternative paths |
| Surface area | Flat conductors may dissipate heat better than compact round conductors in some layouts | Provide enclosure condition and nearby heat sources |
| Contact resistance | Local heat at joints can dominate failure risk | Specify plating, bolt size, torque target and contact area |
| Insulation rating | Insulation ages faster at high temperature | Specify maximum conductor temperature and flame-retardant requirement |
| Parallel paths | Uneven current sharing can overheat one path | Define symmetry, equal length and terminal matching requirements |
A business-oriented point is worth emphasizing: thermal margin reduces warranty risk. A lower-priced busbar that runs 10-20°C hotter than expected may look acceptable at incoming inspection but become costly after pack testing, field returns or redesign.
Voltage, insulation, creepage and clearance
A battery busbar is often a high-voltage component. In EV packs, the relevant safety context includes rechargeable energy storage systems. ISO 6469-1:2019 specifies safety requirements for rechargeable energy storage systems of electrically propelled road vehicles for protection of persons. For stationary and industrial batteries, IEC 62619:2022 specifies requirements and tests for safe operation of secondary lithium cells and batteries used in industrial applications, including stationary applications such as UPS, electrical energy storage systems, telecom and utility switching.
Busbar suppliers do not certify the entire EV pack or BESS cabinet by themselves, but the busbar must support the system-level safety design. That means the drawing should define more than metal dimensions. It should also define insulation boundaries, exposed conductive zones, creepage distance, clearance distance, dielectric test requirement, operating voltage, maximum voltage and pollution environment.
In simple terms, clearance is the shortest air distance between conductive parts. Creepage is the shortest distance along the surface of insulating material. In a clean, dry, controlled environment, the required distance may be smaller. In a dusty, humid or contaminated environment, more margin may be needed. Sharp copper edges, burrs, plating nodules and insulation cuts can reduce effective insulation strength, especially in high-voltage DC systems.
Common insulation choices for battery busbars include heat-shrink tubing, PVC, TPE, silicone, PA12, epoxy coating, powder coating and molded covers. Each has trade-offs.
| Insulation option | Typical use | Advantages | Watch points |
|---|---|---|---|
| Heat-shrink tubing | Prototypes, simple flexible busbars, serviceable links | Fast, cost-effective, widely available | Thickness and coverage near bends/terminals must be controlled |
| PVC | General insulated copper busbars | Economical and easy to process | Temperature and flame-retardant limits must match the pack environment |
| TPE | Flexible busbars and NEV applications | Good flexibility; some grades can be low smoke and halogen-free | Material grade must be specified; not all TPE is equal |
| Silicone | Higher temperature or flexibility applications | Good flexibility and thermal tolerance | Higher cost; mechanical abrasion needs review |
| Epoxy or powder coating | Rigid busbars, defined insulation areas | Stable shape and clean appearance | Masking, coating thickness and edge coverage require process control |
| Molded plastic cover | Pack-level protection and touch safety | Can integrate clips, labels and routing protection | Tooling cost and assembly tolerance must be considered |
JUMAI’s article What Is a Flexible Busbar and Why Is It Used in High-Current Electrical Systems? describes common flexible conductor structures and insulation considerations. For battery projects, the key is to specify not only “insulated busbar,” but also the rated voltage, dielectric test, insulation material, thickness, color, exposed terminal area and any flame-retardant or halogen-free requirement.

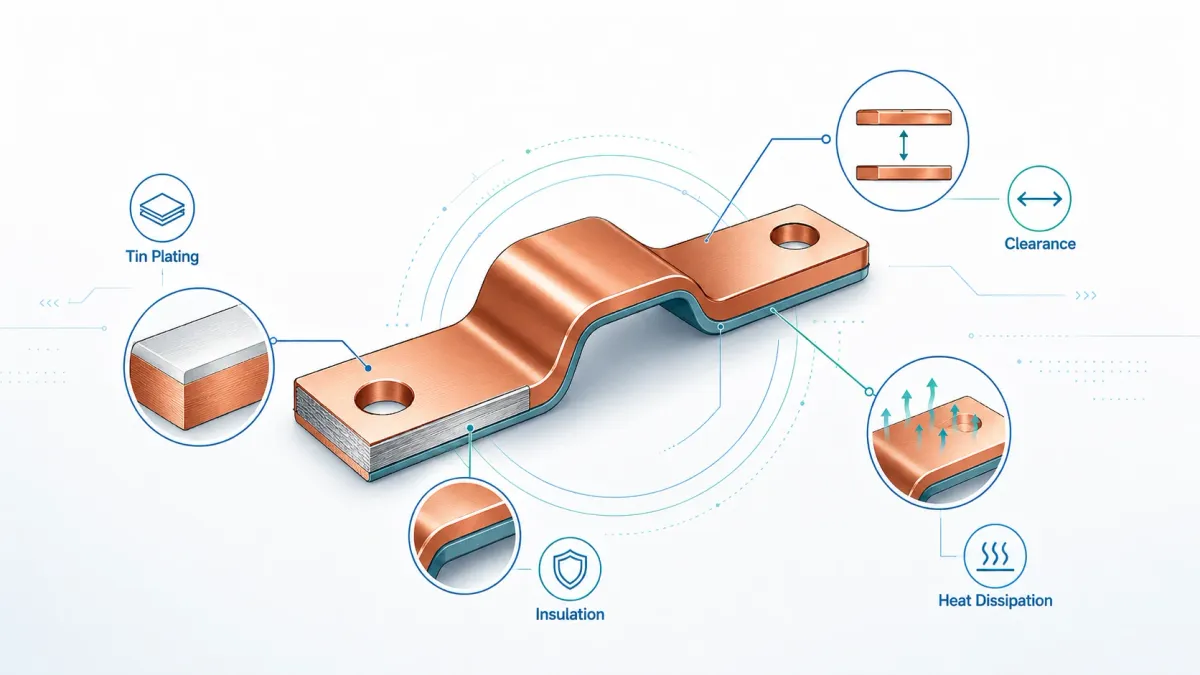

Material selection: copper grade, plating and surface treatment
Most high-current battery busbars use copper because it offers high conductivity and good formability. Common choices include C11000 electrolytic tough pitch copper, oxygen-free copper grades such as C10200 where application conditions require it, and T2 copper in China-based supply chains. For many EV and ESS busbar applications, high-conductivity copper is the default. However, the final choice should be connected to conductivity, forming, welding, plating, cost and supply availability.
JUMAI’s Copper Busbar Guide: Materials, Types, Manufacturing and Custom Options explains that flexible laminated busbars are often made by stacking thin copper strips and using insulation such as PVC, TPE or silicone. The JUMAI article Best Busbar Copper Materials for Low-Resistance Paths also discusses laminated busbars, flexible copper links, braided connectors and integrated deep-drawn or stamped copper parts.
Plating is equally important. Bare copper oxidizes. Oxidation does not always destroy conductivity immediately, but it can make contact resistance less predictable, especially at bolted interfaces. Tin plating is common for many power connections because it improves solderability and helps protect against oxidation. Nickel plating may be considered for higher temperature or specific corrosion environments. Silver plating can be used for premium low-resistance contacts, but cost is higher and it is not always necessary.
| Surface condition | Typical reason to choose it | Suitable project type | Key purchasing question |
|---|---|---|---|
| Bare copper | Lowest process cost, good conductivity | Internal protected areas, prototypes, non-contact surfaces | Will oxidation affect contact resistance during storage or service? |
| Tin-plated copper | Oxidation protection and stable bolted contacts | EV packs, BESS racks, power cabinets, general battery busbars | What plating thickness and salt spray requirement are needed? |
| Nickel-plated copper | Higher temperature and corrosion resistance | Harsh environments, special battery or industrial systems | Is nickel compatible with the mating surface and contact pressure? |
| Silver-plated copper | Excellent contact performance | High-end power electronics, premium switching contacts | Does the electrical benefit justify the cost? |
| Selective plating | Plating only on contact areas | Cost-sensitive busbars with defined terminals | Can masking and inspection be controlled repeatably? |
For sourcing teams, it is best to avoid vague plating descriptions such as “tin surface” or “anti-rust treatment.” Instead, define plating material, thickness range, plated area, masking area, surface appearance standard, corrosion test if needed and storage packaging. If the mating terminal is aluminum, nickel, tin or silver, the material combination should be reviewed to avoid galvanic corrosion or fretting corrosion.
Mechanical design: holes, bends, tolerances and vibration
A battery busbar must fit the assembly every time. This is especially important for EV battery packs where terminal positions are fixed by modules, cooling plates, frames and covers. It is also important in BESS racks where technicians must install multiple identical parts quickly without forcing the conductor into position.
The most common mechanical design issues are simple but costly:
- Hole positions are too tight for the real tolerance stack-up.
- Bend radius is too small for copper thickness and temper.
- Hole-to-edge distance is too short, creating cracks or deformation.
- Burr direction is not defined, causing insulation damage or poor contact.
- A flexible section is too short, so stress concentrates at the welded terminal.
- A rigid busbar is used where thermal expansion requires compliance.
- Assembly tools cannot access the bolt after the busbar is installed.
- Insulation covers the area where the terminal must make electrical contact.
EV packs experience vibration, shock and thermal cycling. A busbar that is electrically adequate may still fail mechanically if it transfers too much stress into cell terminals. This is one reason laminated flexible copper busbars and braided copper busbars are used in battery systems. They can absorb movement that a rigid copper strip cannot. JUMAI’s Role of Flexible Copper Busbars in Optimizing Battery Energy Storage Systems describes flexible copper busbars as engineered conductors for high current with superior mechanical flexibility, including braided and multi-layered forms.
For high-volume projects, mechanical design should be reviewed with manufacturability in mind. CNC bending can produce accurate 3D shapes, but every bend needs enough material, a controlled radius and realistic tolerance. Stamping can reduce unit cost at volume, but the tool must be designed for copper behavior, burr control and flatness. Deep-drawn or stamped accessories can be integrated when the busbar needs a recessed feature, cover, sensor bracket or custom contact geometry.
JUMAI’s manufacturing advantage is especially relevant when a project needs more than a flat conductor. A battery pack may need a copper busbar, a stamped nickel sensing part, a deep-drawn copper cup, a protective bracket and a custom terminal cover. When these are designed separately, assembly problems may appear late. When they are reviewed as a system, the final design can be cleaner and more production-friendly.
Contact design: the joint is often the weakest point
A battery busbar is only as good as its connections. A low-resistance copper conductor can still overheat if the bolted joint is poorly designed. Contact resistance depends on surface material, flatness, contact pressure, contamination, plating, oxide layer, bolt torque, washer choice and long-term relaxation.
A good bolted joint usually needs:
- Enough contact area for the current.
- Flat and clean mating surfaces.
- Compatible plating on both sides.
- Correct bolt size, washer and torque.
- Resistance to loosening under vibration.
- Defined assembly sequence.
- Inspection method for torque and position.
- Protection against contamination during storage and installation.
For EV packs, service disconnects, fuses, current sensors and contactors can create multiple joints in a compact area. Each joint adds resistance and assembly risk. For BESS, the number of repeated joints may be very high. A small assembly inconsistency can repeat across hundreds of racks. That is why the RFQ should identify critical contact interfaces and not hide them inside a general drawing note.
Welded or bonded joints are different. A laminated flexible copper busbar may have multiple copper foils welded at the terminal area so the layers act as a solid contact. The flexible middle span remains unbonded or partially free to move. If the weld area is too small, current sharing may be uneven. If the weld is too close to the bend zone, fatigue risk increases. If heat input is poorly controlled, material properties or flatness may be affected.
For battery busbar projects, ask the supplier how terminal quality is controlled. Possible inspection points include dimensional inspection, visual weld inspection, peel or pull testing, microsection for development samples, resistance testing, plating thickness measurement and thermal validation under current.
Standards and safety mindset for EV and energy storage projects
Battery busbars are components, but they operate inside regulated systems. Buyers should understand which system standards influence busbar design, even if the busbar itself is not the complete certified product.
For EV battery packs, ISO 6469-1 is relevant because it covers safety specifications for rechargeable energy storage systems of electrically propelled road vehicles. For industrial and stationary battery systems, IEC 62619 is relevant because it covers safety requirements for secondary lithium cells and batteries used in industrial applications, including stationary applications. In North America, many stationary storage projects also reference UL standards. The UL 9540A test method is designed for fire safety and building code requirements for battery energy storage systems, while UL Standards & Engagement lists UL 1973 as an active standard for batteries used in stationary and motive auxiliary power applications. ANSI also lists ANSI/CAN/UL 9540 as covering energy storage systems for stationary indoor and outdoor installations.
A busbar drawing does not need to copy an entire standard. But it should support the standard-driven design requirements of the pack or cabinet. That may include:
| Safety or compliance area | How it affects battery busbar design | What to include in the RFQ |
|---|---|---|
| Electrical shock protection | Exposed conductive surfaces must be minimized or protected | Rated voltage, insulation zones, touch-safe cover requirement |
| Creepage and clearance | High-voltage DC requires safe spacing | Minimum distance requirements and pollution degree assumptions |
| Thermal safety | Hot spots can age insulation or nearby components | Continuous current, peak current, ambient temperature and temperature rise limit |
| Fire behavior | Insulation and covers may need flame-retardant performance | Material grade, flame rating target and test expectation |
| Short-circuit withstand | Fault current can create mechanical force and heat | Short-circuit current, duration, support spacing and fixing method |
| Vibration and shock | EV packs and some mobile ESS require mechanical robustness | Vibration profile, fatigue expectation and flexible section requirements |
| Traceability | Automotive and energy projects often require documentation | Material certificate, inspection report, plating record and batch tracking |
JUMAI’s Busbar Copper Standards and Testing for Global Markets provides additional context on copper grades, testing, standards and traceability. For procurement teams, the important point is to connect compliance goals to measurable busbar requirements instead of leaving them as general language.

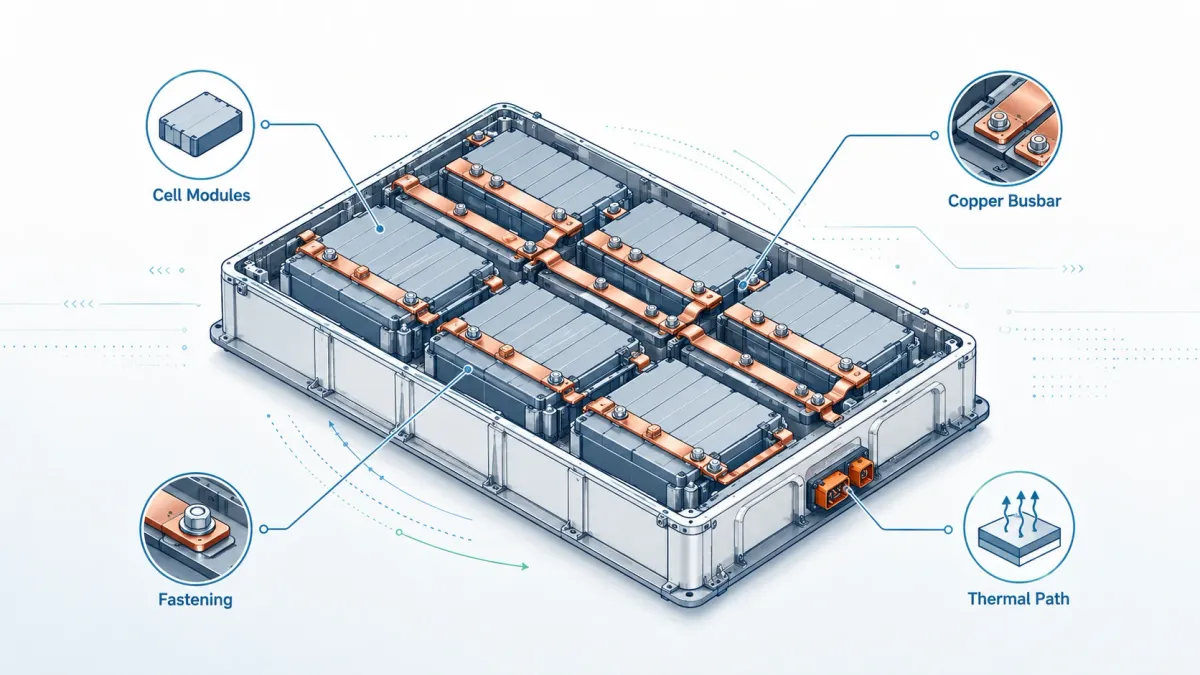

EV battery pack design recommendations
EV battery busbars operate in a challenging environment: high current, high voltage, limited space, vibration, crash packaging, thermal cycling and strict production repeatability. A small design mistake can affect pack assembly, battery management system readings, thermal performance or service safety.
For EV module interconnects, the first question is movement. If the cells and modules are mechanically fixed with little relative movement, a rigid stamped copper busbar may work well. If the connection must absorb tolerance, pack swelling, vibration or thermal expansion, a laminated flexible copper busbar or braided link may be safer. For cell tabs, the material combination matters. Many pouch and prismatic cells use aluminum tabs on one side and copper tabs on the other, so copper-aluminum transition design and welding validation become important.
For pack-level HV distribution, the key is to reduce assembly complexity. A cable can be convenient during prototype work, but it may require routing clips, lugs, crimping, larger bend radius and manual adjustment. A custom rigid or flexible busbar can lock the route into a repeatable shape. This can reduce assembly time and prevent routing variation. JUMAI’s Flexible Busbar vs. Cable article is useful for teams comparing cable assemblies with laminated or braided busbar solutions.
Recommended EV battery busbar practices include:
- Separate the electrical contact zone from the mechanical flex zone.
- Avoid placing holes or notches where bending stress is highest.
- Define burr direction and edge rounding for high-voltage parts.
- Use selective insulation so terminals remain clean and exposed only where required.
- Review the service path so technicians can remove covers and fasteners safely.
- Add anti-rotation features or clear positioning features when assembly direction matters.
- Define orange insulation or labeling if required by the customer’s high-voltage color scheme.
- Control packaging to protect plating and insulation before installation.
EV buyers should also provide the supplier with the actual application context. A busbar for a prototype mule vehicle is not the same as a production busbar for an OEM battery pack. The production part may need PPAP-like documentation, process capability, fixture inspection, barcode traceability, special packaging and production tooling.

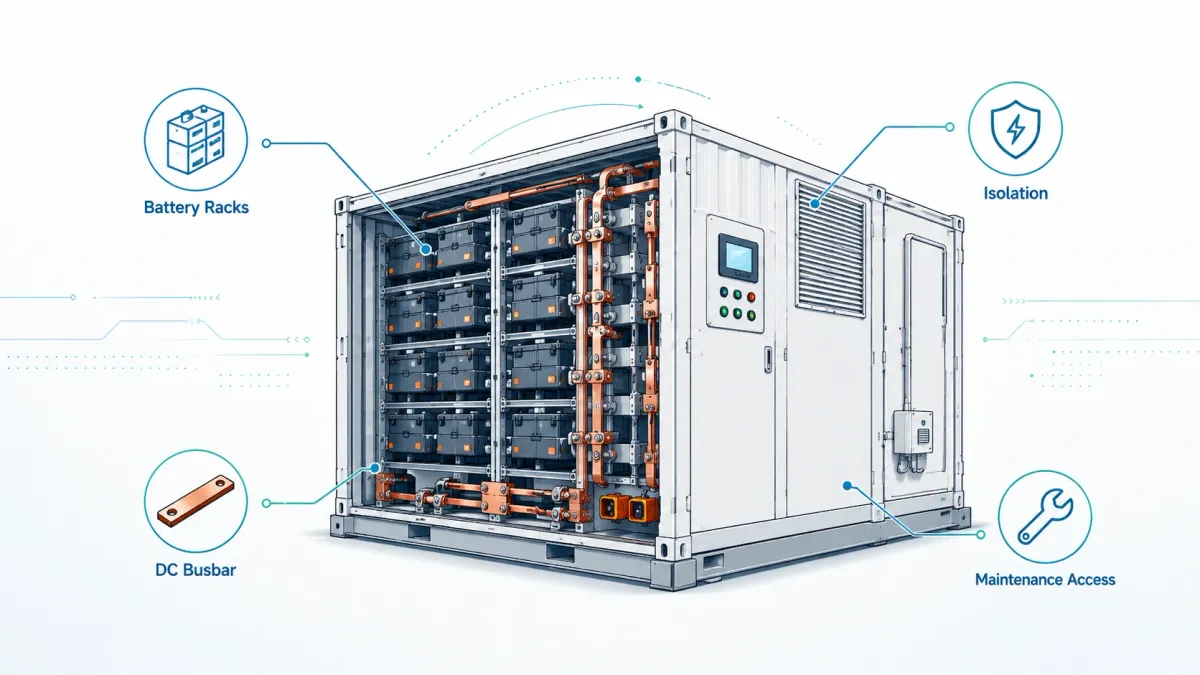

Energy storage system design recommendations
BESS busbar design is sometimes underestimated because stationary systems do not face road vibration like EVs. In reality, BESS projects bring their own challenges: high DC voltage, long duty cycles, containerized heat accumulation, service access, field replacement, corrosion risk and large quantities of repeated connections.
A BESS rack busbar should be easy to install correctly. Technicians may assemble many identical connections, so visual orientation, hole alignment, insulation boundary and terminal access matter. A design that saves a small amount of copper but makes assembly slower may increase total system cost. A part that requires force to fit may transfer stress to module terminals or create uneven contact pressure.
For containerized systems, corrosion protection and insulation reliability deserve special attention. Even indoor cabinets can experience humidity, dust or temperature cycling. Tin plating, sealed packaging, clear storage instructions and correct contact surface handling can improve consistency. For systems installed near coastal areas or industrial environments, plating and corrosion testing requirements should be discussed early.
BESS designs also need service thinking. If a module must be replaced, can the busbar be removed without disturbing adjacent modules? Can the fastener be reached with standard tools? Is the exposed conductor protected after a cover is removed? Are positive and negative busbars clearly separated and labeled? Does the insulation color or marking reduce field mistakes?
For stationary applications influenced by IEC 62619, UL 1973, UL 9540 or local fire codes, the busbar supplier should receive the relevant system requirements that affect the part. The supplier does not need confidential pack algorithms or full cabinet IP, but it does need the voltage, current, environment, insulation expectations and documentation requirements.

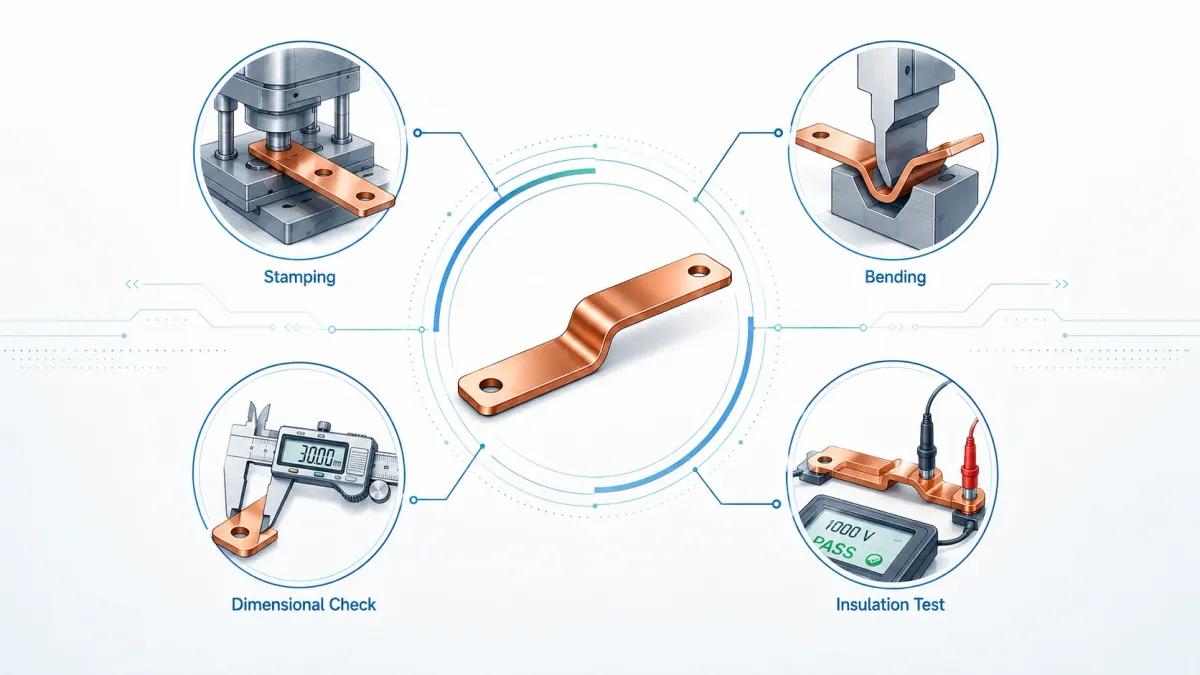

Manufacturing process: from drawing to production-ready battery busbar
A production battery busbar is normally developed through several steps. Skipping steps may reduce prototype cost, but it can increase launch risk.
First, the project team defines the electrical and mechanical requirements. This includes current, voltage, temperature, material, plating, insulation, shape, hole pattern, tolerance and expected quantity. Second, the supplier reviews manufacturability. The supplier may suggest changes to bend radius, hole location, copper thickness, foil count, terminal shape, plating area, insulation boundary or tooling strategy. Third, prototypes are produced for fit check and electrical validation. Fourth, the design is adjusted based on test results. Fifth, production tooling, fixtures and inspection plans are prepared.
Typical manufacturing operations may include:
| Manufacturing step | Purpose | Quality control focus |
|---|---|---|
| Material selection and cutting | Prepare copper strip, sheet, foil or braid | Material grade, thickness, hardness, certificate |
| Stamping or CNC punching | Create holes, slots, profile and locating features | Hole tolerance, burr height, edge quality, flatness |
| CNC bending or forming | Create 2D or 3D geometry | Bend angle, bend radius, springback, fixture fit |
| Foil stacking and terminal bonding | Build laminated flexible busbar terminals | Layer count, weld area, terminal thickness, resistance |
| Braiding and terminal pressing | Create flexible braided conductors | Braid density, terminal compression, pull strength |
| Plating | Protect contact surfaces and improve interface stability | Plating thickness, adhesion, coverage, corrosion resistance |
| Insulation | Add dielectric and touch protection | Thickness, coverage, adhesion, color, defects |
| Final inspection | Verify part before shipment | Dimensions, appearance, resistance, labeling, packaging |
JUMAI is positioned for projects that need copper busbar manufacturing plus related precision metal processing. This matters when a battery busbar must work together with deep-drawn parts, stamped terminals, custom brackets, covers or tooling. A busbar project can fail because of a small bracket interference, an unreachable bolt or a cover that touches the conductor. Combining manufacturing feedback early can prevent these late-stage issues.
Cost drivers: how to reduce unit cost without reducing reliability
Battery busbar cost is not only copper weight. Copper weight matters, but the final price also includes material utilization, tooling, stamping time, bending complexity, plating, insulation, testing, packaging, scrap rate, documentation and order quantity.
The most common cost drivers are:
- Copper grade and thickness.
- Cross-section and part length.
- Number of bends and 3D forming complexity.
- Tolerance tightness and inspection difficulty.
- Tooling requirement for stamping or forming.
- Plating material, thickness and masking complexity.
- Insulation material and process.
- Welded or bonded terminal complexity in laminated flexible busbars.
- Packaging requirements to protect plated contact surfaces.
- Traceability and quality documentation.
The best way to reduce cost is not simply to ask for a lower price. It is to remove uncertainty and avoid over-specification. If only two terminal pads require plating, selective plating may reduce cost. If a prototype can use CNC punching before a stamping die is made, the team can validate geometry before committing to tooling. If a tolerance is not functionally important, loosening it can reduce inspection cost. If a rigid bar is cracking because it is being forced into position, switching to a flexible section may reduce warranty risk even if the part cost is higher.
A business-oriented busbar sourcing strategy should compare total installed cost, not only unit price. A custom busbar that reduces assembly time, eliminates cable lugs, improves service access and lowers field failure risk may be cheaper over the life of the product than a low-cost conductor that creates labor and warranty problems.
RFQ checklist: what to send JUMAI before requesting a quote
A clear RFQ is the fastest way to get a realistic quotation. The goal is not to make the buyer’s work harder. The goal is to prevent hidden assumptions. Even if some data is not final, sharing the target range allows JUMAI to propose a practical manufacturing route.
| RFQ item | What to provide | Why it matters |
|---|---|---|
| Application | EV battery pack, BESS rack, inverter, UPS, charger, data center PDU or other system | Application affects vibration, insulation, standards and validation |
| Busbar type | Rigid, laminated flexible, braided, rigid-flex or not yet decided | Helps supplier recommend construction and process |
| Current | Continuous current, peak current, peak duration and duty cycle | Determines cross-section, thermal test and contact design |
| Voltage | Rated voltage, maximum voltage, AC/DC | Determines insulation, creepage, clearance and dielectric test |
| Material | C11000, T2 copper, oxygen-free copper or customer-specified grade | Affects conductivity, forming, welding and cost |
| Dimensions | 2D drawing, 3D CAD, hole pattern, bend angles and tolerances | Required for manufacturability and quotation |
| Plating | Bare copper, tin, nickel, silver, selective plating, thickness | Affects contact resistance, corrosion protection and cost |
| Insulation | Material, color, thickness, rated voltage, exposed terminal area | Affects safety, appearance, flexibility and production process |
| Environment | Ambient temperature, humidity, vibration, altitude, corrosion risk | Affects material, plating, insulation and validation |
| Standards | ISO, IEC, UL, customer specification or internal test target | Helps align documentation and design assumptions |
| Quantity | Prototype, pilot run, annual volume, project life | Determines whether tooling is economical |
| Documentation | Material certificate, inspection report, plating report, PPAP-like package | Affects quality planning and quotation |
| Packaging | Contact protection, anti-oxidation bag, tray, label, barcode | Prevents damage before assembly |
A useful inquiry could look like this:
“We need a custom insulated battery busbar for an EV battery pack. The busbar connects two modules in an 800 V DC system. Target continuous current is 300 A, peak current is 600 A for 10 seconds. The busbar should be laminated flexible copper, tin-plated at terminal areas, orange insulation, two M6 mounting holes, operating temperature -40°C to 105°C, prototype quantity 50 pieces and annual volume 20,000 pieces after validation. We can provide STEP and PDF drawings.”
That request gives the supplier enough context to ask smart questions instead of guessing.
Common design mistakes and how to avoid them
The following mistakes appear often in battery busbar projects. Most are avoidable if engineering and sourcing teams review the part together before sending the RFQ.
| Mistake | Why it causes problems | Better approach |
|---|---|---|
| Specifying only copper dimensions without current and temperature | Supplier cannot confirm thermal suitability | Provide continuous current, peak current, ambient temperature and temperature rise target |
| Using rigid copper where terminals move | Stress may crack copper or loosen joints | Use laminated flexible or braided design where movement is expected |
| Ignoring contact resistance | Joint hot spots can dominate thermal failure | Define plating, torque, contact area and surface cleanliness |
| Placing holes near bend zones | Cracks and deformation may occur | Move holes away from bends and respect minimum edge distance |
| Covering contact pads with insulation | Assembly team may cut insulation manually, reducing safety and consistency | Define exposed terminal areas clearly on the drawing |
| Over-tightening unnecessary tolerances | Cost increases without functional benefit | Identify critical dimensions and loosen non-critical tolerances |
| Not defining burr direction | Burrs can damage insulation or reduce contact quality | Add drawing notes for burr direction, deburring and edge rounding |
| Treating prototype and production parts the same | Prototype process may not scale economically | Discuss pilot tooling, production tooling and validation plan early |
The most expensive busbar mistake is not a slightly high copper price. It is discovering after pack testing that the connection overheats, does not fit, cannot be assembled safely or requires redesign of surrounding parts.
How JUMAI supports custom battery busbar projects
JUMAI supports custom soft, rigid and braided copper busbars for modern energy systems. The company’s positioning is especially suitable for buyers who need design discussion, online preview, order consultation and manufacturing support rather than only commodity copper parts. Battery projects often require multiple technologies at the same time: copper stamping, CNC bending, foil lamination, terminal welding, tin plating, insulation, fixture inspection and packaging.
JUMAI can support several project scenarios:
- EV battery module links that require laminated flexible copper busbars.
- Pack-level high-voltage distribution conductors with rigid or rigid-flex geometry.
- BESS rack and cabinet busbars with tin-plated terminals and insulation.
- Braided copper links for vibration, grounding or thermal expansion.
- Copper parts combined with deep-drawn components, stamped brackets or custom tooling.
- Prototype development before mass-production tooling.
- Design-for-manufacturing review for drawings, bends, holes, plating and insulation.
Internal technical resources on the DeepDrawTech website can help customers prepare better inquiries:
- Product overview: Custom Copper Busbars
- Practical design context: Flexible Copper Busbar for EV Batteries, BESS and Power Distribution
- Material and manufacturing overview: Copper Busbar Guide
- Power distribution sizing context: Copper Bus Bars for Power Distribution
- Design selection: Rigid Busbars vs Flexible Busbars
- Standards mindset: Busbar Copper Standards and Testing
For many buyers, the fastest next step is to send a drawing and application description. Even if the drawing is not final, JUMAI can review whether the copper cross-section, bend areas, hole locations, plating zones and insulation concept are realistic for manufacturing.
Practical battery busbar specification template
The template below can be copied into a drawing note, supplier inquiry or project specification.
| Specification field | Example input |
|---|---|
| Project | EV battery pack module interconnect / BESS rack busbar / HV distribution busbar |
| System voltage | 800 V DC nominal, 920 V DC maximum / 1500 V DC maximum |
| Current rating | 300 A continuous, 600 A peak for 10 seconds |
| Busbar type | Laminated flexible copper busbar / rigid copper busbar / braided copper busbar |
| Copper material | C11000 / T2 copper / oxygen-free copper / customer specified |
| Copper structure | 10 layers x 0.2 mm x 30 mm width / 4 mm x 40 mm rigid bar |
| Surface treatment | Tin plating 5-10 micrometers on terminal areas, selective plating |
| Insulation | Orange TPE, 1.0 mm nominal thickness, exposed terminal pads per drawing |
| Holes and terminals | M6 holes, defined contact area, burr direction away from contact surface |
| Temperature range | -40°C to 105°C operating environment |
| Validation | Dimensional report, resistance test, plating thickness report, dielectric test if required |
| Quantity | 30 prototype pieces, 500 pilot pieces, 50,000 annual production pieces |
| Documents | 2D PDF, STEP file, material requirements, inspection standard, packaging requirement |
FAQ: battery busbar design and sourcing
What is the best material for a battery busbar?
High-conductivity copper is the most common choice for high-current battery busbars because it provides low resistance, good thermal performance and good formability. C11000 or equivalent high-conductivity copper is widely used. Oxygen-free copper may be considered for special forming, welding or environmental requirements. Aluminum can reduce weight but has lower conductivity and requires careful contact and corrosion design, especially when connected to copper.
Is a flexible battery busbar better than a cable?
Not always, but it can be better in compact, repeatable high-current assemblies. A cable is useful when routing flexibility in the field is important. A laminated flexible busbar can provide a flatter shape, controlled terminal orientation, lower profile and more repeatable assembly. In EV battery packs and BESS cabinets, this can reduce installation variation and improve packaging.
When should I use a braided copper busbar?
Use a braided copper busbar when the connection must absorb vibration, movement, misalignment or thermal expansion in multiple directions. Braided links are common for grounding, flexible cabinet connections, moving assemblies and vibration-sensitive locations. For a defined low-profile power path, a laminated flexible copper busbar may be better.
Do battery busbars need insulation?
Most high-voltage battery busbars need insulation or protective covers, except at defined contact areas. The insulation choice depends on voltage, temperature, flame-retardant requirement, bend radius, abrasion risk and assembly method. Buyers should specify rated voltage, material, thickness, color and exposed terminal areas.
How do I know the busbar is large enough for my current?
Start with current, duty cycle and voltage drop. Then calculate resistance and I²R loss. After that, review thermal conditions such as ambient temperature, airflow, nearby heat sources and contact resistance. Final confirmation should come from testing the real assembly, not only from theoretical cross-section.
What information does JUMAI need to quote a battery busbar?
JUMAI needs the drawing or CAD file, current, voltage, busbar type, copper material, plating, insulation, application, quantity, environment and any testing or documentation requirements. If the design is early, a system description is still useful.
Can JUMAI support both prototypes and mass production?
Yes. Prototype parts may use flexible processing such as CNC cutting, punching and bending. Higher-volume parts may use dedicated tooling, fixtures and inspection plans to improve repeatability and unit cost. It is best to tell JUMAI the expected annual volume early so the quotation can consider both prototype and production stages.
Why do battery busbar quotations vary so much between suppliers?
Quotations vary because suppliers may assume different copper grades, plating thickness, insulation materials, tooling methods, testing levels, packaging and documentation. A clear RFQ reduces this variation and makes supplier comparison more meaningful.
Final recommendation: specify the power path before you compare prices
A battery busbar is a small part compared with a complete EV battery pack or energy storage container, but it has a large influence on efficiency, safety, manufacturability and long-term reliability. The best design is not automatically the thickest copper bar or the cheapest stamped strip. It is the design that carries the required current, fits the available space, controls heat, protects against high voltage, survives mechanical stress and can be produced repeatedly at the required volume.
For EV battery packs, pay special attention to vibration, tolerance, flexible sections, terminal stress and high-voltage insulation. For BESS cabinets and containers, pay special attention to long operating time, serviceability, corrosion protection, contact resistance and repeated assembly quality. For both markets, define current, voltage, temperature, material, plating, insulation, geometry, standards and quantity before comparing prices.
JUMAI can support buyers from early concept review to prototype and production. If your team is developing an EV battery pack, BESS rack, inverter cabinet, UPS system, charger or high-current DC distribution assembly, send the drawing, current rating, voltage rating and application background to JUMAI. A better battery busbar starts with a better specification, and a better specification starts before the RFQ is sent.
