C10100 vs C11000: Best Copper for Busbars?

In the high-stakes world of electrical engineering and power distribution, the margin for error is non-existent. At JUMAI TECH (www.deepdrawtech.com), we have spent years perfecting the art of fabricating Precision Copper Busbars, Deep-Drawn Components, and Stamping Dies. Over decades of manufacturing, one question surfaces more often than any other during the design phase: “Which grade of copper should I use?” While there are hundreds of copper alloys available, the battle for supremacy in electrical conductivity almost always comes down to two heavyweights: C10100 (Oxygen-Free Electronic) and C11000 (Electrolytic Tough Pitch).

Selecting the wrong material isn’t just a minor procurement error; it can lead to catastrophic system failures, thermal runaway, and significant financial loss. Whether you are designing battery interconnects for electric vehicles (EVs), massive switchgear for industrial plants, or intricate consumer electronics, understanding the nuance between these two grades is critical. In this comprehensive guide, we will dismantle the technical specifications, mechanical properties, and cost-benefit analysis of C10100 versus C11000 to help you make the definitive choice for your next project.

The Fundamentals of Electrical Copper

Before we dive into the specific grades, it is essential to understand what makes copper the gold standard (ironically) for electrical transmission. Copper is chosen for its atomic structure, which allows for the free flow of electrons with minimal resistance. However, not all copper is created equal. The presence of impurities—specifically oxygen, phosphorus, and other trace metals—can drastically alter conductivity, ductility, and thermal performance.

The IACS Standard Explained

In the industry, we measure conductivity against the International Annealed Copper Standard (IACS). Established in 1913, this standard defined “100% conductivity” based on a specific commercially pure copper.

• Standard Reference: 100% IACS represents a conductivity of 58.0 MS/m (megasiemens per meter).
• Evolution: Modern refining techniques have allowed us to produce copper that actually exceeds this 1913 standard, reaching 101% or even 102% IACS.

For engineers sourcing materials for custom copper busbars, the IACS rating is the first number you should look at. It is the baseline metric of efficiency.

Why Purity Matters

Purity is not just a marketing term; it is a functional requirement. As we introduce impurities into the copper matrix, they act as scattering centers for electrons. This scattering increases electrical resistance, which in turn generates heat ($I^2R$ losses). In high-current applications like data center busbars or EV power distribution units (PDUs), excess heat requires larger cooling systems, adding weight and cost. Therefore, the distinction between 99.90% purity and 99.99% purity is not trivial—it is functional.

Deep Dive: C11000 – Electrolytic Tough Pitch (ETP)

C11000, commonly known as ETP (Electrolytic Tough Pitch) copper, is the workhorse of the electrical industry. If you walk into a standard substation or open a general-purpose electrical panel, the busbars inside are likely made of C11000. It is the most widely used copper grade for electrical applications worldwide.

Chemical Composition and Fabrication

C11000 is refined electrolytically to ensure high purity.

• Copper Content: Minimum 99.90%.
• Oxygen Content: Typically ranges from 0.02% to 0.04% (200-400 ppm).

The presence of oxygen in the form of Cuprous Oxide (Cu₂O) is intentional to a degree. It acts as a scavenger for other impurities during the refining process, ensuring that the conductive matrix remains relatively pure. This makes C11000 an incredibly cost-effective solution that still delivers exceptional performance.

Key Advantages of C11000

1. High Conductivity: C11000 consistently meets the 100% IACS rating, making it perfectly adequate for 90% of general electrical applications.
2. Cost-Efficiency: Because the refining process is less intensive than oxygen-free grades, C11000 is significantly cheaper per kilogram. For large-scale projects requiring tons of copper, this price difference is a decisive factor.
3. Availability: It is universally available. Whether you are sourcing in Asia, Europe, or the Americas, C11000 is a stock item.

The Achilles Heel: Hydrogen Embrittlement

Despite its popularity, C11000 has a fatal flaw known as Hydrogen Embrittlement.

When ETP copper is heated above 400°C (752°F) in an atmosphere containing hydrogen (such as during brazing, welding, or annealing in reducing atmospheres), the hydrogen atoms diffuse into the copper. These atoms react with the internal cuprous oxide (Cu₂O) to form steam (H₂O).

This steam creates immense internal pressure, causing the copper to crack and form voids along the grain boundaries. This effectively destroys the mechanical integrity of the busbar.

JUMAI TECH Note: If your manufacturing process involves extensive welding or brazing, or if the component will operate in a reducing atmosphere, C11000 is strictly forbidden.

Deep Dive: C10100 – Oxygen-Free Electronic (OFE)

At the other end of the spectrum lies C10100, the aristocrat of copper alloys. Known as OFE (Oxygen-Free Electronic), this is the highest grade of copper commercially available for standard industrial use. It represents the pinnacle of refining technology.

Chemical Composition and Purity

C10100 is produced in a strictly controlled oxygen-free environment.

• Copper Content: Minimum 99.99%.
• Oxygen Content: Less than 0.0005% (5 ppm).

To achieve the “Electronic” designation, this copper must pass rigorous testing to prove it contains no oxides or impurities that would impede performance. It is often referred to as “4N” copper (Four Nines) in the industry.

Superior Performance Metrics

1. Conductivity: C10100 is rated at a minimum of 101% IACS. While a 1% gain might seem negligible, in high-frequency or high-amperage applications (like superconductors or particle accelerators), this efficiency gain reduces thermal load significantly.
2. Formability: Because there are no oxide inclusions in the grain structure, C10100 is incredibly ductile. It can be deep-drawn, bent, and stamped into complex geometries without the risk of micro-cracking. This makes it the ideal candidate for our Precision Deep-Drawn Components services.
3. Immunity to Hydrogen Embrittlement: With virtually no oxygen content, there is no Cu₂O for hydrogen to react with. You can weld, braze, and anneal C10100 in hydrogen atmospheres without any risk of embrittlement.

Applications for C10100

• Vacuum Electronics: Used in X-ray tubes, magnetrons, and klystrons where outgassing (release of trapped gas) must be zero.
• EV Battery Busbars: Modern EVs require busbars that can withstand extreme vibration and thermal cycling. The superior ductility of C10100 ensures long-term reliability.
• Cryogenics: C10100 maintains its mechanical properties even at near-absolute zero temperatures.

Direct Comparison: The Data

At JUMAI TECH, we believe in data-driven decision-making. Below is a detailed comparison of the physical and chemical properties of these two alloys.

Table 1: Chemical Composition Comparison

Table 2: Mechanical & Electrical Properties

Data sources typically reference ASTM B187 and ASTM B152 standards.

Manufacturing Considerations: Machining and Stamping

As a provider of Precision Stamping Dies and manufacturing services, JUMAI TECH interacts with these materials daily on the shop floor. The machinability and formability of the copper grade dictate the manufacturing strategy.

Stamping and Deep Drawing

When we perform deep drawing—a process where a sheet metal blank is radially drawn into a forming die by the mechanical action of a punch—ductility is paramount.

• C10100 Performance: Its high ductility allows for severe deformation ratios. We can draw C10100 deeper and into tighter radii without “orange peel” effects or tearing. For complex terminal connectors or cup-shaped components, C10100 is the clear winner.
• C11000 Performance: While capable of basic bending and shallow drawing, C11000 struggles with complex, multi-stage deep drawing. The oxide particles can act as stress concentrators, leading to fractures during high-speed stamping operations.

Bending and Springback

Busbars often require intricate bending to navigate the tight confines of an electrical cabinet.

• The Bend Radius Rule: Generally, C10100 can withstand a tighter bend radius (often 0.5t or even 0t, where ‘t’ is thickness) compared to C11000.
• Springback: Both materials exhibit similar springback characteristics, but the consistency of C10100’s grain structure allows for more predictable results in automated CNC bending machines.

Economic Analysis: Is the Premium Worth It?

This is the question every procurement manager asks. C10100 is invariably more expensive than C11000—typically commanding a premium of 15% to 30% depending on market volatility and form factor.

When to Stick with C11000

If your project involves:

1. Standard Switchgear: Main distribution panels where connections are bolted, not welded.
2. Simple Geometries: Flat bars or bars with simple 90-degree bends.
3. Cost Constraints: High-volume consumer goods where every cent counts and the technical requirements are moderate.In these cases, C11000 is the rational, engineering-approved choice. Using C10100 here would be “over-engineering.”

When to Upgrade to C10100

The extra cost is justified (and often saved later in failure prevention) if:

1. Welding is Required: If you are TIG/MIG welding the busbar or brazing with silver solder in a furnace.
2. Extreme Efficiency: High-performance EV battery packs where thermal management is critical.
3. Vacuum Environments: Semiconductor manufacturing equipment or aerospace applications.
4. Complex Forming: If the part requires deep drawing or folding back on itself.

At JUMAI TECH, we often advise clients to perform a “Total Cost of Ownership” calculation. If a C11000 part fails during welding and ruins a sub-assembly, the cost of scrap far outweighs the initial savings on raw material.

The Role of Surface Treatment

Regardless of whether you choose C10100 or C11000, raw copper will oxidize over time, turning that characteristic brown/green color. While copper oxide is not conductive, the underlying copper remains functional. However, for contact surfaces, oxidation increases contact resistance.

JUMAI TECH recommends plating solutions for both grades:

• Tin Plating: The most common solution for preventing oxidation and ensuring good electrical contact in standard environments.
• Silver Plating: Used for high-frequency or high-temperature applications. Silver oxide is actually conductive, unlike copper oxide.
• Nickel Plating: Often used as a barrier layer or for corrosion resistance in harsh chemical environments.

Because C10100 has a smoother surface finish due to its high purity, it often takes plating more evenly, resulting in a slightly higher quality finish for cosmetic or high-precision parts.

Industry Case Studies

To further illustrate the differences, let’s look at two distinct scenarios we have encountered at JUMAI TECH.

Case Study A: The Industrial Power Distribution Unit

Client: A manufacturer of large-scale generator sets.

Requirement: 5000A main busbars, bolted connections, air-cooled.

Selection: C11000.

Reasoning: The application relied on mechanical fasteners (bolts/nuts) rather than welding. The cross-sectional area was large enough that the 1% conductivity difference was negligible. The cost savings on 20 tons of copper allowed the client to invest more in the enclosure quality.

Case Study B: The Electric Vehicle Battery Pack

Client: An automotive Tier 1 supplier.

Requirement: Interconnects between battery modules, laser welded tabs, limited space for cooling.

Selection: C10100.

Reasoning: The client utilized laser welding to attach the busbars to the battery cells. C11000 would have risked embrittlement and cracking at the weld joint due to the heat. Furthermore, the high power density of the battery required the absolute maximum conductivity (101% IACS) to minimize heat generation inside the sealed battery pack.

JUMAI TECH: Your Partner in Precision Copper

Choosing the right material is step one. Finding a partner who can process it correctly is step two.

At JUMAI TECH, we don’t just sell parts; we provide solutions. Our facility is equipped with state-of-the-art CNC punching, bending, and machining centers specifically calibrated for copper alloys. We understand the “gummy” nature of pure copper and use specialized tooling to ensure burr-free edges and mirror-like finishes.

Our Capabilities Include:

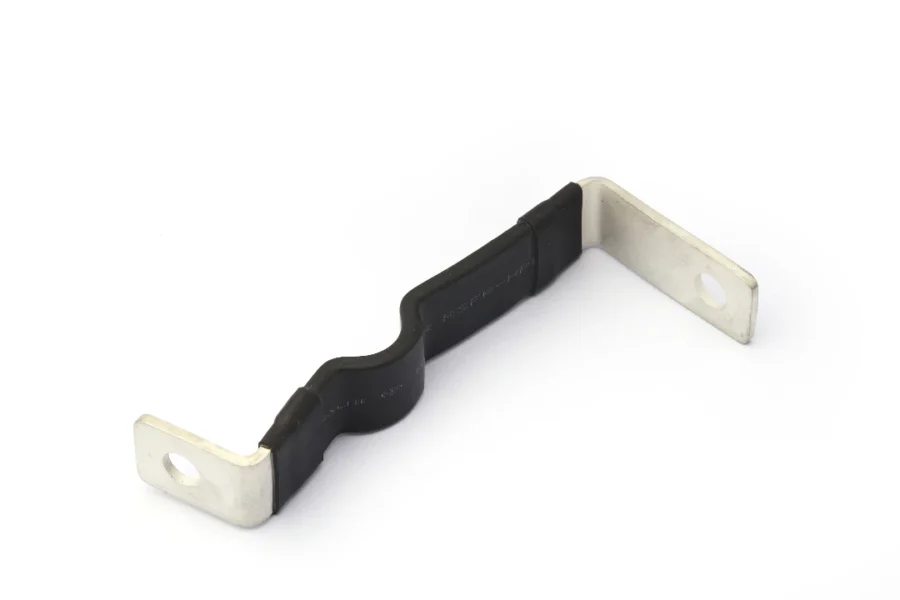

• Custom Copper Busbar Fabrication: From simple flat bars to complex 3D bent shapes using both C11000 and C10100.
• Precision Deep Drawing: Utilizing high-purity C10100 for complex cans, caps, and shields.
• Die Design and Manufacturing: We build our own Progressive Stamping Dies, giving us full control over tolerance and quality.
• Insulation and Coating: We offer PVC dipping, heat shrink sleeving, and epoxy powder coating for busbar insulation.

Quality Assurance

We adhere to strict ISO standards. Every batch of copper we receive undergoes spectral analysis to verify its chemical composition. We ensure that if you pay for C10100, you are getting 99.99% pure copper, not a re-labeled substitute.

Conclusion

The debate between C10100 vs C11000 is not about which material is “better” in the abstract—it is about which material is better for your specific application.

C11000 (ETP) remains the champion of value and general utility. It is reliable, conductive, and available. For the vast majority of standard electrical infrastructure, it is the correct choice.

C10100 (OFE) is the specialist. It offers uncompromising purity, ductility, and weldability. When the environment is harsh, the processing involves heat and hydrogen, or the efficiency targets are extreme, C10100 is the only option.

As the Editor-in-Chief at JUMAI TECH, I have seen projects succeed and fail based on this material selection. We are here to ensure your project succeeds. Whether you need a prototype run of complex C10100 busbars or high-volume production of C11000 power distribution bars, our engineering team is ready to assist.
