The global transition to electric mobility has placed unprecedented demands on battery pack design. As energy densities increase, the internal architecture of EV battery modules must become more compact, reliable, and efficient. At the center of this evolution is the Flexible Busbar. Unlike traditional rigid conductors, flexible busbars (often referred to as laminated busbars or flex-bars) provide the mechanical “breathing room” necessary for high-performance battery systems.
At JUMAI TECH, we have observed that the primary failure points in EV battery packs are often not the cells themselves, but the interconnects that fail under thermal stress or road vibration. This article explores why the flexible busbar is the critical link in modern EV power electronics and how it optimizes the lifespan of battery modules.
Table of Contents

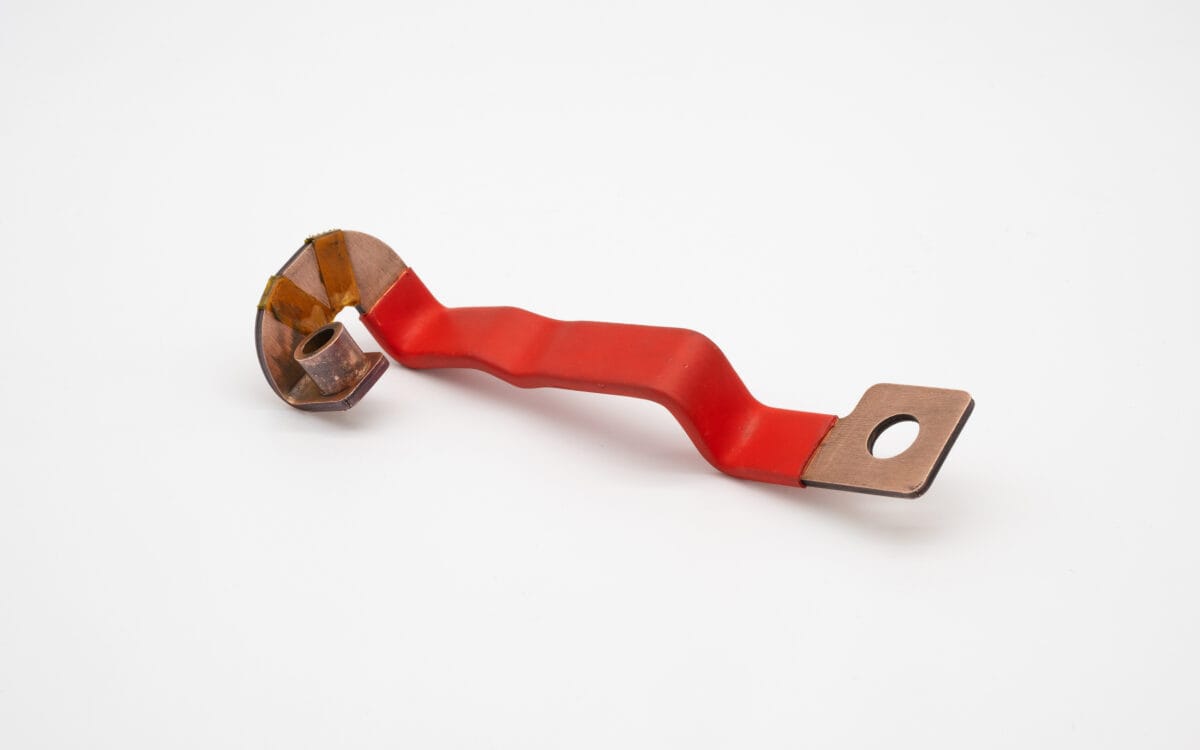

Understanding the Core Technology of Flexible Busbars

To appreciate the value of a flexible busbar, one must first understand its construction. At its core, a flexible busbar is comprised of multiple thin layers of high-conductivity copper or aluminum, bonded at the mounting points but left “free” in the center.
Material Composition and Conductivity
The selection of materials is the first step in ensuring a high-performance EV module. Most high-end flexible busbars utilize Oxygen-Free High Conductivity (OFHC) Copper (C10100 or C10200). This material offers a minimum conductivity of 100% IACS (International Annealed Copper Standard).
- Laminated Foil Construction: By using layers of foil ranging from 0.1mm to 0.5mm in thickness, we achieve a conductor that can handle hundreds of amps while remaining pliable.
- Aluminum Alternatives: For weight-sensitive applications, 1050 or 6061 aluminum alloys are used, though they require larger cross-sectional areas to match the current-carrying capacity of copper.
The Role of Diffusion Welding and Press Welding
The “magic” of a flexible busbar happens at the ends. At JUMAI TECH, we utilize Molecular Diffusion Welding. This process uses high temperature and pressure to cause the copper molecules to intermingle across the foil layers without the need for filler metal or solder.
- Solid Connection Points: The ends become a solid block of copper, ensuring the lowest possible contact resistance (Rcontact).
- Flexibility Zone: The middle section remains a stack of independent foils, allowing the busbar to bend, twist, and absorb movement without work-hardening the metal.
Why EV Battery Modules Require Flexibility
EV battery packs are dynamic environments. They are not static boxes; they expand during charging (thermal expansion) and contract during cooling. Furthermore, they are subjected to constant G-forces and high-frequency vibrations from the road.
Managing Thermal Expansion and Contraction
During rapid DC charging, battery cells generate significant heat. According to research from the Society of Automotive Engineers (SAE), battery temperatures can fluctuate by over 40°C in a single cycle.
- Stress Mitigation: A rigid busbar would exert immense mechanical pressure on the battery terminals as the pack expands. This can lead to cracked ceramic seals or internal cell damage.
- Compensation: Flexible busbars act like a bellows, absorbing the change in distance between cells without transferring stress to the fragile battery poles.

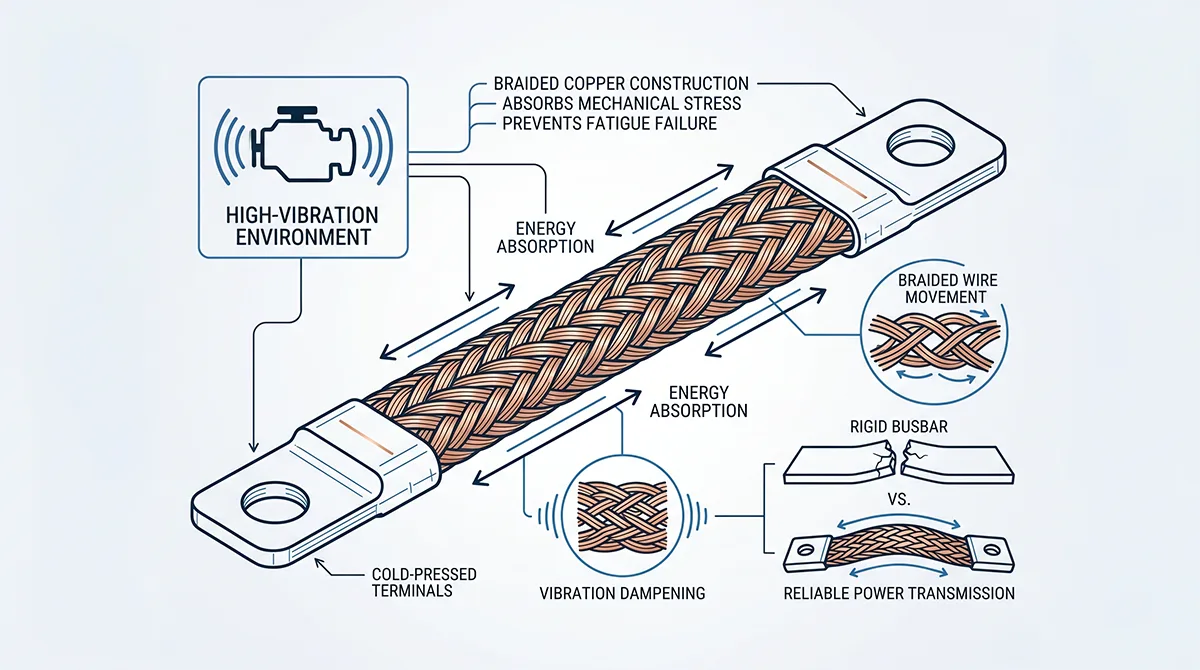

Vibration Damping and Longevity
Automotive standards like ISO 16750-3 dictate rigorous vibration testing for electronics. Rigid busbars are prone to fatigue cracking at the bolt holes or weld points over the 10-to-15-year lifespan of a vehicle.
- Damping Properties: The multi-layered structure of a flexible busbar naturally damps harmonic vibrations. Each layer slips slightly against the next, dissipating energy rather than snapping under tension.
- Impact Resistance: In the event of a minor collision, flexible interconnects are less likely to shear off, maintaining the electrical integrity of the pack and preventing high-voltage arcing.

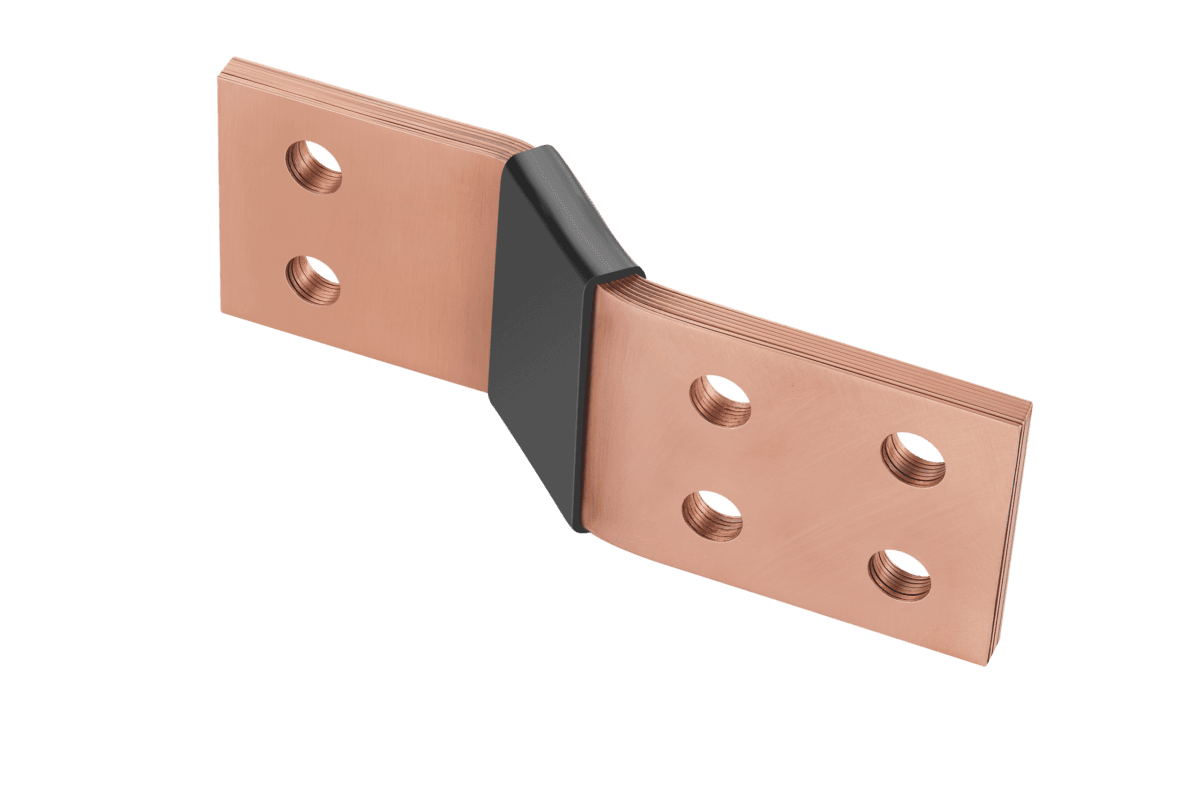

Performance Metrics: Flexible vs. Rigid Busbars

When designing an EV platform, engineers must justify the use of flexible components over cheaper rigid strips. The following data highlights the technical superiority of flexible solutions in high-current environments.
Electrical Efficiency Comparison
The skin effect and thermal dissipation play a massive role in high-current AC or pulsed DC environments. Because flexible busbars have a higher surface-area-to-volume ratio due to the multiple layers, they often run cooler than a single solid bar of the same cross-section.
| Feature | Rigid Copper Bar | Flexible Laminated Busbar |
| Current Capacity | Standard | Higher (Better heat dissipation) |
| Vibration Resistance | Low (Susceptible to fatigue) | Exceptional (Multi-layer damping) |
| Installation Ease | Difficult (Requires precise alignment) | Easy (Compensates for tolerances) |
| Weight Efficiency | Poor | Optimized |
| Space Requirement | High (Needs clearance for movement) | Low (Can be tightly routed) |
Voltage Drop and Resistance Data
Minimizing voltage drop (V = I \times R) is essential for maximizing the range of an EV. For a typical 400V system drawing 300A, even a micro-ohm increase in resistance can lead to significant power loss.
- Calculated Resistance: A 100mm flexible busbar with a cross-section of 50mm2 typically exhibits a resistance of approximately 35\mu\Omega at 20°C.
- Consistency: Because our diffusion welding creates a homogenous molecular bond, the resistance at the terminal is identical to the base material, preventing “hot spots” that occur in crimped or soldered joints.
Insulation and Safety Standards
In an EV battery module, space is at a premium. Busbars often sit millimeters away from the grounded metal casing or other phases. Therefore, high-performance insulation is not optional—it is a life-safety requirement.
Advanced Coating Materials
At JUMAI TECH, we utilize specialized insulation to ensure dielectric strength while maintaining flexibility.
- PVC Heat Shrink: The most common and cost-effective solution, rated for 105°C.
- PA12 (Nylon) Coating: Often applied via fluidized bed dipping, PA12 offers superior abrasion resistance and a higher temperature ceiling, which is vital for high-performance “Ludicrous” mode discharges.
- TPE/Silicone: Used in ultra-flexible applications where the busbar must navigate extremely tight radii.
Meeting Global Safety Standards
To be used in the global market, flexible busbars must comply with international electrical and fire safety standards.
- UL 94V-0: This is the “gold standard” for flame retardancy. It ensures that the insulation will self-extinguish within 10 seconds and will not drop flaming particles.
- IEC 60664-1: This standard governs insulation coordination for equipment within low-voltage systems, ensuring that creepage and clearance distances are maintained to prevent arcing.
- RoHS and REACH Compliance: Ensuring that no hazardous substances like lead or hexavalent chromium are used in the plating or insulation process, facilitating easier recycling at the end of the vehicle’s life.

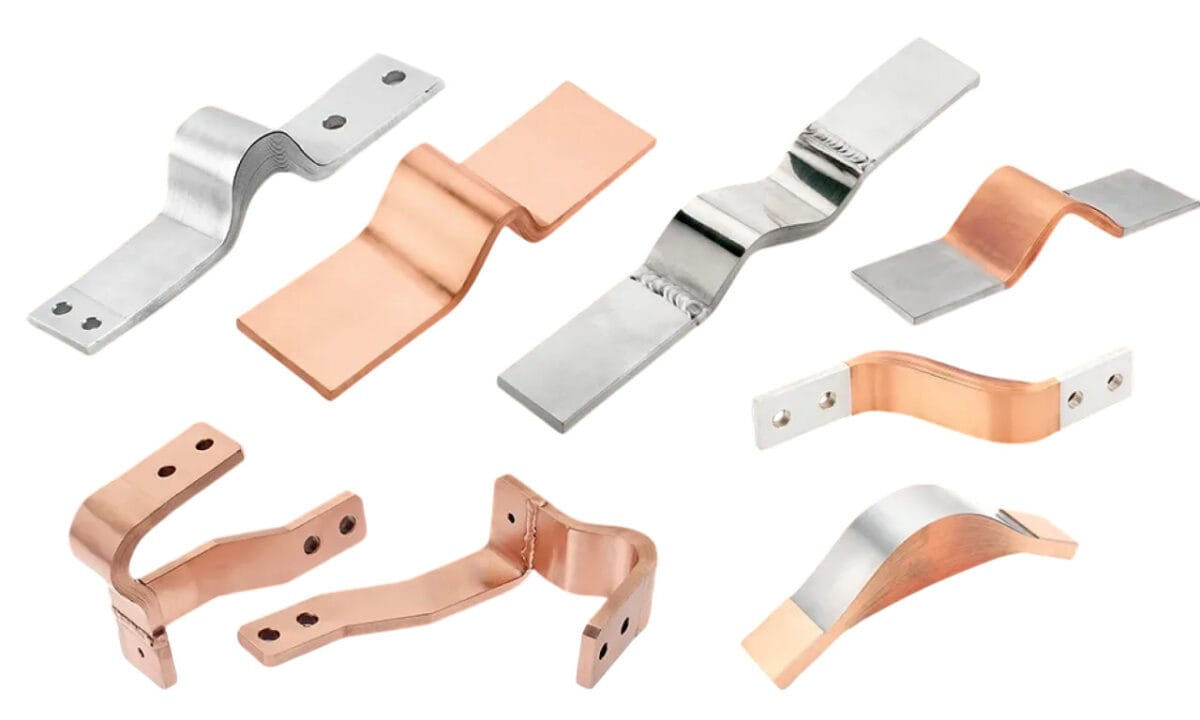

Design Customization for Modern EV Packs

No two battery packs are identical. Cylindrical cells (like 21700 or 4680), prismatic cells, and pouch cells each require a unique busbar geometry.
Adapting to Cell Form Factors
- Cylindrical Cells: Flexible busbars are often designed with “finger” extensions that can be laser-welded to the caps of multiple cells in parallel.
- Prismatic Cells: These usually feature large threaded terminals. Flexible busbars for prismatic cells often include an “S-bend” or “U-flex” to allow for cell swelling (breathing) during the charge/discharge cycle.
Integration of Integrated Circuits (IC) and Sensing
The modern busbar is becoming “smart.” We are increasingly integrating voltage sensing wires and thermistors directly into the busbar assembly.
- BMS Connectivity: By adding small signal pins or flexible printed circuits (FPC) to the busbar, we allow the Battery Management System (BMS) to monitor the health of every cell group without a separate, bulky wiring harness.
- Space Saving: This “all-in-one” approach reduces the bill of materials (BOM) for the OEM and simplifies the automated assembly of the battery pack.
Technical Specifications and Tolerances
Precision is the hallmark of JUMAI TECH. When manufacturing for companies like Tesla, BYD, or Lucid, “close enough” isn’t an option.
Dimensional Accuracy
In automated assembly lines, robotic arms expect parts to be within microns of their specified locations.
- Hole Alignment: We maintain a tolerance of 0.1mm on hole-to-center distances.
- Thickness Control: For laminated foils, the total thickness of the stack is monitored to ensure it fits within the specified housing or connector.
Surface Plating Options
To prevent oxidation and improve weldability/solderability, we offer several plating finishes:
- Tin Plating: The industry standard for corrosion resistance and cost-effectiveness.
- Nickel Plating: Provides a harder surface and better performance in high-temperature environments.
- Silver Plating: Offers the lowest contact resistance and is preferred for ultra-high-power connections where efficiency is the absolute priority.

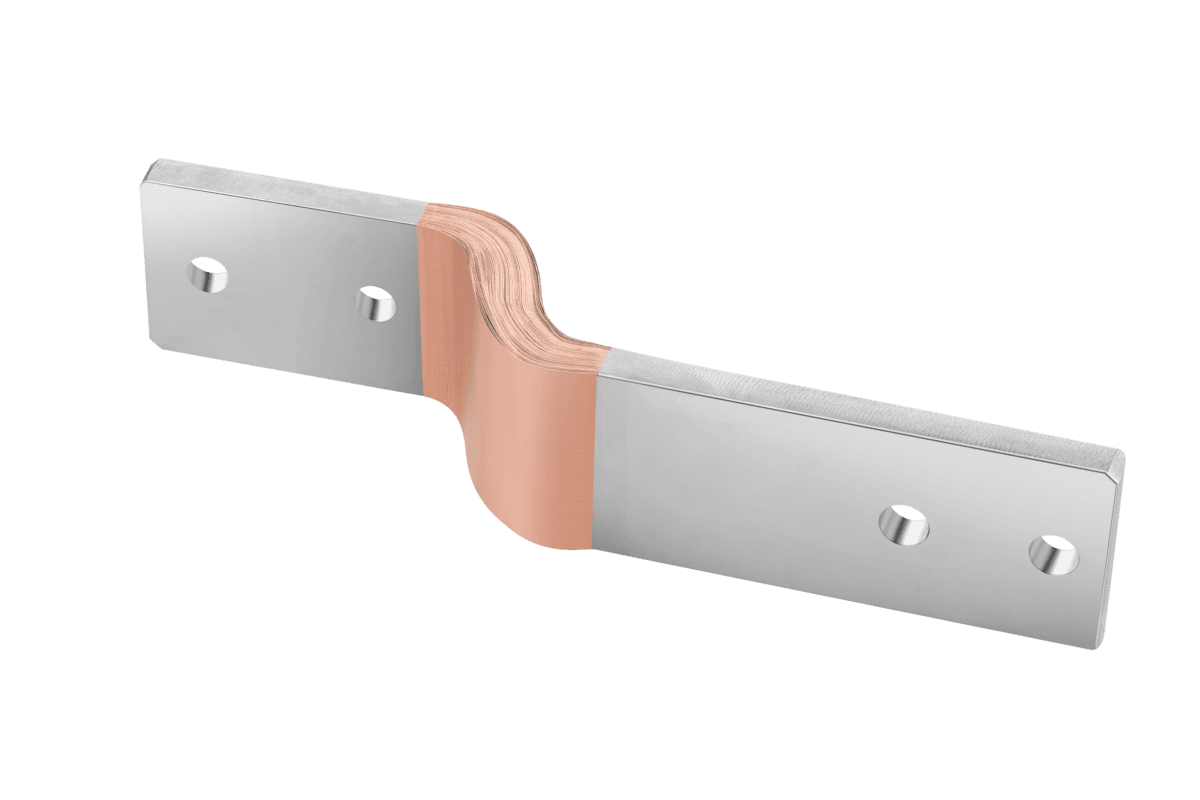

Advanced Manufacturing Processes: Precision at the Molecular Level

Manufacturing a flexible busbar that meets automotive grade (AEC-Q equivalent) is a feat of high-precision engineering. At JUMAI TECH, we don’t just assemble parts; we manipulate material properties to achieve maximum conductivity and durability.
Molecular Diffusion Welding: The Gold Standard
The most critical phase of production is the bonding of the laminated ends. While many Tier-2 suppliers use simple crimping, we utilize Molecular Diffusion Welding.
- The Science: This process involves placing the copper foil stack under high vacuum and intense pressure at temperatures just below the melting point. Atoms migrate across the interface of each foil, creating a single, homogenous block of copper at the terminal.
- Zero Interface Resistance: Because there is no filler metal or solder involved, the joint has the exact same electrical resistance as the base copper. This eliminates the “bottleneck” effect where heat usually builds up in traditional connectors.
- Structural Integrity: The transition zone—where the solid welded end meets the flexible foils—is carefully engineered to prevent stress concentrations, ensuring the busbar can withstand millions of vibration cycles.
Precision CNC Forming and 3D Bending
Modern EV battery packs, such as those found in cell-to-pack (CTP) designs, require busbars to navigate tight, three-dimensional spaces.
- Multi-Axis Bending: We use automated CNC bending machines that account for the “spring-back” effect of multi-layered copper. This ensures that every part fits perfectly into the battery module housing without forcing the robotic assembly arms to adjust.
- Tolerance Management: In the automotive world, millimeters matter. We maintain a linear tolerance of 0.2mm and hole-positioning tolerances of 0.1mm, facilitating seamless integration for automated production lines.
Quality Control: Ensuring 15 Years of Reliability
An EV is expected to last over a decade in environments ranging from Siberian winters to Saharan summers. Our testing protocols at JUMAI TECH are designed to simulate the worst possible conditions.
Electrical and Thermal Validation
Before any design is approved for mass production (SOP), it undergoes a battery of electrical stresses.
- Continuous Current & Temp-Rise: We subject the busbar to 120% of its rated current while monitoring thermal dissipation using infrared thermography. This ensures the insulation remains within its thermal class (e.g., Class F or H).
- Partial Discharge Testing: For 800V and 1000V systems, micro-bubbles in insulation can lead to “corona discharge,” which eats away at the material over time. Our testers detect these pC (pico-Coulomb) level discharges to ensure long-term dielectric health.
- High-Pot Testing: Every single unit is tested at a voltage of 2U + 1000V (where U is the operating voltage) to ensure there are no leakage paths.
Environmental and Mechanical Stress Tests
The road is a brutal environment. According to standards like ISO 16750, components must endure:
- Salt Spray Exposure: We perform up to 720 hours of Neutral Salt Spray (NSS) testing to ensure our tin or silver plating protects the copper core from galvanic corrosion.
- Vibration Fatigue: Using electrodynamic shakers, we subject the flexible busbars to random vibration profiles that mimic gravel roads and high-speed highway driving. The multi-layer design must show zero signs of foil cracking or weld separation.
| Test Parameter | Industry Standard | JUMAI TECH Benchmarks |
| Tensile Strength | Min 200 MPa | > 240 MPa (C10100 Annealed) |
| Flammability | UL 94V-0 | V-0 (Self-extinguishing < 10s) |
| Operating Temp | -40℃ to +125℃ | -50℃ to +150℃ |
| Bending Cycles | 1,000 Cycles | > 5,000 Cycles (at 90 degrees) |

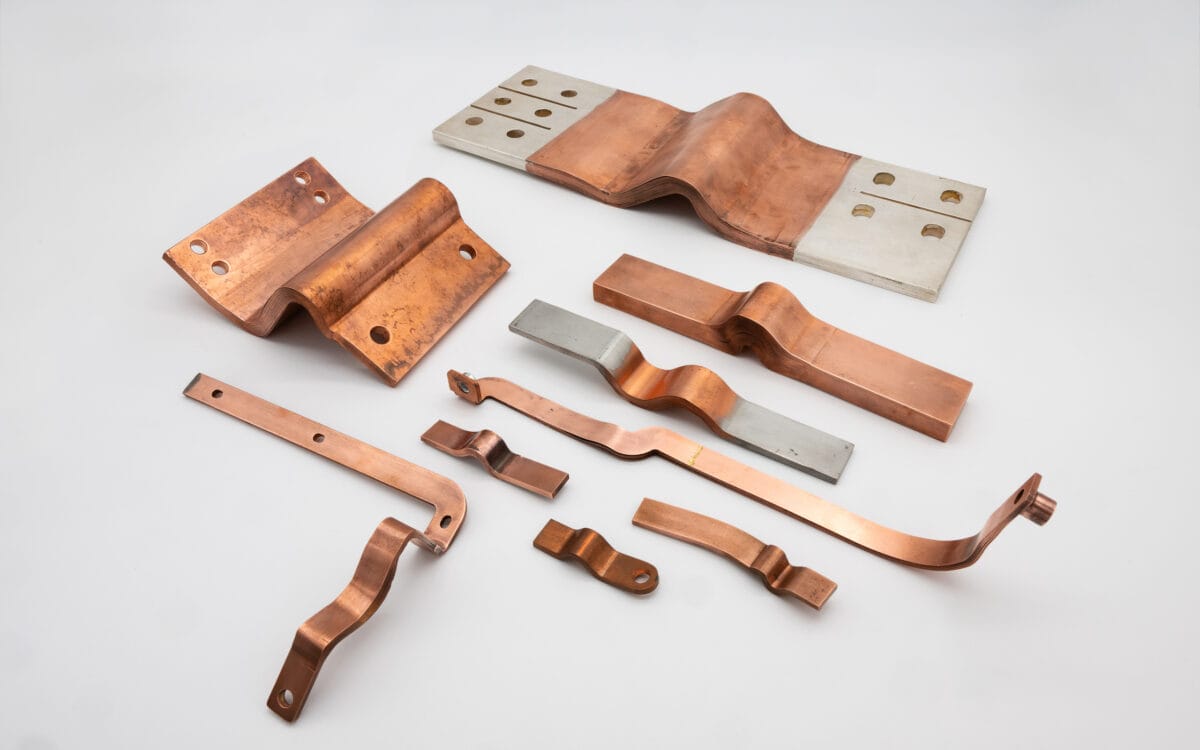

The Shift to 800V Architectures and Beyond

As the industry moves toward “Ultra-Fast Charging,” the demands on the Flexible Busbar for EV Battery Modules are shifting. Higher voltages mean lower currents for the same power output, but they also mean stricter requirements for “creepage” and “clearance” distances.
Optimizing for High-Voltage Safety
In an 800V system, the air itself can become a conductor if the gap between components is too small.
- Increased Creepage Tracks: We design our flexible busbars with specialized insulation overhangs and “ribbed” geometries to increase the surface distance between polarities, preventing tracking failures.
- Advanced Epoxy Coating: For the most compact modules, we use fluidized bed epoxy coating. This provides a continuous, high-dielectric barrier that is thinner than heat-shrink tubing but significantly more durable.
Lightweighting: The Copper-Aluminum Hybrid
Weight is the enemy of range. At JUMAI TECH, we are pioneering the use of bi-metal flexible busbars.
- Aluminum for Mass: The main body of the busbar is made of high-grade aluminum foils to reduce weight by up to 50%.
- Copper for Connection: We cladding-weld copper “patches” onto the connection points. This allows the busbar to benefit from aluminum’s lightness while maintaining the superior contact reliability of copper-to-copper interfaces at the battery terminal.
Supply Chain Integrity and Global Compliance
As a partner to global OEMs, JUMAI TECH adheres to the strictest international regulations regarding material sourcing and environmental impact.
Conflict-Free Sourcing and REACH/RoHS
We guarantee that all minerals used in our precision stamping and busbar production are sourced from verified, conflict-free smelters. This is in accordance with the OECD Due Diligence Guidance.
- Environmental Stewardship: Our production facility operates a closed-loop water filtration system for our plating lines, and we are moving toward 100% recyclable insulation materials.
- Traceability: Every batch of flexible busbars comes with a full material report, providing transparency from the raw copper cathode to the finished automotive component.
Partnering with JUMAI TECH for the EV Revolution
The Flexible Busbar for EV Battery Modules is no longer a simple “commodity” part. It is a highly engineered safety component that directly impacts the vehicle’s range, charging speed, and long-term reliability.
At JUMAI TECH (deepdrawtech.com), we combine our decades of experience in Deep-Drawn Components and Precision Stamping with cutting-edge flexible interconnect technology. We provide a one-stop-shop for EV manufacturers looking for:
- Custom Engineering: From initial FEA thermal simulation to final DFM (Design for Manufacturing) optimization.
- Scalable Production: Whether you need 100 units for a prototype or 1,000,000 units for a global platform.
- Uncompromising Quality: Automotive-grade testing and full PPAP documentation for every project.
As the electric vehicle landscape continues to evolve, your power distribution system must be ready for the challenge. Choose the flexibility, reliability, and expertise of JUMAI TECH.
