The global transition toward renewable energy has fundamentally accelerated the deployment of advanced energy storage solutions. As wind and solar power generation scale up to meet climate goals, the intermittency of these energy sources necessitates robust, highly efficient storage mechanisms. At the forefront of this revolution are Battery Energy Storage Systems (BESS). However, the internal architecture of these massive storage networks is incredibly complex. While much of the industry focuses on battery cell chemistry and intelligent software management, the physical lifelines connecting these modules—the electrical interconnects—often dictate the overall reliability, safety, and efficiency of the system.
For engineers, procurement managers, and facility operators, understanding the nuances of power transmission within a BESS is critical. Standard rigid connections are increasingly proving inadequate for the dynamic, high-stress environments of modern energy storage. This is where Flexible Copper Busbars emerge as a non-negotiable component for system optimization.
As a leading manufacturer specializing in custom soft, hard, and braided copper busbars, as well as precision deep drawing processing molds, JUMAI provides the global market with the foundational connectivity infrastructure required for next-generation energy systems. Drawing on years of experience in green energy, data center infrastructure, and large-scale transmission networks, this comprehensive guide explores the pivotal role of flexible copper busbars in modern energy storage.
Table of Contents

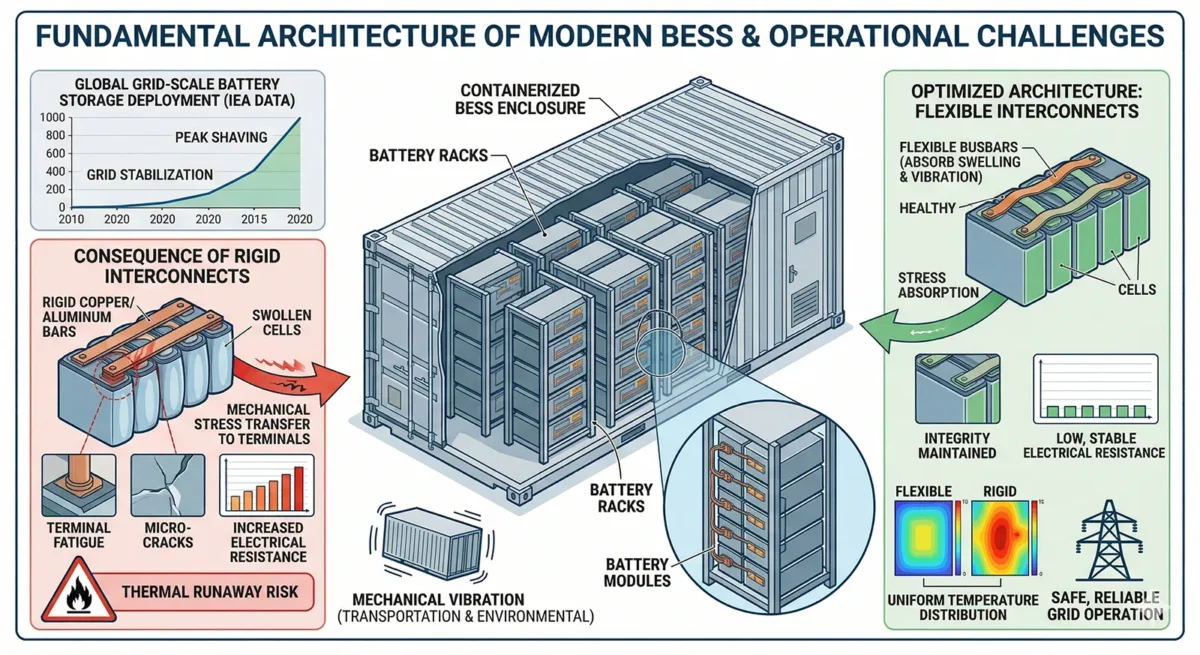

The Fundamental Architecture of Modern BESS
To appreciate the necessity of specialized interconnects, one must first understand the operational realities of a Battery Energy Storage System. According to insights from the International Energy Agency (IEA), the deployment of grid-scale battery storage is growing exponentially to support grid stabilization and peak shaving.
A typical BESS consists of thousands of individual battery cells arranged into modules, which are then grouped into racks. These racks are housed in massive enclosures or containers. During operation—specifically during rapid charging and discharging cycles—these systems handle immense electrical currents. This electrical activity generates significant heat, causing the battery cells to expand and contract (a phenomenon known as cell swelling). Furthermore, containerized BESS units are subjected to mechanical vibrations during transportation to installation sites and environmental vibrations (such as seismic activity or nearby industrial operations) once deployed.
When rigid copper or aluminum bars are used to connect these expanding and vibrating modules, the mechanical stress is transferred directly to the battery terminals. Over time, this stress leads to terminal fatigue, micro-cracks, increased electrical resistance, and ultimately, catastrophic failure such as thermal runaway.

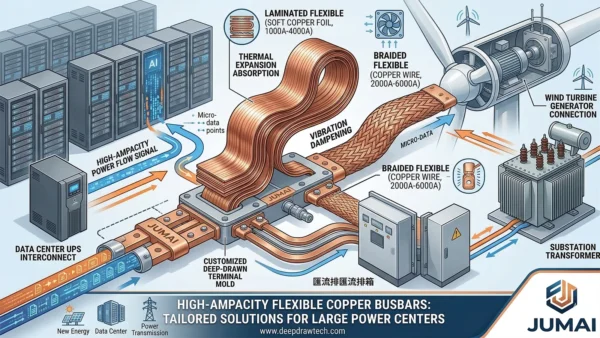

What Are Flexible Copper Busbars?
Flexible copper busbars are engineered electrical conductors designed to transmit high currents while offering superior mechanical flexibility. Unlike their rigid counterparts, which are machined from solid blocks or sheets of metal, flexible busbars are manufactured using multi-layered or woven techniques.
At JUMAI, we manufacture several variations of these critical components to serve different engineering requirements:
- Braided Copper Busbars: Constructed from thousands of finely woven copper wires, these busbars offer maximum multi-directional flexibility. They are exceptional at absorbing high-frequency vibrations and accommodating complex, tight-angle routing within cramped battery enclosures.
- Laminated Flexible Busbars: Created by stacking multiple thin layers of highly conductive copper foil and fusing them at the mounting ends using advanced diffusion welding or electron beam welding technologies. The middle section remains unfused, allowing the layers to slide independently, providing excellent flexibility in one or two planes.
By utilizing high-purity oxygen-free copper (OFC), these components achieve optimal electrical conductivity while neutralizing the mechanical stresses that threaten BESS integrity.

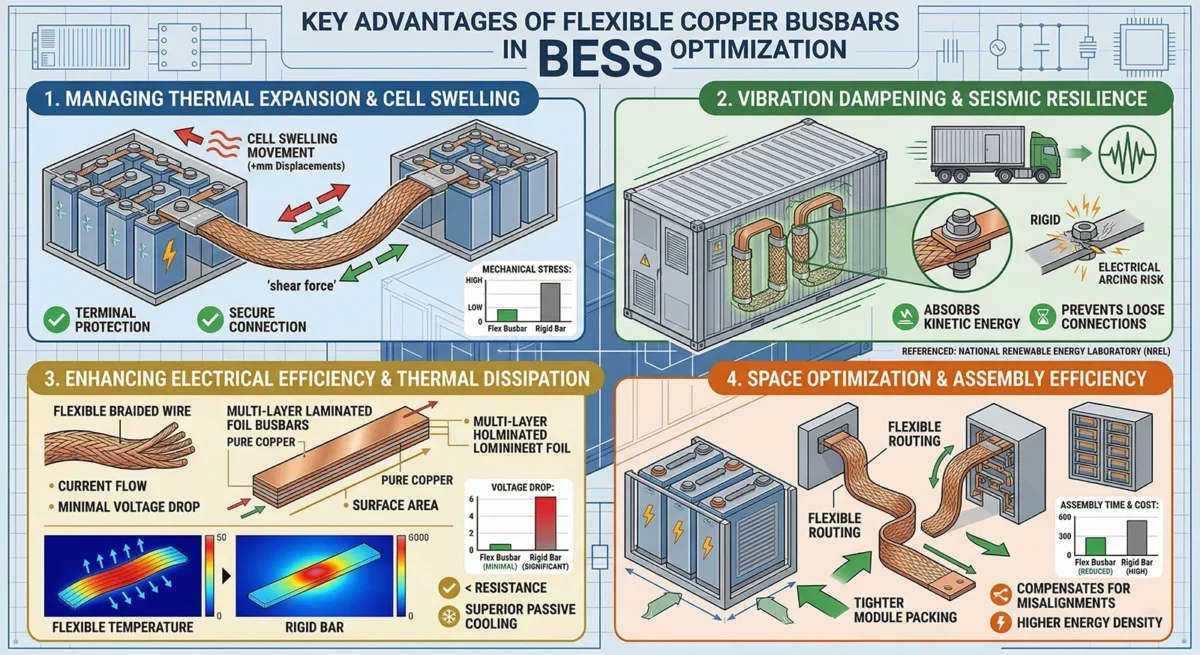

Key Advantages in BESS Optimization
The integration of custom flexible copper busbars into a BESS architecture is not merely a design preference; it is an engineering necessity that directly impacts the system’s lifespan and safety profile.
1. Managing Thermal Expansion and Cell Swelling
During the charge and discharge cycles of lithium-ion batteries, chemical reactions cause the cells to physically expand. Over the lifespan of a battery module, this swelling can result in several millimeters of displacement. Flexible copper busbars act as mechanical shock absorbers. They flex and yield to the battery’s movement, ensuring that the electrical connection remains secure without applying destructive shear forces to the fragile battery terminals.
2. Vibration Dampening and Seismic Resilience
Utility-scale BESS installations are often located in diverse geographical regions, including earthquake-prone zones. Additionally, mobile energy storage systems face constant transit shocks. Research compiled by the National Renewable Energy Laboratory (NREL) emphasizes the importance of structural integrity in renewable energy infrastructure. The woven or layered structure of flexible busbars inherently dampens kinetic energy, preventing vibrations from loosening bolted connections and reducing the risk of hazardous electrical arcing.
3. Enhancing Electrical Efficiency and Thermal Dissipation
High-purity copper is the gold standard for electrical conductivity, second only to silver among practical engineering materials. Flexible copper busbars minimize electrical resistance, thereby reducing energy loss (voltage drop) during transmission. Furthermore, the increased surface area of braided wire or separated laminated foils allows for superior passive cooling. Better heat dissipation prevents localized hot spots, enhancing the overall thermal management of the BESS.
4. Space Optimization and Assembly Efficiency
Energy density is a primary metric in BESS design. Manufacturers are constantly trying to fit more battery modules into smaller footprints. Flexible busbars can be bent, twisted, and routed through confined spaces and complex geometries where rigid bars simply cannot fit. This flexibility allows for tighter module packing. From an assembly standpoint, flexible components compensate for manufacturing tolerances and misalignment during installation, drastically reducing assembly time and labor costs.
Empirical Data: Flexible vs. Rigid Interconnects
To quantify the benefits of transitioning from traditional rigid bars to engineered flexible solutions, we have compiled industry-standard performance metrics. The following table illustrates the comparative advantages based on standard high-capacity BESS operating conditions.
| Performance Metric | Traditional Rigid Copper Busbars | JUMAI Custom Flexible Copper Busbars | System Impact in BESS |
|---|---|---|---|
| Vibration Tolerance | Low (Transfers stress to terminals) | Very High (Absorbs kinetic energy) | Prevents terminal fracture and connection loosening. |
| Thermal Expansion Accommodation | Poor (Rigid structure resists movement) | Excellent (Flexes with cell swelling) | Extends the physical lifespan of battery modules. |
| Space Utilization | Requires linear, unobstructed routing | Highly adaptable to complex routing | Increases overall energy density of the container. |
| Installation Tolerance | Requires exact precision; unforgiving | Forgiving of structural misalignments | Reduces assembly time and lowers manufacturing costs. |
| Thermal Dissipation | Standard surface area | Enhanced surface area (foils/braids) | Lowers operating temperature, increasing efficiency. |
| Electrical Resistance Stability | Degrades if vibrations loosen bolts | Stable over long-term dynamic use | Maintains high transmission efficiency. |
Technical Specifications and Sizing for Engineers
Designing the electrical pathways for a BESS requires precise calculations to ensure safety and efficiency under peak loads. The current carrying capacity (ampacity) of a flexible copper busbar is dictated by its cross-sectional area, ambient temperature, and allowable temperature rise.
According to data from the Copper Development Association (CDA), pure copper maintains exceptional conductivity even under extreme conditions. JUMAI utilizes T2 or equivalent high-purity copper (99.9% Cu) to ensure maximum performance.
Below is a reference guide for the current carrying capacity of standard laminated flexible copper busbars (Assuming an ambient temperature of 40°C and an allowable temperature rise of 50°C). Note: Actual sizing must account for specific BESS ventilation, duty cycles, and short-circuit fault ratings.
| Cross-Sectional Area (mm2) | Foil Thickness x Width x Layers | Approximate Ampacity (Amps) | Typical BESS Application |
|---|---|---|---|
| 50 | 0.1mm x 50mm x 10 | 250 A | Module-to-Module Connections |
| 100 | 0.1mm x 50mm x 20 | 400 A | Rack-Level Interconnections |
| 200 | 0.1mm x 100mm x 20 | 650 A | Rack-to-Combiner Box |
| 400 | 0.2mm x 100mm x 20 | 1100 A | Combiner Box to Inverter (PCS) |
| 800 | 0.3mm x 120mm x 22 | 1800 A | Main DC Bus / High Output Terminals |
Surface Treatments: Engineering for Longevity
Bare copper, while highly conductive, is susceptible to oxidation and corrosion when exposed to humidity, airborne chemicals, or varying temperatures. In a BESS environment designed to operate for 15 to 20 years, safeguarding the interconnects is paramount to maintaining low contact resistance.
JUMAI provides advanced surface treatments customized for specific environmental deployments:
- Tin Plating: The most common and cost-effective anti-corrosion treatment. Tin prevents copper oxidation and ensures stable contact resistance over time, making it ideal for standard utility-scale battery enclosures.
- Silver Plating: Used for high-end, ultra-low resistance applications. Silver provides superior conductivity at the contact points, heavily reducing voltage drops in high-current scenarios, frequently utilized in specialized aerospace or highly sensitive data center BESS backups.
- Nickel Plating: Chosen for extreme environmental conditions involving high temperatures or corrosive industrial atmospheres, providing exceptional hardness and wear resistance.

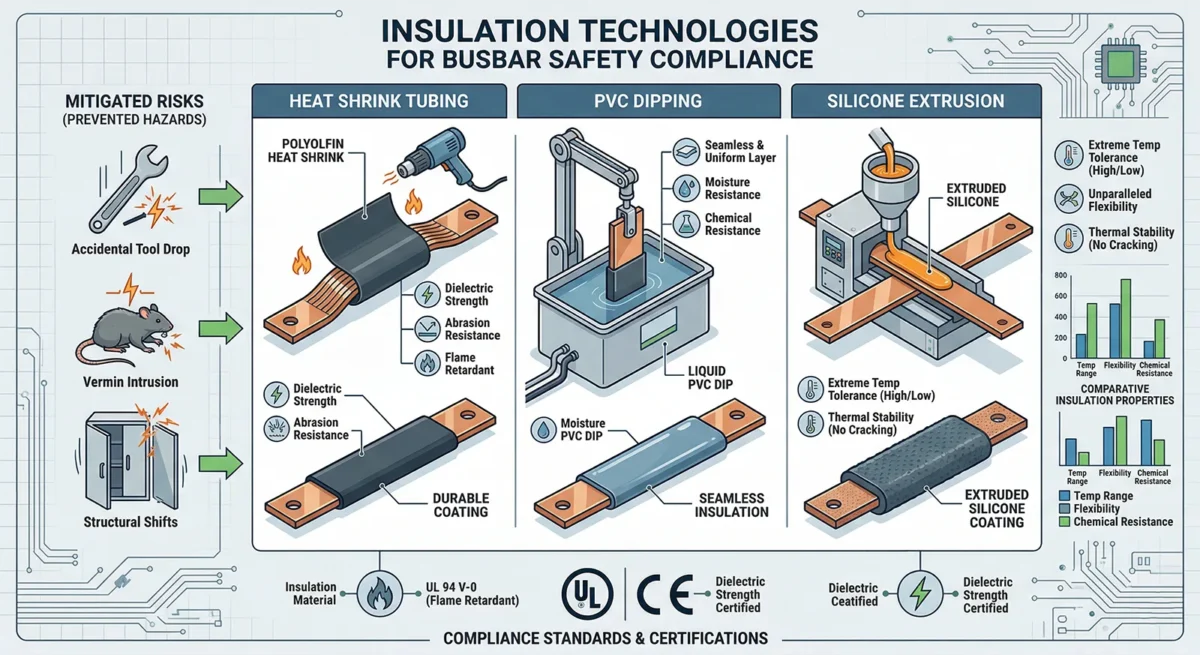

Insulation Technologies for Safety Compliance
Safety is the absolute priority in energy storage. High-voltage DC systems present severe arc flash and electrocution hazards. Flexible copper busbars must be properly insulated to prevent short circuits caused by accidental tool drops, vermin intrusion, or structural shifts.
We apply various insulation materials based on client specifications and UL/CE compliance requirements:
- Heat Shrink Tubing: A highly durable, flame-retardant polyolefin tubing applied over the flexible section of the busbar. It provides excellent dielectric strength and is resistant to abrasion.
- PVC Dipping: The flexible busbar is dipped into liquid polyvinyl chloride, creating a seamless, uniform insulation layer that is highly resistant to moisture and chemicals.
- Silicone Extrusion: For environments requiring extreme temperature tolerance (both high and low), silicone provides unparalleled flexibility and thermal stability, preventing the insulation from cracking over time.
The JUMAI Advantage: Manufacturing Excellence
Integrating the right flexible interconnects requires a manufacturing partner capable of precision engineering and massive scale. At JUMAI, our production ecosystem is built around the exact needs of the global power sector.
Precision Deep Drawing Molds and Accessories
Beyond standard busbars, BESS architectures often require highly specialized mounting brackets, shielding enclosures, and structural accessories. JUMAI’s core competency in deep drawing processing molds allows us to design and stamp custom metal accessories with microscopic precision. Deep drawing is a sheet metal forming process where a metal blank is radially drawn into a forming die by the mechanical action of a punch. This process creates strong, seamless structural components that seamlessly integrate with our flexible busbars, providing a unified, customized hardware solution for any energy storage enclosure.
Molecular-Level Welding Technologies
The weakest point of any electrical connection is the joint. JUMAI employs advanced diffusion welding (press welding) to manufacture our laminated busbars. Under immense pressure and heat, the individual copper foils fuse at a molecular level without the need for filler metals or solder. This results in a solid mounting terminal that behaves exactly like a solid block of pure copper, ensuring zero increase in electrical resistance while maintaining the extreme flexibility of the middle section.
Stringent Quality Control and Testing
Every batch of flexible copper busbars destined for a BESS or data center application undergoes rigorous testing. Our QA protocols include:
- Micro-ohm Resistance Testing: To guarantee optimal conductivity.
- Hipot (High Potential) Testing: To verify the dielectric strength of the applied insulation.
- Tensile and Flexural Testing: To ensure the mechanical integrity of the braids and laminated foils under repeated stress.
- Salt Spray Testing: To validate the anti-corrosion properties of our tin and silver platings.

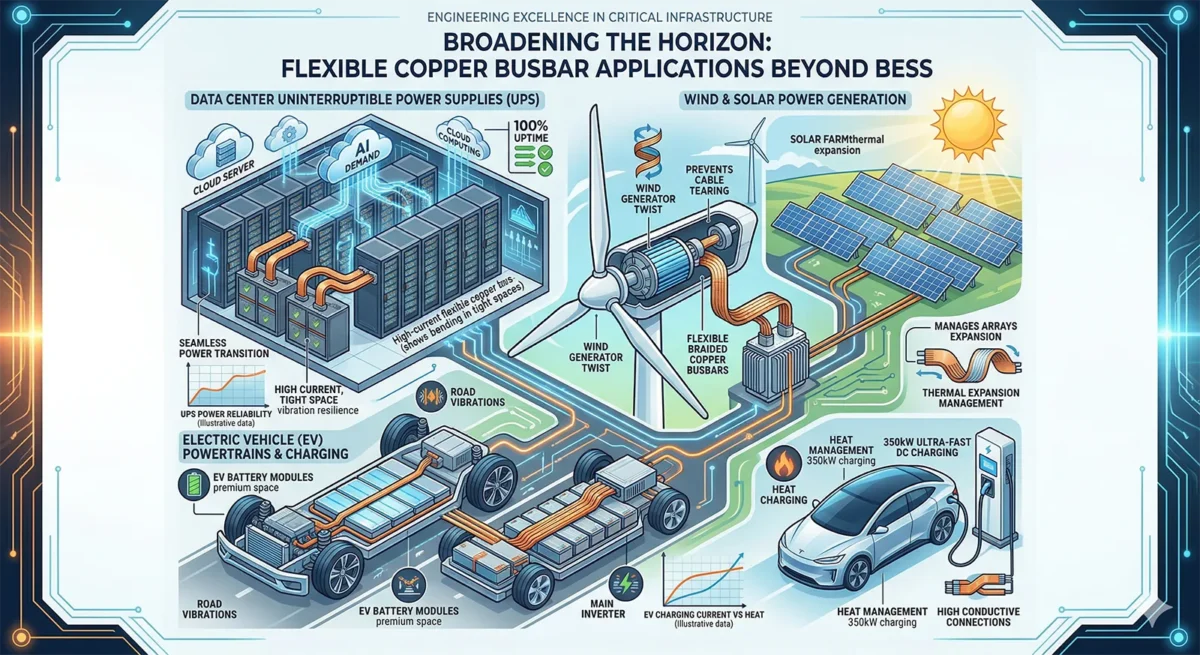

Broadening the Horizon: Beyond BESS
While Battery Energy Storage Systems represent a massive sector for flexible copper busbars, the underlying engineering principles apply equally to other critical infrastructure domains where JUMAI has established deep expertise.
1. Data Center Uninterruptible Power Supplies (UPS)
The explosion of cloud computing and AI requires data centers to maintain 100% uptime. Their massive UPS battery rooms face the exact same challenges of vibration, tight spaces, and high-current demands. Flexible busbars ensure that when the grid fails, the transition to battery power is seamless, efficient, and reliable.
2. Wind and Solar Power Generation
Inside the nacelle of a wind turbine, massive generators twist and vibrate violently. Flexible braided busbars are strictly required to transfer the generated power from the moving generator to the static transformer structures without tearing the electrical cables apart. Similarly, in large-scale solar farms, flexible interconnects manage the thermal expansion of extensive solar arrays baking in the sun.
3. Electric Vehicle (EV) Powertrains and Charging Infrastructure
The automotive industry is fundamentally shifting toward electrification. Inside the battery pack of an EV, space is at an absolute premium, and road vibrations are constant. Flexible laminated busbars are the standard for connecting EV battery modules to the vehicle’s main power inverter. Furthermore, ultra-fast DC charging stations rely on highly conductive flexible connections to manage the intense heat generated during a 350kW charging session.
The Economic Impact on Procurement and Operations
For supply chain leaders and project developers evaluating the Bill of Materials (BOM) for a BESS project, the initial unit cost of a flexible copper busbar is marginally higher than a standard stamped piece of rigid copper. However, the Total Cost of Ownership (TCO) paints a drastically different picture.
By partnering with JUMAI for custom flexible solutions, organizations unlock significant operational savings:
- Reduced Labor Costs: Flexible busbars eliminate the need for precise alignment and heavy tooling during assembly. Technicians can install them rapidly, significantly increasing factory throughput.
- Lower Maintenance Overhead: By eliminating stress fractures on battery terminals, maintenance teams spend less time troubleshooting failing modules and replacing damaged interconnects in the field.
- Mitigated Risk of Catastrophic Failure: A single thermal runaway event caused by a fractured rigid connection can destroy an entire BESS container, resulting in millions of dollars in damages and severe safety liabilities. Flexible busbars act as a cheap insurance policy against mechanical-electrical failures.
Empowering the Future of Energy with JUMAI
The rapid expansion of the global energy storage sector demands engineering solutions that prioritize reliability, safety, and efficiency. As BESS capacities grow from megawatt-hours to gigawatt-hours, the internal connectivity architecture cannot be an afterthought. Flexible copper busbars have proven themselves as the optimal solution for managing the thermal, mechanical, and electrical stresses inherent in these massive power systems.
By bridging the gap between delicate battery chemistry and raw electrical output, these specialized components ensure that the renewable energy captured from the sun and wind is stored safely and deployed efficiently.
At JUMAI, we are committed to driving this transition forward. With our deep-rooted expertise in custom flexible, soft, hard, and braided copper busbars, alongside our industry-leading deep drawing mold capabilities, we provide global clients with bespoke connectivity solutions tailored to their exact specifications. Whether you are engineering a high-density data center backup, a next-generation EV charging network, or a grid-scale Battery Energy Storage System, our team possesses the technical acumen and manufacturing scale to bring your project to life.
