In the modern landscape of electrical engineering and power distribution, the demand for efficiency, flexibility, and durability has never been higher. As industries transition toward renewable energy, electric mobility, and hyperscale data centers, traditional rigid power distribution methods often fall short. This is where the Braided Busbar steps in as a critical component.

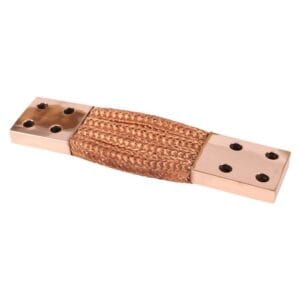

At JUMAI TECH (DeepDrawTech), we have spent decades perfecting the art of precision copper fabrication. We understand that a busbar is not just a piece of metal; it is the lifeline of an electrical system. A braided busbar, specifically, is a flexible conductor made from numerous strands of fine copper wire, braided together and often terminated with solid cold-pressed or solder-dipped ends. Unlike solid copper bars, these components are designed to withstand vibration, accommodate thermal expansion, and fit into tight, complex geometries where rigid bars would simply fail.
Whether you are designing a battery storage system for a solar farm or managing the grounding requirements of a high-voltage transformer, understanding the utility of braided busbars is essential. This comprehensive guide explores their applications, technical advantages, and why they have become the gold standard for flexible power connectivity.
Table of Contents

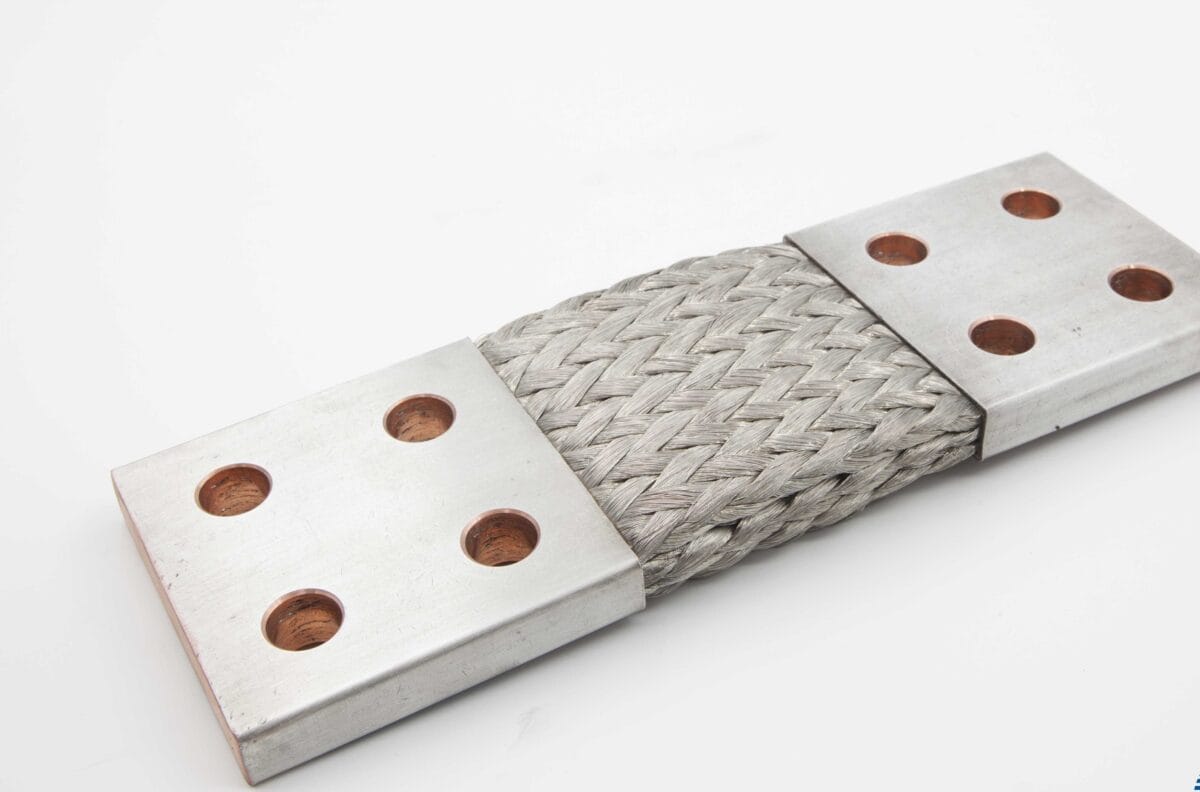

Understanding the Core Mechanics of Braided Busbars
Before diving into specific applications, it is vital to understand what makes a braided busbar unique. At its core, the “braid” is a weave of individual copper wires—typically ranging from 0.05mm to 0.20mm in diameter. By weaving these strands, we create a conductor that possesses the same current-carrying capacity as a solid bar but with a fraction of the stiffness.
The Physics of Flexibility
The primary reason engineers choose braided solutions is to handle multiaxial movement. In any electrical system, components expand and contract due to heat (thermal cycling). A rigid busbar exerts immense mechanical stress on its connection points during these cycles, which can lead to cracked housings or loosened bolts.
Braided busbars absorb this energy. Because the individual strands can slide slightly against one another within the weave, the component can bend, twist, and offset without losing electrical integrity. This “self-stress-relieving” property is why they are indispensable in high-vibration environments like automotive engines or industrial crushers.
Skin Effect and AC Performance
In high-frequency alternating current (AC) applications, electricity tends to flow on the surface of a conductor rather than through its core—a phenomenon known as the Skin Effect.
Because a braided busbar is composed of hundreds or thousands of individual fine wires, it has a significantly higher total surface area compared to a single solid bar of the same cross-sectional area. This can help in reducing losses in specific high-frequency scenarios, although it is important to note that for standard 50/60Hz power, the benefit is primarily mechanical rather than purely electromagnetic.
Key Applications in Power Distribution and Industrial Systems
The versatility of braided busbars allows them to span across multiple sectors. From heavy industry to delicate electronics, their role is to ensure a stable flow of power under unstable physical conditions.
Transformers and Generators
Large power transformers are prone to constant vibration due to the magnetic fields acting on the windings. If you were to connect a transformer’s bushings to a rigid switchgear system using solid busbars, the vibration would eventually cause metal fatigue.
- Vibration Dampening: Braided links act as a “flexible bridge” between the vibrating transformer and the static distribution board.
- Ease of Alignment: In large-scale installations, aligning heavy equipment to the millimeter is nearly impossible. Braided busbars allow for “tolerance take-up,” meaning they can be easily adjusted to fit even if the connection points are slightly misaligned.
Switchgear and Control Cabinets
Space is a premium in modern industrial control panels. Engineers often have to route power around corners, over components, or through narrow gaps.
- Tight Bend Radii: A braided busbar can be bent at much sharper angles than a solid bar without the risk of the metal thinning or cracking at the bend.
- Modular Design: Custom-length braids allow for cleaner cabinet layouts, reducing the “spaghetti” effect of heavy-duty cabling.
Electrolysis and Plating Lines
Industrial processes like chrome plating or aluminum smelting require massive amounts of DC current. These environments are often chemically corrosive and physically demanding.
Braided busbars used here are often Tinned Copper to prevent oxidation. They handle the massive thermal expansion caused by thousands of Amperes flowing through the system, ensuring that the electrodes remain powered even as the mechanical structure shifts under the heat.

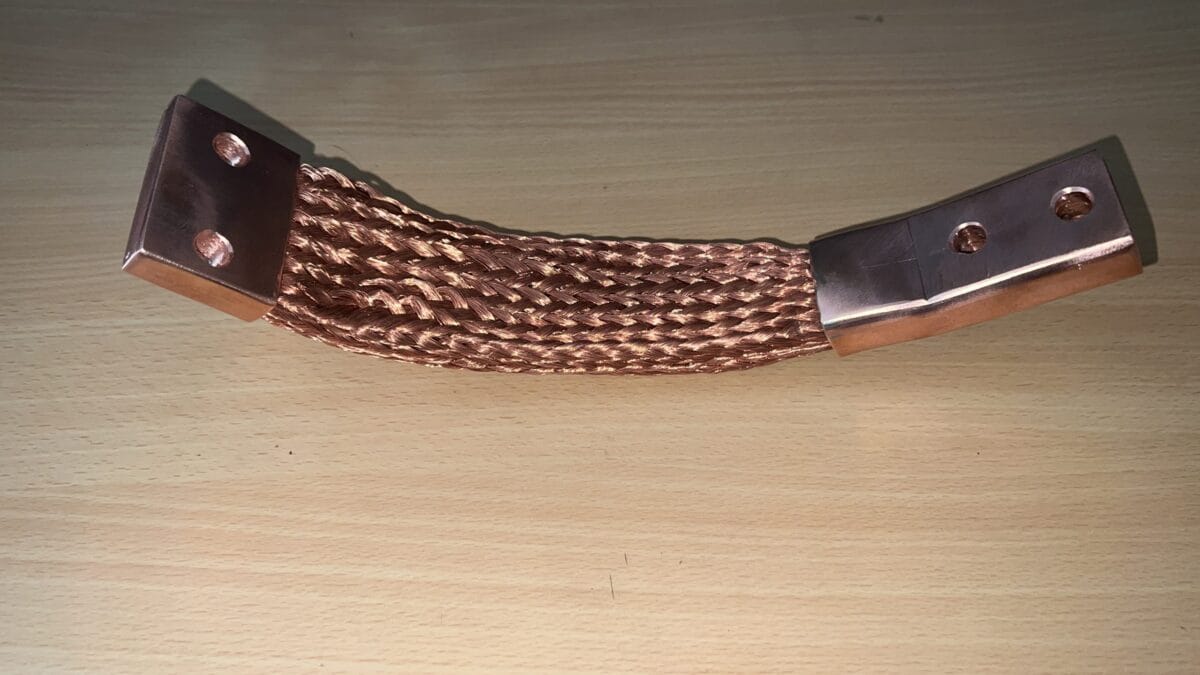

Technical Specifications and Material Standards
When sourcing braided busbars from a professional manufacturer like JUMAI TECH, understanding the technical data is crucial for safety and performance. We adhere to strict international standards to ensure that every component can handle its rated load.
Common Material Grades
Most high-quality braided busbars are made from ETP (Electrolytic Tough Pitch) Copper with a purity of at least 99.9%. For specialized applications, such as those in the aerospace or high-end audio sectors, Oxygen-Free Copper (OFC) may be used to further enhance conductivity and prevent hydrogen embrittlement.
| Feature | Tinned Copper Braid | Bare Copper Braid | Silver-Plated Braid |
| Conductivity | ~95-97% IACS | 100% IACS | >101% IACS |
| Corrosion Resistance | High (Protects against salt/acid) | Moderate (Prone to oxidation) | Excellent (Extreme environments) |
| Solderability | Excellent | Good (Requires flux) | Superior |
| Common Use | Marine, Automotive, Battery | General Industrial | Aerospace, High-Frequency |
Calculating Current Carrying Capacity
The ampacity of a braided busbar depends on its cross-sectional area, the allowable temperature rise, and the environment (ambient temperature). A common mistake is assuming a braid has the same rating as a wire of the same gauge. Because braids are “open” structures, they often dissipate heat more effectively than insulated wires, allowing for higher current densities in some configurations.
According to ASTM B33 – Standard Specification for Tinned Soft or Annealed Copper Wire, the quality of the individual strands must be maintained to ensure the longevity of the braid.
The Role of Braided Busbars in the EV Revolution
The transition to Electric Vehicles (EVs) has created a massive surge in demand for flexible power solutions. Inside an EV battery pack, space is non-existent, and the environment is one of constant motion.
Battery Module Interconnects
Modern EV batteries consist of hundreds of individual cells linked together. These cells expand slightly during charging and discharging (a phenomenon known as “cell swelling”).
- Managing Swell: If rigid connectors were used, the swelling of the cells could snap the connections or damage the battery terminals. Braided busbars “breathe” with the battery, accommodating this micro-expansion effortlessly.
- Weight Reduction: By using optimized braided designs, manufacturers can reduce the overall weight of the busbar system compared to heavy-duty mechanical lugs and cables.
Charging Infrastructure
High-speed DC fast chargers (Level 3) handle currents upwards of 350kW. The cables and internal busbars must be able to handle extreme heat cycles. Braided busbars are used within the charging stations to connect the power modules to the main output, providing the necessary flexibility for easy maintenance and heat dissipation.

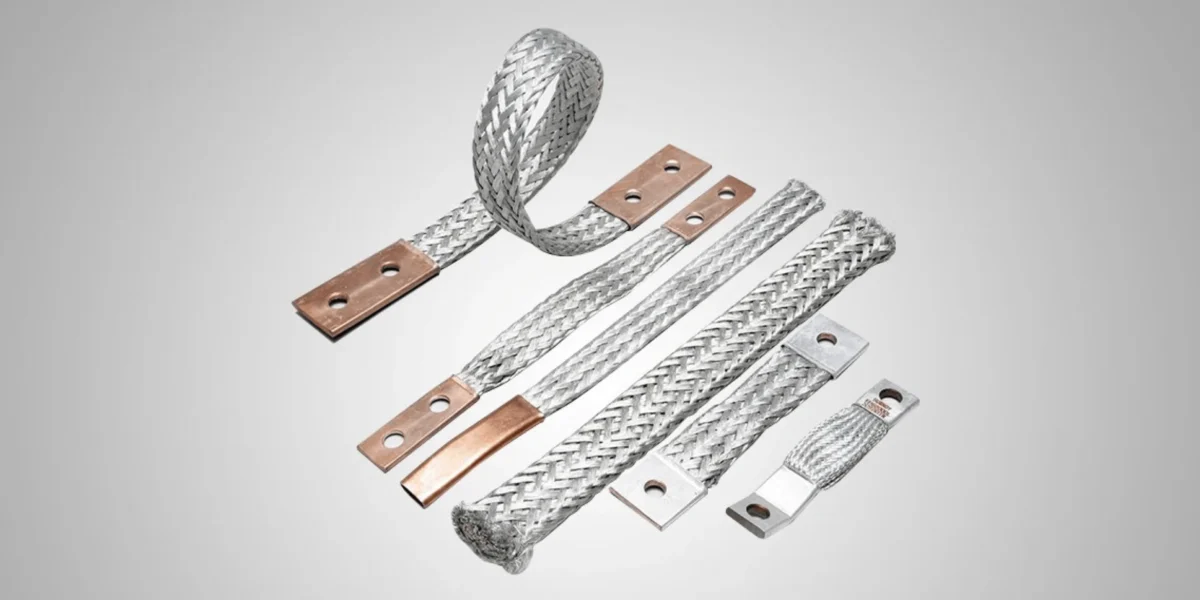

Grounding and Lightning Protection
One of the most common, yet overlooked, uses for braided busbars is in Earthing and Bonding. Safety is paramount in any electrical installation, and a reliable path to the ground is the first line of defense.
EMI and RFI Shielding
Because of their flat profile and high surface area, braided copper straps have low impedance at high frequencies. This makes them exceptionally good at draining electromagnetic interference (EMI) to the ground.
In data centers or telecommunications hubs, braided grounding straps are used to bond equipment racks to the main ground loop. This protects sensitive servers from “noise” that could cause data corruption. You can find more about grounding standards through the IEEE 802.3 standard for Ethernet and Grounding.
Lightning Protection Systems
In buildings and industrial towers, lightning protection systems use braided conductors to direct the massive energy of a strike into the earth. The flexibility of the braid allows it to be routed around the architectural features of a building without the risk of the conductor snapping under the physical shock of a lightning discharge.
Manufacturing Excellence: How JUMAI TECH Ensures Quality
As a leader in Deep-Drawn Components and Precision Stamping, JUMAI TECH applies the same rigorous standards to our braided busbars. Producing a high-quality braid is a complex process involving multiple stages of precision engineering.
The Braiding Process
It starts with the drawing of the copper wire. We ensure that the wire is annealed to the perfect temper—not too brittle that it snaps, and not too soft that it loses its shape. The wires are then loaded onto high-speed braiding machines that interweave them into a tubular or flat configuration.
Termination Techniques
The most critical part of a braided busbar is the end termination. If the ends are not handled correctly, the individual strands can fray, leading to high resistance and “hot spots.”
- Cold Pressing: We use high-tonnage hydraulic presses to fuse the copper braid into a solid lug. This creates a molecular bond that ensures maximum conductivity.
- Solder Dipping: For some applications, the ends are dipped in a molten tin alloy to bind the strands together.
- Diffusion Bonding: This is the “gold standard.” By applying heat and pressure simultaneously, we fuse the copper strands into a solid block of copper without the use of filler metals, resulting in zero resistance increase at the joint.
Comparative Analysis: Braided vs. Rigid vs. Laminated
Engineers often ask: “Why not just use a standard cable or a solid bar?” The answer lies in a balance of cost, space, and mechanical requirements.
| Characteristic | Braided Busbar | Rigid Busbar | Laminated (Flexible) Busbar |
| Flexibility | High (All directions) | Low (None) | Medium (One plane) |
| Current Capacity | High | Very High | High |
| Vibration Resistance | Excellent | Poor | Good |
| Installation Speed | Fast (Easy to route) | Slow (Requires precise alignment) | Moderate |
| Cost | Moderate | Low | High |
When to Choose Braided
You should choose a braided busbar when your application involves vibration, thermal expansion, or three-dimensional routing. While rigid bars are cheaper for straight runs in a static environment, the “total cost of ownership” of a braided bar is often lower in complex systems because it reduces the risk of mechanical failure and speeds up assembly time.
Environmental Durability and Protective Coatings
Industrial environments can be harsh. From the salty air of offshore wind farms to the acidic fumes of chemical plants, the copper in a busbar needs protection.
Tinning and Plating
- Tin Plating: The most common coating. It provides a good balance of cost and corrosion resistance, preventing the copper from turning green (oxidizing) in humid environments.
- Nickel Plating: Used in high-temperature environments (up to 200°C) where tin would soften or oxidize.
- Silver Plating: Reserved for high-voltage and high-frequency applications where the lowest possible surface resistance is required.
Insulation Options
While many grounding braids are bare, power distribution braids often require insulation to prevent accidental short circuits.
- Heat Shrink Tubing (Polyolefin): A cost-effective way to insulate the length of the braid while keeping the ends exposed for connection.
- PVC/Silicone Sleeving: Provides higher flexibility and better dielectric strength for high-voltage applications.
- Halogen-Free Insulation: Essential for public transport (trains/subways) and marine applications where smoke toxicity is a major safety concern. Standards like UL 94 for flammability guide our material selection.
Conclusion and Next Steps
The braided busbar is an elegant solution to a complex problem. It bridges the gap between the raw power of a solid conductor and the mechanical versatility of a wire. Whether it’s protecting a multi-million dollar transformer from vibration fatigue or ensuring that an EV battery can withstand the rigors of the road, these components are silent heroes of the electrical world.
At JUMAI TECH, we specialize in more than just manufacturing; we provide engineering partnerships. Our expertise in Deep-Drawn Components and Precision Stamping Dies allows us to create custom braided solutions that are tailored to your specific ampacity, dimension, and environmental requirements. We don’t just follow blueprints—we help refine them to ensure your power distribution system is as efficient and reliable as possible.
Would you like me to provide a custom technical drawing or a quote for a specific braided busbar configuration for your project? Reach out to our engineering team today to see how our precision copper solutions can elevate your next design.
