The global transition toward sustainable power is accelerating at an unprecedented pace. According to recent data from the International Energy Agency (IEA), global renewable energy capacity additions are breaking records year over year, driven largely by solar photovoltaic (PV) and wind power installations. However, generating clean energy is only half the battle; transmitting, storing, and distributing that power with minimal loss is equally critical. This is where the backbone of modern electrical engineering comes into play: Precision Copper Busbars.
At JUMAI (DeepDrawTech), we understand that standard, off-the-shelf electrical components are no longer sufficient for the complex, high-demand architectures of today’s green energy grids, data centers, and large-scale power transmission hubs. With years of deep-rooted experience in eco-friendly energy solutions, advanced manufacturing, and deep drawing die processing, we have engineered this comprehensive guide.
Whether you are an electrical engineer designing a multi-megawatt battery energy storage system (BESS), a procurement manager sourcing for wind turbine manufacturing, or a project manager overseeing a utility-scale solar farm, this guide will provide you with an authoritative, data-backed understanding of why custom precision copper busbars are the non-negotiable standard for modern energy infrastructure.
Table of Contents
The Core Philosophy of Precision Copper Busbars
Before diving into the complex applications within renewable energy, it is essential to establish what separates a standard electrical conductor from a Precision Copper Busbar.
A busbar (or bus bar) is a metallic strip or bar, typically housed inside switchgear, panel boards, and busway enclosures, used for high-current power distribution. “Precision,” in this context, refers to the microscopic tolerances, exact metallurgical composition, and highly customized form factors required to fit perfectly into complex mechanical spaces while maintaining optimal electrical and thermal performance.
The Material Advantage: Why Copper Reigns Supreme
In the realm of power transmission, the debate between copper and aluminum is decades old. While aluminum offers weight advantages, copper is the undisputed king of efficiency, safety, and longevity, making it the premier choice for precision components.
The Copper Development Association (CDA) highlights that pure copper has the highest electrical conductivity of any commercial metal. Specifically, Electrolytic Tough Pitch (ETP) copper (UNS C11000) and Oxygen-Free High Thermal Conductivity (OFHC) copper (UNS C10200) offer a baseline of 100% to 101% IACS (International Annealed Copper Standard).
To illustrate the stark differences and why JUMAI heavily advocates for custom copper busbars in critical infrastructure, consider the following comparative data:
Table 1: Copper vs. Aluminum in High-Current Applications
| Characteristic | Precision Copper Busbars | Aluminum Busbars | Impact on Renewable Energy Systems |
|---|---|---|---|
| Electrical Conductivity (IACS) | 100% – 101% | ~61% | Copper requires a significantly smaller cross-sectional area to carry the same current, saving critical space in compact solar inverters and wind turbine nacelles. |
| Thermal Conductivity | 390 W/(m·K) | 230 W/(m·K) | Superior heat dissipation prevents thermal runaway in high-density Energy Storage Systems (ESS) and data centers. |
| Tensile Strength | High (approx. 210-380 MPa) | Lower (approx. 70-150 MPa) | Copper withstands extreme electromagnetic faults and physical vibrations (e.g., inside wind turbines) without warping or breaking. |
| Coefficient of Thermal Expansion | 16.6 µm/(m·K) | 23.8 µm/(m·K) | Copper expands less under heat, reducing mechanical stress on connection joints over decades of daily temperature cycling. |
| Oxidation Resistance | Excellent | Poor (Requires special joint compounds) | Copper joints maintain low resistance over time, crucial for offshore and harsh-environment installations. |
The Critical Role of Precision Copper Busbars in Renewable Energy
The operational environment of renewable energy systems is remarkably hostile compared to standard commercial real estate. Components must endure severe temperature fluctuations, intense UV exposure, high humidity, salt spray (in offshore applications), and continuous mechanical vibration.
1. Solar Photovoltaic (PV) Plants and Inverters
Utility-scale solar farms generate massive amounts of Direct Current (DC) electricity that must be aggregated, converted to Alternating Current (AC) via central or string inverters, and stepped up for grid transmission. Inside these inverters, space is at an absolute premium, and thermal management is a constant engineering challenge.
Custom precision copper busbars are utilized to connect the insulated-gate bipolar transistor (IGBT) modules. Because copper dissipates heat so efficiently, engineers can design smaller, more compact inverters. Furthermore, the low electrical resistance of precision copper ensures that the micro-efficiencies gained in the solar panels are not lost as heat during the inversion process.
2. Wind Power Generation (Onshore and Offshore)
Wind turbines present a unique set of challenges: they are dynamic, moving structures subject to relentless kinetic forces. The generator sits high in the nacelle, producing power that must travel down the tower.
Here, Braided Copper Busbars and Flexible Laminated Copper Busbars are vital. As the turbine faces wind sheer and mechanical vibration, rigid connections would fatigue and eventually fracture. Braided busbars act as electrical shock absorbers, maintaining a flawless electrical connection while flexing with the movement of the turbine. Furthermore, offshore wind farms rely heavily on tin-plated copper busbars to resist the highly corrosive marine environment, a specification firmly supported by international standards such as IEC 61439 for low-voltage switchgear.
3. Energy Storage Systems (ESS) and Battery Banks
As the sun sets and the wind dies down, the grid relies on giant lithium-ion battery banks to provide baseload power. Battery Energy Storage Systems (BESS) require the connection of thousands of individual battery cells in series and parallel configurations.
The sudden discharge or charging of these batteries involves immense current spikes. Custom flexible copper busbars are tailored to fit exactly between battery terminals, compensating for the slight swelling and contracting of battery cells during charge cycles. A poorly designed aluminum or sub-standard copper connection here can lead to increased localized resistance, hot spots, and potentially catastrophic thermal runaway.
Exploring JUMAI’s Precision Copper Busbar Portfolio
At JUMAI, we do not believe in a one-size-fits-all approach. Because we integrate deep drawing die capabilities and custom accessory manufacturing alongside our busbar production, we provide holistic solutions. Our primary categories of precision copper busbars are engineered to meet specific physical and electrical demands.
Rigid Copper Busbars: The Unyielding Backbone
Rigid busbars are the standard for high-current, static installations such as data center power distribution units (PDUs), large electrical switchboards, and primary substation transformers.
Manufactured from high-purity T2 copper (standard in high-end industrial applications), these busbars are precision-cut, punched, bent, and stamped to exact OEM specifications.
- Key Advantage: Maximum current-carrying capacity (ampacity) and structural rigidity. They act as both an electrical conductor and a structural mounting point for heavy breakers and switches.
- Customization: JUMAI utilizes advanced CNC bending and punching to ensure that every rigid busbar fits perfectly into the client’s custom chassis, reducing assembly time and eliminating on-site modifications.

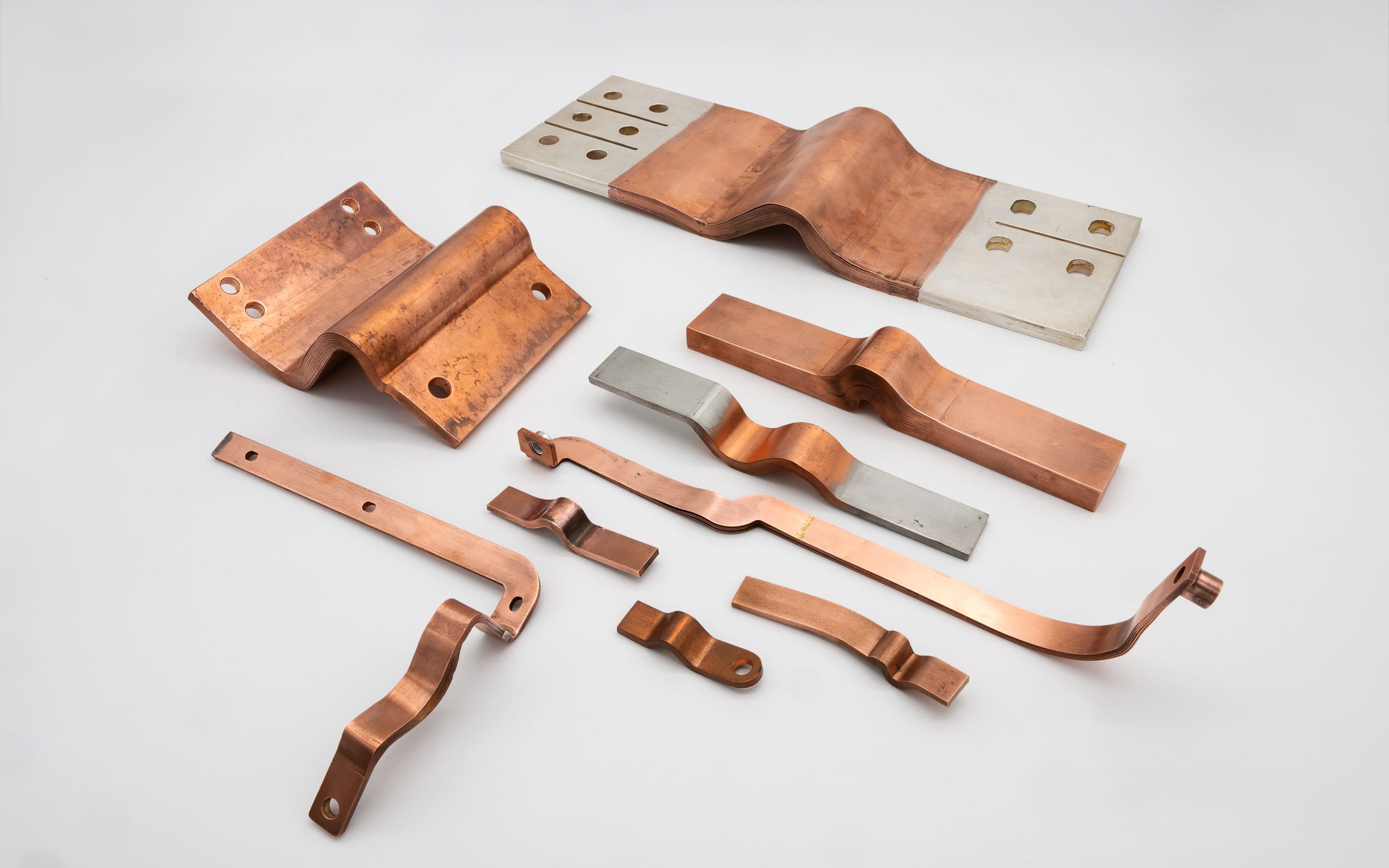

Flexible Laminated Copper Busbars: Spatial Ingenuity
When dealing with tight spatial constraints or misaligned terminals, rigid bars are impossible to install. Flexible laminated busbars consist of multiple thin layers of highly conductive electrolytic copper foils (typically 0.1mm to 1mm thick), fused together at the mounting ends through a proprietary diffusion welding or press-welding process, leaving the middle section highly flexible.
- Key Advantage: Exceptional flexibility combined with high ampacity. The laminated structure increases the surface area, which is highly beneficial for mitigating the “skin effect” (where high-frequency AC current travels mostly on the surface of the conductor).
- Application: Ideal for EV (Electric Vehicle) battery packs, solar inverters, and industrial robotics where components move or where space routing is highly complex.

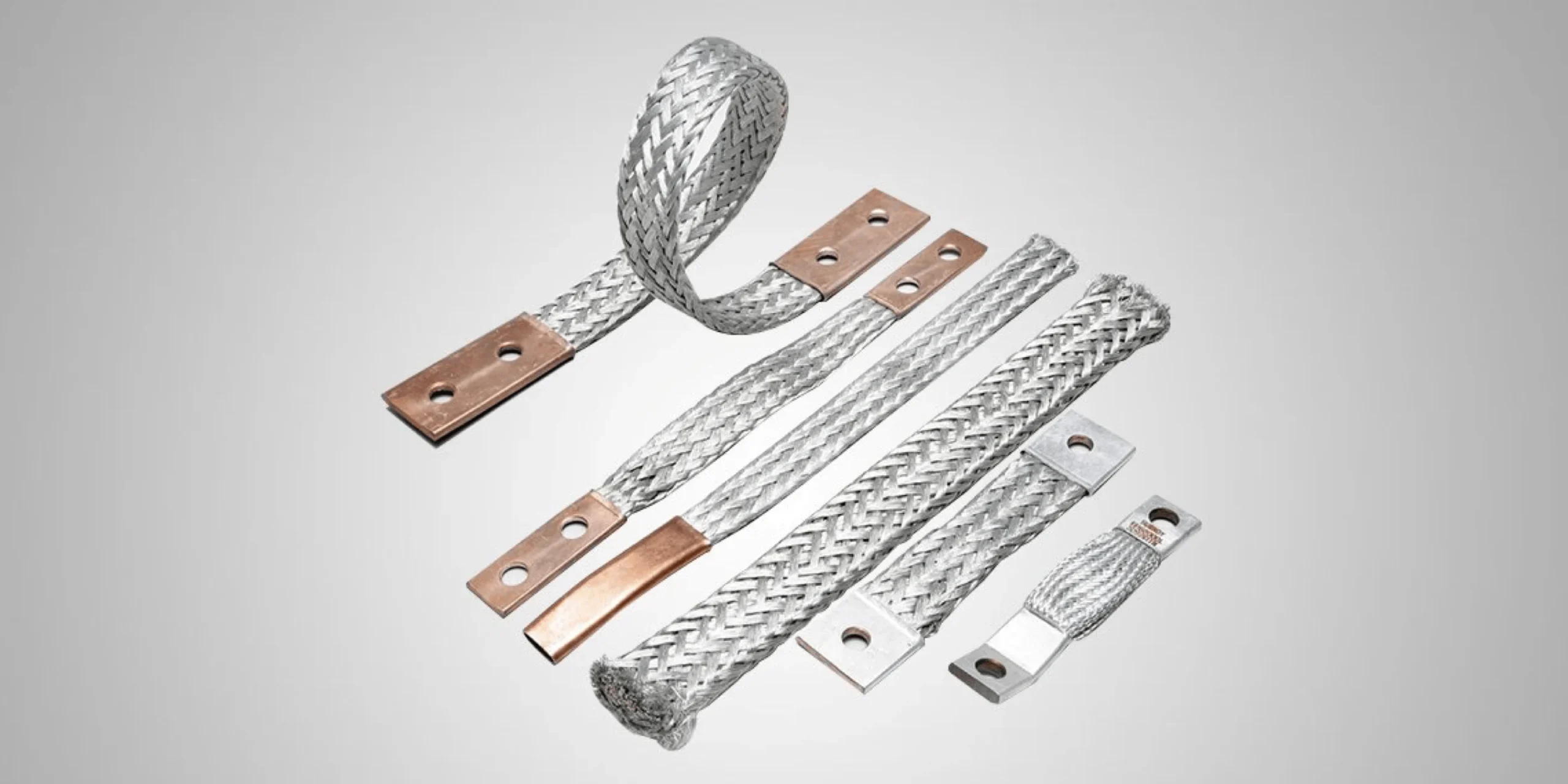

Braided Copper Busbars: The Vibration Masters
Constructed by weaving together fine strands of pure copper wire (often as thin as 0.05mm), braided busbars look like metallic ropes or flattened metallic straps.
- Key Advantage: Unparalleled kinetic absorption. They can bend, twist, and absorb intense vibrations without suffering metal fatigue.
- Application: Transformer connections, wind turbine nacelles, seismic zones, and heavy vibrating machinery. At JUMAI, we often provide these with custom-pressed ferrule ends (using our deep drawing/stamping expertise) to ensure a solid, low-resistance connection point.
Table 2: Selection Matrix for JUMAI Precision Copper Busbars
| Busbar Type | Primary Characteristic | Flexibility | Vibration Tolerance | Ideal Renewable Energy Application |
|---|---|---|---|---|
| Rigid Copper Busbar | High Ampacity, Structural Support | None | Low | Central Solar Inverters, Substation Switchgear, Data Center PDUs |
| Flexible Laminated | Spatial routing, High surface area | High (Single Axis) | Moderate | EV Battery Packs, BESS Interconnections, Compact Inverters |
| Braided Copper | 360-degree flex, Shock absorption | Extreme (Multi-Axis) | Extreme | Wind Turbines, Transformer Isolation, Seismic Joint Connections |
The Synergy of Deep Drawing and Precision Busbars at JUMAI
What truly separates JUMAI from standard copper suppliers is our extensive background in deep draw stamping and custom metal processing. A busbar does not exist in a vacuum; it requires housings, brackets, terminal covers, and specialized mounting hardware.
Understanding the Deep Drawing Advantage
Deep drawing is a specialized sheet metal forming process where a sheet metal blank is radially drawn into a forming die by the mechanical action of a punch. It is highly efficient for creating seamless, strong, and precise three-dimensional shapes.
When engineering a custom electrical solution for a global client, JUMAI leverages this dual expertise:
- Integrated Housings: We can deep-draw custom aluminum or steel enclosures that perfectly match the complex routing of our flexible and rigid busbars.
- Seamless Copper Terminals: For certain high-end applications, terminal ends can be deep-drawn to create seamless, leak-proof electrical cups or heavy-duty connectors, minimizing electrical resistance compared to welded or bolted alternatives.
- Cost-Effective OEM/ODM: By consolidating the procurement of precision copper busbars and their accompanying deep-drawn metal accessories through JUMAI, our clients significantly reduce supply chain complexity, lower lead times, and guarantee that all components fit together with microscopic precision.
Advanced Surface Treatments: Defying the Elements
Precision copper is exceptional, but bare copper exposed to the elements will eventually oxidize, creating a layer of copper oxide (patina) that acts as an electrical insulator, dangerous at connection points. To guarantee decades of maintenance-free operation in renewable energy systems, JUMAI applies advanced surface treatments and insulation technologies.
1. Tin Plating (The Industry Workhorse)
Applying a thin layer of tin (typically 3 to 12 microns) via electroplating is the most common and cost-effective way to protect copper busbars.
- Benefits: Prevents oxidation, improves solderability, and prevents galvanic corrosion when a copper busbar must be bolted to an aluminum terminal. Tin-plated busbars are mandatory for high-humidity environments like offshore wind farms.
2. Nickel and Silver Plating
For environments involving extreme temperatures or environments with high concentrations of corrosive gases (like certain chemical processing plants or heavy-duty data centers), standard tin may not suffice.
- Silver Plating: Offers the absolute lowest contact resistance, ideal for very high-frequency, high-current connections where micro-ohm resistance matters.
- Nickel Plating: Provides superior hardness and wear resistance, perfect for busbars that will be frequently disconnected and reconnected.
3. Advanced Insulation Technologies
Safety and spatial efficiency dictate that busbars often need superior dielectric insulation. JUMAI provides custom insulation tailored to the voltage rating of the system:
- Heat Shrink Tubing (PVC or Polyolefin): A standard, highly effective method for low to medium voltage applications, color-coded (Red, Black, Yellow, Green/Yellow) for phase identification.
- Epoxy Powder Coating: JUMAI utilizes advanced electrostatic fluidized bed coating to apply highly durable, flame-retardant epoxy resins. This creates a seamless, void-free insulation layer that conforms perfectly to the most complex custom bends, allowing busbars to be placed millimetres apart without the risk of electrical arcing.
- Dip Coating: Particularly useful for flexible laminated busbars, ensuring that the insulating layer stretches and bends in tandem with the copper layers without cracking.
Engineering Your Solution: Key Considerations for Custom Orders
When global clients consult with JUMAI for OEM/ODM precision copper busbars, our engineering team requires specific operational data to ensure the final product exceeds expectations. Understanding these parameters is crucial for any procurement manager.
Ampacity and Current Rating Calculations
The fundamental question is: How much current will this busbar carry continuously, and what is the peak fault current?
Ampacity is dictated by the cross-sectional area of the busbar, the maximum allowable temperature rise, and the ambient temperature of the installation environment.
Table 3: Estimated Ampacity Ratings for Bare Rigid Copper Busbars (at 30°C Ambient, 30°C Rise)
(Note: Data is for illustrative baseline engineering purposes; actual custom ratings will vary based on enclosure design and AC/DC application).
| Dimensions (Thickness x Width) | Cross-Sectional Area | Estimated DC Ampacity (Amps) | Estimated AC (60Hz) Ampacity (Amps) |
|---|---|---|---|
| 3mm x 15mm | 45 mm² | ~180 A | ~175 A |
| 5mm x 30mm | 150 mm² | ~450 A | ~440 A |
| 10mm x 50mm | 500 mm² | ~1,100 A | ~1,050 A |
| 10mm x 100mm | 1000 mm² | ~1,900 A | ~1,700 A |
Notice how AC ampacity begins to drop relative to DC as the size increases. This is due to the Skin Effect and Proximity Effect.
Mitigating the Skin and Proximity Effects
In alternating current (AC) systems, the current does not distribute evenly across the cross-section of the busbar. It tends to crowd toward the surface (the skin effect). Furthermore, when multiple busbars are placed close together (carrying different phases), their electromagnetic fields interact, pushing the current to the furthest edges (the proximity effect).
JUMAI’s engineering team counteracts these phenomena by optimizing the aspect ratio of the busbars. Instead of using a thick, square block of copper for high AC currents, we engineer wide, thin rectangular busbars, or utilize multiple thinner busbars spaced carefully apart, dramatically increasing the surface area and maintaining high electrical efficiency.
Thermal Management and Power Loss
According to Joule’s First Law ($P = I^2R$), power loss in a conductor is proportional to the square of the current multiplied by the resistance. In a 5-Megawatt solar farm, even a fraction of a milliohm of excess resistance across hundreds of busbars can translate to thousands of kilowatt-hours of lost energy annually, directly impacting the facility’s financial ROI.
By utilizing ultra-high-purity copper and precision-machined, perfectly flat contact surfaces (often silver-plated), JUMAI busbars minimize connection resistance ($R$), ensuring that your renewable energy system operates at maximum thermal and electrical efficiency.
Global Standards, Certifications, and Quality Assurance
In the international B2B landscape, quality cannot simply be claimed; it must be proven. Electrical fires caused by substandard components in data centers or power grids can result in millions of dollars in damages and catastrophic downtime.
JUMAI aligns our manufacturing and quality control processes with stringent global standards to ensure seamless international deployment for our clients.
- ISO 9001 Certification: Our manufacturing facilities operate under rigorous quality management systems, ensuring traceability from raw copper ingot to the final packaged busbar.
- RoHS and REACH Compliance: Aligning with the eco-friendly nature of our clients in the renewable sector, our copper, plating chemicals, and insulation materials are strictly compliant with the European Union’s RoHS (Restriction of Hazardous Substances) directives.
- UL (Underwriters Laboratories) Compatibility: For clients exporting to the North American market, our insulation materials (such as our PVC and Epoxy coatings) meet strict UL 94 V-0 flammability standards, ensuring they self-extinguish within seconds in the event of an external fire.
- Rigorous In-House Testing: Before a batch of custom busbars leaves our facility, it undergoes electrical conductivity testing, hi-pot (high potential) dielectric withstand testing for insulation integrity, and precise 3D optical measurements to guarantee dimensional accuracy against the client’s CAD drawings.
Partnering with JUMAI: Your Strategic OEM/ODM Advantage
Navigating the complexities of modern electrical engineering requires more than just a supplier; it requires a strategic manufacturing partner. At JUMAI (DeepDrawTech), we have optimized our entire operation to serve as an extension of your R&D and production teams.
Why Global Clients Choose JUMAI
- End-to-End Capabilities: From the initial CAD design and thermal modeling of a flexible braided busbar to the deep drawing of its customized metal housing, we handle the entire process in-house. This eliminates the middleman, reduces costs, and drastically shortens lead times.
- Rapid Prototyping: We understand that the renewable energy and data center markets move fast. Our agile tooling department can turn around custom precision busbar prototypes in record time, allowing your engineers to physically test the fit and performance before committing to mass production.
- Scalability: Whether you need 50 highly specialized, silver-plated rigid busbars for a prototype superconducting energy storage system, or 50,000 sets of braided busbars for a global wind turbine rollout, our production lines are engineered to scale seamlessly without compromising precision.
- Deep Industry Expertise: We don’t just bend metal; we understand the physics of power transmission. Our background in environmental new energy, data centers, and heavy power transmission means we speak your language. We anticipate engineering challenges—such as thermal expansion joints or vibration fatigue—before they become costly on-site failures.
The Future of Power Transmission
As the world electrifies—from the proliferation of electric vehicle charging infrastructure to the massive expansion of hyperscale AI data centers—the demand for flawless, highly efficient power transmission will only grow. Copper will remain the undisputed material of choice, and precision engineering will remain the key to unlocking its full potential.
Investing in high-quality, custom precision copper busbars is not merely an engineering decision; it is a long-term financial strategy. By minimizing power loss, preventing catastrophic thermal failures, and ensuring decades of zero-maintenance operation, JUMAI busbars directly increase the lifecycle profitability of your renewable energy installations.
Take the Next Step
Your infrastructure deserves the highest standard of connectivity. Do not let substandard power transmission be the bottleneck in your next-generation energy project.
Explore our full range of custom soft, hard, and braided copper busbars, as well as our unparalleled deep drawing processing capabilities. Visit our digital storefront to view online samples and initiate a project consultation.
FAQ
What are Precision Copper Busbars?
Precision Copper Busbars are metallic strips used in electrical systems to efficiently transmit high amounts of current. They are made from copper, which is the best material for electricity because it conducts power very well and lasts a long time.
Why use copper instead of aluminum?
Copper is better than aluminum for electrical work because it is more efficient and can carry more electricity without getting hot. This means that using copper helps keep energy costs down and makes devices safer.
How are Custom Copper Busbars different from regular busbars?
Custom Copper Busbars are specially made to fit specific needs and designs, whereas regular busbars are generic. This means that custom versions can provide better performance and efficiency in complex systems.
Why are busbars important in renewable energy?
Busbars are crucial for renewable energy because they help carry power from sources like solar panels and wind turbines to where it’s needed, like homes and businesses. They ensure that electricity flows smoothly and safely.
What happens if a busbar gets too hot?
If a busbar gets too hot, it can fail and stop working properly, which may lead to power outages or even fires. That’s why it’s important to use high-quality busbars that are designed to manage heat well.
How do I know what size busbar I need?
Choosing the right size busbar depends on how much electricity you need to transmit. You can consult with an engineer who can calculate the optimal size based on your system’s requirements.
What is the role of advanced surface treatments on busbars?
Advanced treatments on busbars protect them from rust and wear. By coating them with materials like tin or nickel, they can last longer and work better in harsh conditions.
How does JUMAI ensure quality and safety?
JUMAI follows strict international standards to ensure that its products are safe and of high quality. Each busbar goes through detailed testing to confirm that it meets safety regulations and performs as expected.
Can I get a custom busbar for my project?
Yes! JUMAI specializes in custom busbars tailored specifically for your project’s needs. Just provide the details about your system, and their team can help design the right solution.
What advantages do Copper Busbars have in data centers?
In data centers, Copper Busbars help efficiently carry the large amounts of electricity needed to power servers and equipment. Their excellent heat management also prevents overheating, ensuring long-lasting performance.
