Flexible Copper Busbars vs. Solid Busbars: Which is Best for Power Transmission?

The global landscape of power generation, distribution, and consumption is undergoing an unprecedented and rapid transformation. As the world aggressively pivots toward renewable energy, hyper-scale data centers, and the mass adoption of electric vehicles (EVs), the underlying electrical infrastructure is being pushed beyond its traditional limits. At the very heart of this electrical revolution lies a critical, yet often underappreciated, component: the busbar.

For decades, electrical engineers, facility designers, and procurement specialists have relied on fundamental materials to move electrons from generation sources to consumption points. However, as the spatial constraints of modern hardware tighten and the electrical loads increase exponentially, the foundational decisions regarding power routing have never been more critical. The choice of conductors directly dictates the safety, efficiency, thermal stability, and overall longevity of multi-million-dollar systems.

At JUMAI, we have dedicated years to the advanced research and development, custom design, and precision manufacturing of critical power transmission components. Our expertise spans across the production of custom soft, hard, and braided copper busbars, as well as high-precision deep drawing dies and accessories essential for modern electrical infrastructure. Based on our extensive operational history in green new energy, heavy transmission centers, and customized manufacturing, this definitive technical guide will comprehensively dissect the engineering realities of Flexible Copper Busbars compared to traditional Solid Busbars.

By evaluating metallurgical data, mechanical stress factors, high-frequency alternating current (AC) behaviors, and total cost of ownership (TCO), we will provide you with the ultimate framework to determine which solution is best for your specific power transmission requirements.

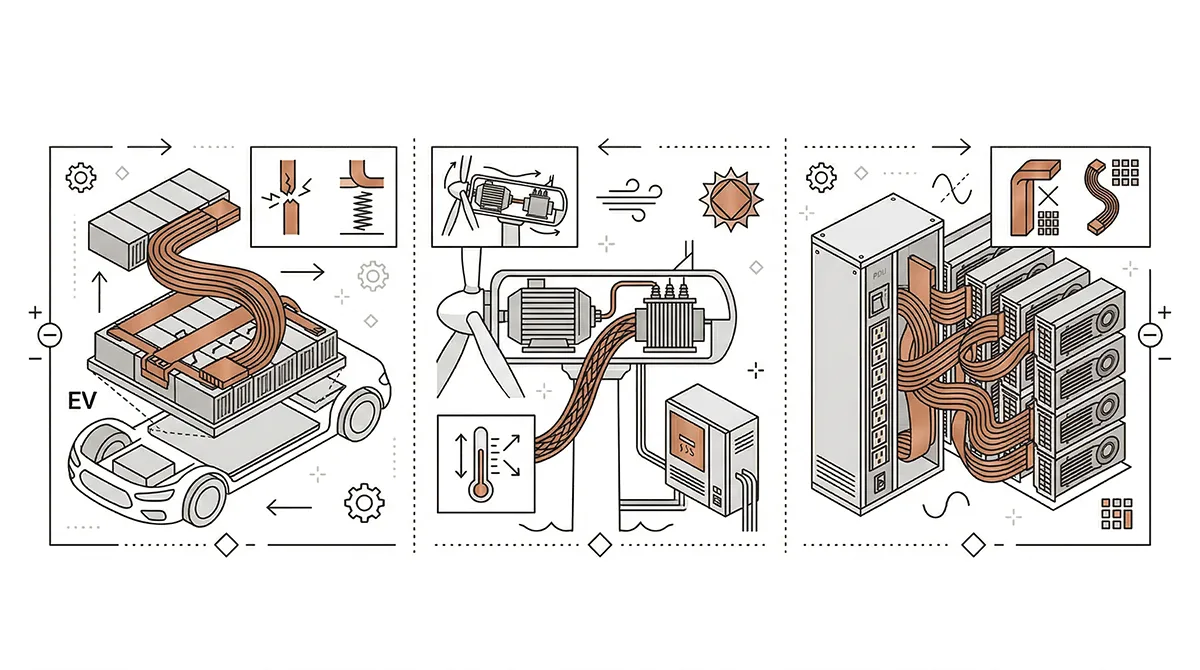

The Macroeconomic and Technological Drivers of Modern Electrification

Before diving into the microscopic physics of copper conductors, it is essential to understand the macroeconomic forces driving the evolution of busbar technology. According to projections by the International Energy Agency (IEA), global electricity demand is expected to grow at an accelerated pace, primarily driven by the electrification of transport and heating, alongside the explosive growth of artificial intelligence (AI) and the data centers required to train and sustain it.

This surge in demand necessitates not just more power, but denser power.

1. Electric Vehicles (EVs): The automotive industry is transitioning from internal combustion engines to massive lithium-ion battery packs capable of delivering hundreds of kilowatts of power instantaneously. These battery packs require connections that can handle massive current spikes while enduring constant mechanical vibration and road shock.
2. Renewable Energy (Wind and Solar): Solar inverters and wind turbine generators process immense amounts of high-frequency power. Wind turbines, in particular, are subject to extreme mechanical swaying and temperature fluctuations, making rigid power connections highly susceptible to structural fatigue.
3. Hyper-Scale Data Centers: As server racks transition to high-density GPU clusters for AI processing, the power draw per rack has skyrocketed. Facility managers are forced to pack more power distribution units (PDUs) into smaller spaces, demanding highly adaptable and space-efficient conductor routing.

In all these scenarios, traditional power transmission methods are proving inadequate. The industry is rapidly realizing that simply adding more raw copper is not the answer; the form and flexibility of that copper are now the defining factors of system viability.

Metallurgical Foundations of Copper as a Power Conductor

To properly evaluate any busbar, one must understand the raw material itself. Copper has been the undisputed king of commercial electrical conductivity since the dawn of the electrical age. Recognized by the Copper Development Association (CDA) for its unparalleled properties, copper offers an ideal balance of high conductivity, thermal capacity, and corrosion resistance.

The IACS Standard and Copper Purity

Electrical conductivity is measured against the International Annealed Copper Standard (IACS). Pure, unalloyed copper sets the baseline at 100% IACS. Most high-quality commercial busbars, whether solid or flexible, are manufactured from Electrolytic Tough Pitch (ETP) copper (designated as C11000 or Cu-ETP).

Cu-ETP boasts a minimum copper purity of 99.90% and an electrical conductivity that often exceeds 100.5% IACS due to modern ultra-refining techniques. Another premium grade utilized in highly sensitive environments is Oxygen-Free High Thermal Conductivity (OFHC) copper (C10200), which eliminates the microscopic oxygen content that can lead to hydrogen embrittlement when exposed to reducing atmospheres at high temperatures.

Joule Heating and Electrical Resistance

The fundamental challenge in transmitting large volumes of electricity is resistance. According to Joule’s First Law, the thermal energy (heat) generated by an electrical conductor is proportional to the square of the current multiplied by the resistance:

$$P = I^2 R$$

Where:

• $P$ = Power loss (Heat in Watts)
• $I$ = Current (Amperes)
• $R$ = Resistance (Ohms)

Because current ($I$) is squared, doubling the amperage of a system quadruples the heat generated. Therefore, to safely transmit thousands of amps, engineers must minimize resistance ($R$) by maximizing the cross-sectional area of the conductor. This is the primary physical reason why busbars exist: cables and wires simply cannot provide the necessary cross-sectional mass without becoming dangerously unwieldy and fire-prone.

The Traditional Architecture of Solid Copper Busbars

For over a century, the solid copper busbar has been the primary solution to the Joule heating problem. A solid busbar is precisely what its name implies: a continuous, rigid block of copper. They are typically manufactured through heavy industrial processes such as hot extrusion, where heated copper billets are forced through a die to create long, continuous profiles (flat bars, rods, tubes, or custom geometric shapes), followed by cold drawing to achieve exact dimensional tolerances and improve the metal’s mechanical yield strength.

Structural Integrity and Yield Strength

The defining characteristic of a solid copper busbar is its immense mechanical rigidity. A heavily cold-worked Cu-ETP solid busbar can possess an ultimate tensile strength exceeding 300 MPa and a yield strength that allows it to act not just as an electrical conductor, but as a load-bearing structural component within an electrical cabinet.

When a short circuit occurs in a high-power grid, the parallel busbars experience violent electromagnetic forces pulling them together or pushing them apart. These forces can exceed tens of thousands of Newtons in milliseconds. Solid busbars, when properly bolted to heavy ceramic or composite standoff insulators, possess the sheer physical mass and rigidity to withstand these fault currents without bending or snapping.

Primary Applications for Solid Busbars

Because of their structural characteristics and lower initial manufacturing complexity, solid copper busbars remain highly relevant and strictly necessary in several key industrial environments:

1. Main Switchgears and Utility Substations: In stationary, concrete-anchored facilities where the busbars must span long distances overhead or between heavy transformers, solid bars are the most logical choice. They require fewer support brackets per meter compared to flexible cables.
2. Heavy DC Smelting and Electroplating: In industrial processes requiring massive amounts of direct current (DC) in a completely static environment, solid blocks of copper provide the absolute lowest resistance path possible.
3. Linear Power Tracks (Busways): For long, straight, overhead power distribution in manufacturing plants, rigid solid busbars enclosed in metal trunking provide an excellent, tap-off-ready power grid.

Table 1: Physical Properties of Standard Solid Cu-ETP Busbars

The Engineering Constraints of Rigid Busbar Systems

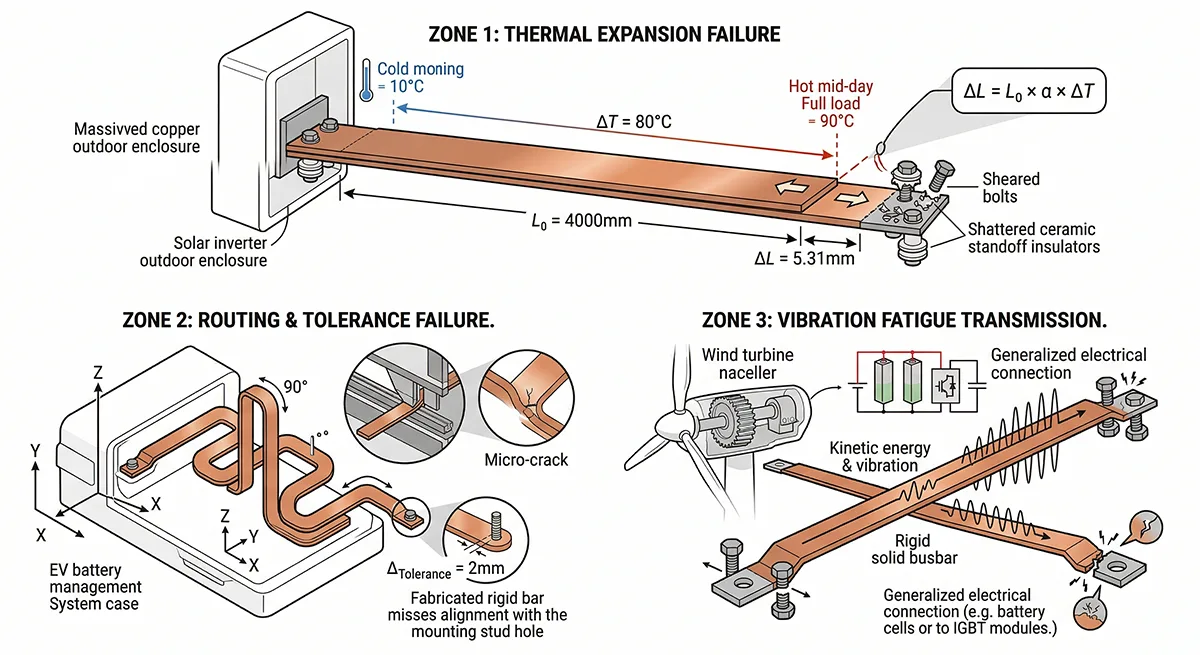

While solid copper busbars excel in static, linear environments, modern electrical engineering is increasingly characterized by dynamic movement, severe spatial limitations, and high-frequency alternating currents. In these scenarios, the defining strength of a solid busbar—its rigidity—becomes its most critical point of failure.

The Nightmare of Thermal Expansion

Metals expand when heated. Copper has a coefficient of linear thermal expansion of approximately $16.6 \times 10^{-6} \text{ K}^{-1}$. While this number appears small, its practical implications in high-power systems are catastrophic if not properly managed.

Consider a massive solar inverter installation utilizing a 4-meter solid copper busbar. The ambient temperature inside the outdoor enclosure might be $10^\circ\text{C}$ on a cold morning. By mid-day, operating under full load, the internal temperature of the busbar could soar to $90^\circ\text{C}$ (an $80^\circ\text{C}$ delta).

$$\Delta L = L_0 \times \alpha \times \Delta T$$

$$\Delta L = 4000 \text{ mm} \times (16.6 \times 10^{-6}) \times 80 = 5.31 \text{ mm}$$

The solid bar will expand by over 5 millimeters. If the bar is rigidly bolted at both ends to sensitive electrical components, this expansion acts like a hydraulic ram. It will sheer steel bolts, shatter ceramic standoffs, warp the internal chassis of the inverter, and destroy the integrity of the electrical connection. To mitigate this in solid systems, engineers must meticulously calculate and install complex slip joints or insert braided expansion shunts, driving up material costs and introducing new potential points of failure.

Spatial Routing and Manufacturing Tolerances

Modern electronics demand miniaturization. Routing a thick, solid busbar through the dense internal architecture of an EV battery management system or a data center server rack is a logistical nightmare.

Solid copper cannot be bent by hand. It requires heavy hydraulic press brakes. Furthermore, the bend radius must be carefully controlled; if a thick bar is bent too sharply, the outer edge of the copper will experience tensile failure (micro-cracking), severely reducing its cross-sectional area and creating a high-resistance hotspot that could lead to an electrical fire.

If a design requires a solid busbar to navigate an X, Y, and Z-axis path with multiple 90-degree turns, the manufacturing tolerances must be perfect to the millimeter. If the fabricated solid bar is off by just 2mm, it will not align with the mounting studs. Assembly line workers might force the bar into place, placing massive, permanent static stress on the connection terminals, virtually guaranteeing a premature mechanical failure in the field.

The Transmission of Destructive Vibration

In dynamic environments, vibration is a silent killer. An electric vehicle hitting a pothole, or the massive gearbox of a wind turbine generating high-frequency harmonics, creates kinetic energy that travels directly through rigid solid busbars. Because solid bars do not absorb vibration, they transfer 100% of that kinetic energy directly into the fragile connection terminals of battery cells, IGBT modules, or capacitors. Over time, this causes metal fatigue, loosened bolts, electrical arcing, and ultimately, system failure.

The Manufacturing and Anatomy of Flexible Copper Busbars

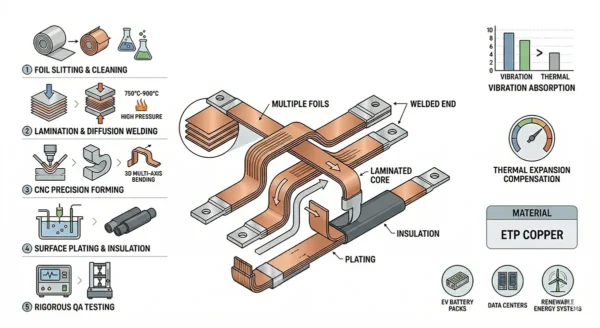

To solve the insurmountable physical limitations of rigid conductors, the industry developed the Flexible Copper Busbar. This is not merely a cable, but a highly engineered conductive element designed to match the massive current-carrying capacity of a solid bar while introducing mechanical adaptability, vibration dampening, and spatial versatility.

At JUMAI, we categorize our flexible transmission products into two distinct, highly specialized classes: Laminated Foil Busbars and Braided Wire Connectors. Each requires advanced, precision manufacturing techniques.

1. Laminated Flexible Copper Busbars (Foil Busbars)

Laminated flexible busbars are the standard for high-amperage, space-constrained routing. Instead of a single solid block of copper, these busbars are constructed from multiple layers of ultra-thin, highly purified copper foils. Typically, each individual foil layer ranges from 0.05mm to 0.3mm in thickness.

To create a functional busbar, dozens or even hundreds of these foils are stacked tightly together. The critical manufacturing step involves fusing the ends of this stack to create a solid, drillable connection point, while leaving the center section completely unfused.

Advanced Welding Technologies:

• Press Welding (Diffusion Bonding): At JUMAI’s custom busbar processing facilities, we frequently utilize advanced diffusion bonding. The stacked foils are subjected to immense hydraulic pressure and high heat simultaneously at the terminal ends. At the atomic level, the copper atoms migrate across the foil boundaries, fusing the layers into a single, completely solid mass of copper without the use of any filler metals, solder, or flux. This ensures the connection terminal retains 100% of the conductivity of pure copper.
• Electron Beam and Laser Welding: For specialized applications, particularly in EV battery pack manufacturing, high-energy laser or electron beam welding is used to create precise, deep-penetration welds at the contact pads, ensuring rapid production and unparalleled reliability.

The brilliance of the laminated busbar lies in its center. Because the foils are not welded in the middle, they can slide independently against one another when the busbar is bent. This behaves much like a deck of playing cards; bending a solid deck is impossible, but if the cards can slide, the deck bends easily. This allows a laminated busbar carrying 2000 amps to be easily folded, twisted, and routed by hand during installation, without fatiguing the metal or requiring hydraulic equipment.

2. Braided Copper Connectors

When extreme, omnidirectional flexibility and maximum vibration absorption are required, braided copper busbars are the ultimate solution. These are constructed by weaving together thousands of microscopic bare or tinned copper wires (often 0.10mm to 0.15mm in diameter) into a flat or tubular braid.

The terminal ends are inserted into pure copper tubes (ferrules) and subjected to massive cold-pressing forces, creating a seamless, gas-tight mechanical and electrical connection. The resulting product can absorb multi-axis movement and high-frequency harmonics, making it the mandatory standard for expansion joints and transformer connections.

Table 2: Anatomy Comparison: Solid vs. Laminated vs. Braided

Advanced Ampacity Dynamics and the High-Frequency Skin Effect

The discussion of Solid vs. Flexible busbars cannot be fully resolved without addressing Alternating Current (AC) physics. When a customer contacts JUMAI regarding the customization of copper busbars, one of the most critical calculations our engineers perform is determining the true AC ampacity based on the operating frequency of the system.

The Menace of the Skin Effect

In a Direct Current (DC) system, electrons flow smoothly and uniformly through the entire cross-sectional area of a copper busbar. A $100\text{mm} \times 10\text{mm}$ solid bar utilizes all $1000\text{mm}^2$ of its copper to transmit power.

However, in an Alternating Current (AC) system, the rapidly changing direction of the current generates alternating magnetic fields within the conductor itself. These magnetic fields induce localized eddy currents that push the primary electron flow away from the center of the conductor and outward toward the surface. This phenomenon is known as the Skin Effect.

The higher the frequency of the AC power, the more pronounced the skin effect becomes. The depth to which the current penetrates the conductor is known as the “Skin Depth” ($\delta$), calculated by the following standard electromagnetic formula:

$$\delta = \sqrt{\frac{2\rho}{\omega\mu}}$$

Where:

• $\rho$ = Resistivity of the conductor
• $\omega$ = Angular frequency of current ($2\pi f$)
• $\mu$ = Absolute magnetic permeability of the conductor

According to data recognized by global regulatory bodies such as the International Electrotechnical Commission (IEC), at a standard grid frequency of 60Hz, the skin depth of copper is approximately 8.5 mm.

The Solid Busbar AC Penalty

What does this mean for a solid busbar? It means that if you are using a thick solid copper busbar (e.g., 20mm thick) to carry 60Hz AC power, the very center of that busbar is practically devoid of current. The electrons are crowded along the outer 8.5mm rim. You are paying for the heavy, expensive copper core, but it is providing almost zero electrical benefit. The effective resistance of the busbar increases significantly compared to its DC rating, leading to dramatically higher operating temperatures and energy loss.

The Flexible Laminated Advantage in High-Frequency AC

Flexible Laminated Copper Busbars provide a profound engineering advantage in combating the skin effect. Because the busbar is composed of numerous ultra-thin layers separated by microscopic gaps (and the natural surface oxidation between the foils), the total surface area of the conductor is massively increased compared to a solid block.

These internal foil boundaries disrupt the massive internal eddy currents that cause the skin effect. The current is forced to distribute much more evenly across the entire stack of foils. As a result, the AC-to-DC resistance ratio ($R{ac}/R{dc}$) of a laminated flexible busbar is significantly lower than that of a solid busbar of equivalent cross-sectional area.

This advantage becomes absolutely critical in modern applications like solar power inverters, variable frequency drives (VFDs), and induction heating systems, which often operate at high frequencies ranging from 400Hz to over 10,000Hz. At these frequencies, a solid busbar becomes little more than a massive resistor, while a properly configured flexible foil or braided busbar remains highly efficient.

Table 3: Empirical Ampacity and Efficiency Comparison (AC 60Hz, Standard Open Air, $45^\circ\text{C}$ Rise)

Note: Data points represent generalized baseline values for Cu-ETP configurations. Exact ampacity requires strict adherence to specific operational environment parameters and insulation types.

Conclusion from Data: As the cross-sectional area and the current requirements scale upwards, the performance gap between solid and flexible busbars widens significantly in favor of the flexible solution.

Vibration, Thermal Expansion, and Mechanical Stress Mitigation

Having established the electrical superiority of flexible busbars in high-frequency applications, we must return to their primary mechanical advantages: vibration dampening and thermal stress relief.

The S-N Curve and Fatigue Failure

In mechanical engineering, the durability of a material under cyclic loading (vibration) is plotted on an S-N curve (Stress vs. Number of Cycles to Failure). Solid copper, while strong under static loads, is highly susceptible to fatigue failure when subjected to high-frequency vibrations. Micro-fissures develop at the points of highest stress—typically right at the bolted connection hole. Over millions of microscopic vibrations (which can occur in a matter of days in a heavy industrial machine), these fissures propagate until the bar snaps catastrophically.

Because Laminated and Braided Flexible Busbars consist of independent strands or foils, they cannot propagate a single solid fracture. The internal friction between the sliding foils actually acts as a mechanical dampener, absorbing the kinetic energy and converting it to microscopic amounts of heat rather than transferring it to the terminal.

The “Built-In” Expansion Joint

Earlier, we calculated that a 4-meter solid busbar expanding by 5.31mm could destroy its mounting hardware. When a Laminated Flexible Copper Busbar is utilized in the same scenario, no complex expansion joints are required. The inherent slack designed into the flexible routing simply “bows” outward by an imperceptible fraction of a millimeter to absorb the thermal expansion.

This mechanical isolation ensures that the delicate, expensive components to which the busbar is connected—such as high-power IGBT (Insulated-Gate Bipolar Transistor) modules or transformer bushings—experience exactly zero static load, drastically extending the lifespan of the entire system.

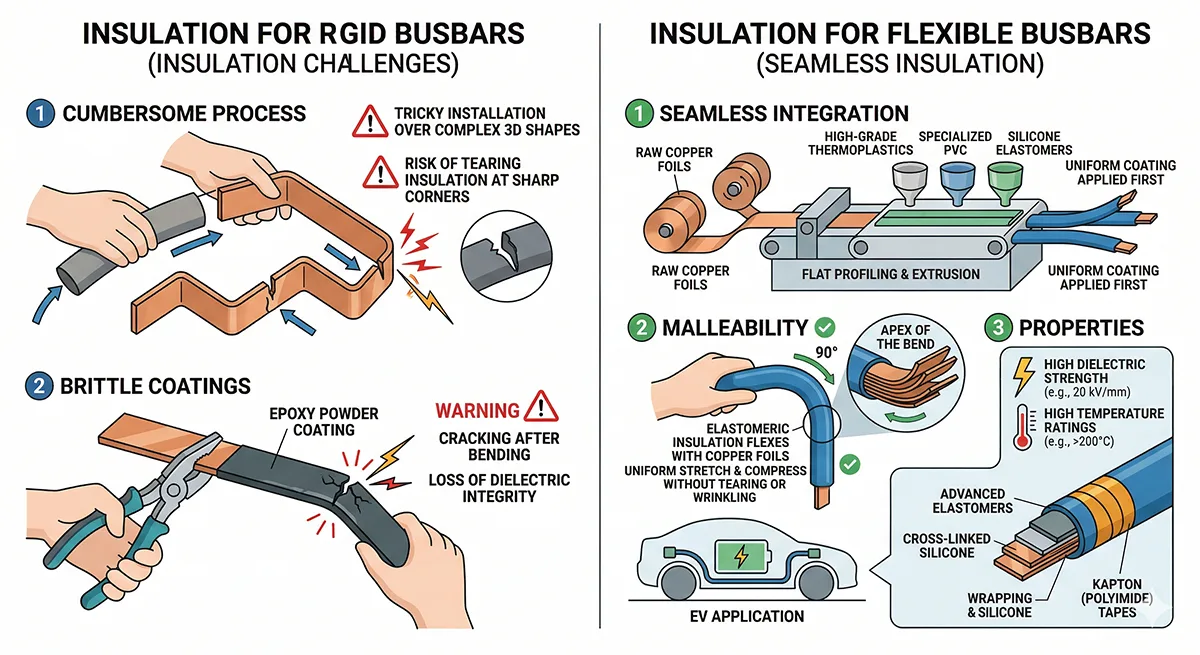

Electrical Insulation Technologies and Dielectric Integrity

A busbar is only as safe as its insulation. In the cramped quarters of modern electrical cabinets, bare copper is a severe arc-flash hazard. The Institute of Electrical and Electronics Engineers (IEEE) and various global safety agencies mandate strict creepage and clearance distances between live conductors. Insulating busbars allows engineers to dramatically shrink these clearance distances, saving highly valuable cabinet space.

Insulating Solid Busbars: A Cumbersome Process

Insulating a rigid, solid busbar is problematic. If the bar is straight, heat-shrink tubing can be applied. However, if the solid bar has been bent into a complex 3D shape via a press brake, sliding a tight heat-shrink tube over the multiple sharp corners is incredibly difficult and often results in tearing the insulation.

Alternatively, solid busbars can be dipped in epoxy powder coatings. While effective, epoxy coatings are brittle. If the solid bar needs to be slightly bent or adjusted after the coating is applied during installation, the epoxy will crack, instantly compromising the dielectric barrier.

The Seamless Insulation of Flexible Busbars

Flexible copper busbars offer vastly superior insulation integration. Because they are manufactured in straight, flat profiles before they are ever bent, high-quality insulation can be uniformly applied via continuous extrusion.

At JUMAI’s production facilities, we utilize high-grade thermoplastic polymers, specialized Polyvinyl Chloride (PVC), and advanced Silicone elastomers for our flexible laminated copper busbars.

• Dielectric Strength: Extruded PVC on a flexible busbar regularly provides a dielectric strength of 20 kV/mm. This creates an impenetrable barrier against arcing.
• Malleability: Because the insulation is an extruded elastomer, it is designed to flex with the copper foils. When an installer bends the laminated busbar 90 degrees to fit it into an EV battery enclosure, the PVC insulation stretches and compresses uniformly without tearing, wrinkling, or losing its dielectric rating at the apex of the bend.
• High-Temperature Ratings: For extreme environments, flexible busbars can be jacketed with cross-linked silicone or wrapped in high-grade Kapton (Polyimide) tapes, providing stable operation in ambient temperatures exceeding $200^\circ\text{C}$ while retaining complete flexibility.

Industry-Specific Applications and Custom Solutions

To bridge the gap between theoretical physics and real-world procurement, we must examine how specific industries heavily lean toward flexible vs. solid busbars. JUMAI’s extensive history supplying both standard components and specialized deep drawing dies (used to manufacture the structural housings for these busbars) gives us a unique perspective on industry demands.

1. The Electric Vehicle (EV) and Energy Storage System (BESS) Sector

• The Engineering Environment: Extreme vibration (road noise, terrain impact), severe spatial constraints (packing maximum cells into minimum volume), high current spikes (rapid acceleration), and absolute mandates for weight reduction and thermal stability.
• The Verdict: Flexible Busbars are Mandatory. The rigid nature of a solid busbar makes it an impossibility for cell-to-cell EV connections. A solid bar would violently snap the delicate cell terminals during the first major pothole impact. Automakers rely exclusively on advanced Laminated Foil Busbars and high-capacity Braided Connectors to route power safely while absorbing kinetic shocks and allowing for minute shifts in cell sizing during thermal cycling.

2. Renewable Energy Generation (Wind and Solar)

• The Engineering Environment: Offshore wind turbines endure relentless mechanical swaying, high-humidity salt-fog corrosion, and massive low-frequency vibrations. Utility-scale solar farms deal with blistering daytime heat, freezing nights, and high-frequency inverter outputs.
• The Verdict: Flexible Busbars Dominate. A wind turbine nacelle utilizing solid busbars for its generator-to-transformer link would suffer catastrophic mechanical shearing within months. Braided flexible copper busbars act as the vital shock absorbers. In solar inverters, the superior AC ampacity of laminated busbars mitigates the high-frequency skin effect, keeping the inverters running cooler and more efficiently.

3. Hyper-Scale Data Centers and Cloud Computing

• The Engineering Environment: Incalculable demand for power density. Every square inch of a server rack is monetized. Systems must be modular, hot-swappable, and capable of being upgraded without shutting down the entire facility.
• The Verdict: A Hybrid Architecture. Solid busbars still reign supreme for the massive, straight overhead power trunk lines (busways) running the length of the data hall, due to their low cost per meter for straight runs. However, the critical “drop” connections—routing power from the rigid overhead trunk down into the cramped, complex architecture of the individual PDU and server racks—are almost exclusively handled by highly insulated Laminated Flexible Busbars, allowing technicians to bend and route power tightly around cooling pipes and data cables.

4. Heavy Smelting, Electroplating, and Chlorine Production

• The Engineering Environment: Stationary, massive industrial vats requiring 50,000 to over 100,000 amps of pure, low-voltage Direct Current (DC). The environment is highly corrosive, but completely static (no vibration, no space constraints).
• The Verdict: Massive Solid Copper Busbars. In these legacy heavy industries, the sophisticated features of flexible busbars are completely unnecessary. The sole objective is maximizing raw cross-sectional area to handle the monumental DC amperage. Massive cast or extruded solid copper slabs, sometimes weighing tons, are bolted together to create the lowest possible resistance path.

Total Cost of Ownership (TCO) and Installation Economics

Procurement departments often face a dilemma: a raw Solid Copper Busbar is fundamentally cheaper to purchase per kilogram than a highly engineered, precision-welded Laminated Flexible Copper Busbar. If a project requires 10,000 units, the initial Bill of Materials (BOM) cost will heavily favor the solid bar.

However, professional procurement and engineering leaders evaluate financial viability through the lens of Total Cost of Ownership (TCO). The TCO calculates not just the raw material, but the cost of labor, installation time, specialized tooling, maintenance, system downtime, and required supplementary hardware.

The Hidden Costs of Solid Busbar Installation

1. Specialized Tooling: Bending and routing solid busbars requires expensive hydraulic press brakes, heavy-duty hole punchers, and highly trained technicians to operate them.
2. Scrap Rates: If a technician miscalculates the bend radius of a solid bar by a few degrees, the bar cannot be easily un-bent without severe metal fatigue. It becomes scrap. High scrap rates destroy the initial BOM cost advantage.
3. Installation Time: Forcing a rigid piece of metal to perfectly align with two fixed mounting studs is a time-consuming battle. It often involves loosening structural brackets, aligning the bar, bolting it down, and re-tightening the entire cabinet.
4. Supplementary Hardware: Solid busbar systems require the purchase of secondary flexible expansion shunts and heavier, more expensive standoff insulators to handle thermal expansion and short-circuit stress.

The Economic Advantages of Flexible Busbars

1. Rapid Hand-Assembly: Flexible laminated busbars drastically reduce the need for specialized tooling on the assembly floor. Because they are highly forgiving, an assembly worker can grab the busbar, bolt one end, bend the busbar by hand to perfectly align with the second terminal, and secure it.
2. Labor Savings: Time-motion studies in high-volume manufacturing (such as EV and PDU assembly) demonstrate that flexible busbars can reduce routing and bolting time by up to 50%. When calculating factory labor rates, saving 4 minutes per connection across millions of connections yields a massive financial return.
3. Zero Alignment Stress: Because the busbar flexes to meet the terminal, there is zero static load placed on the bolts. This eliminates the need for routine maintenance to re-torque loosened bolts caused by vibrational backing-out, reducing expensive field-service calls.
4. Volume Efficiency: The superior AC efficiency and dense insulation allow for thinner busbars and smaller electrical cabinets. Reducing the size of the steel cabinet itself provides a secondary, yet significant, cost saving.

When evaluated comprehensively, the higher initial unit cost of a Flexible Copper Busbar is rapidly amortized by the immense savings in labor, tooling, hardware consolidation, and long-term system reliability, resulting in a significantly lower TCO for dynamic projects.

Future Trends in Custom Busbar Manufacturing

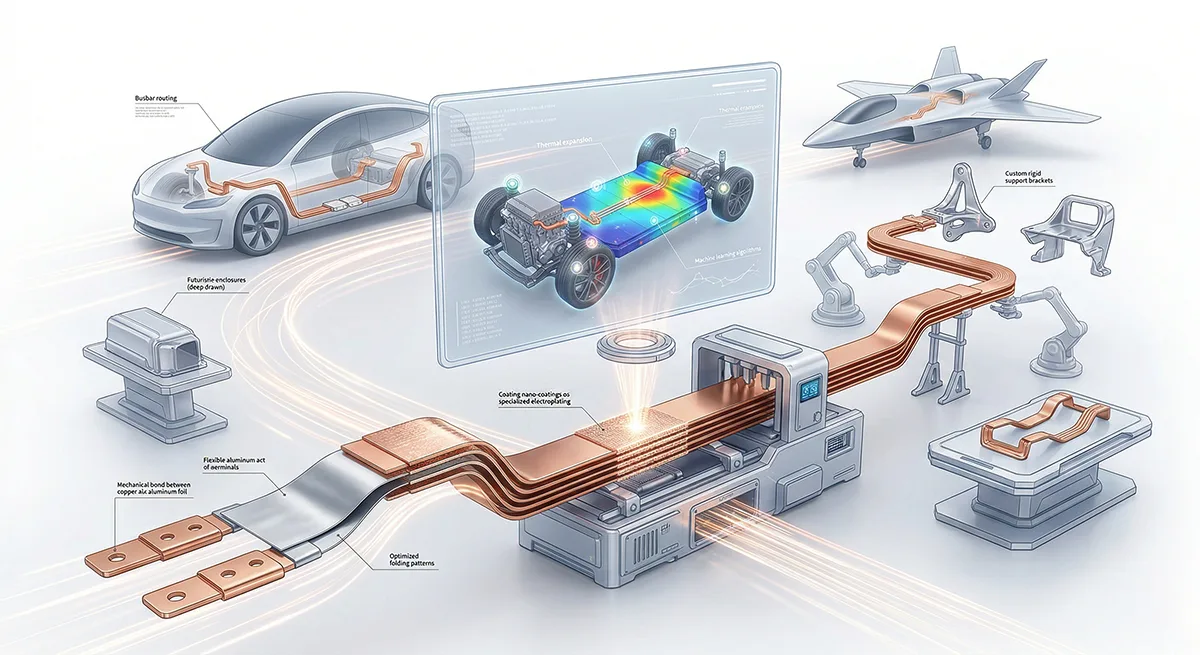

The evolution of power transmission is a continuous cycle. As demands increase, manufacturing capabilities must advance in tandem. At JUMAI, we are actively investing in the future of customized power solutions.

• Advanced Coating Technologies: We are exploring nano-coatings and specialized electroplating techniques that enhance the surface conductivity of individual foils within a laminated stack, further reducing high-frequency AC resistance.
• AI-Assisted Routing Design: The complexities of 3D routing within compact EVs are moving beyond human drafting. We are integrating advanced software algorithms to digitally simulate thermal expansion and vibration nodes, allowing us to mathematically optimize the precise folding patterns and foil thicknesses of our flexible busbars before physical prototyping begins.
• Hybrid Material Integration: For environments prioritizing extreme weight reduction (such as aerospace), R&D is heavily focused on perfecting the mechanical bonding of copper terminals to flexible aluminum foils, seeking the optimal balance between conductivity and mass.

The integration of high-precision deep drawing accessories also allows us to manufacture custom, highly rigid support brackets and enclosures that perfectly complement our flexible busbar routing, providing our B2B clients with a seamless, end-to-end electrical packaging solution.

Securing the Future of Power Transmission

The comprehensive engineering analysis yields a definitive conclusion: The debate between Flexible Copper Busbars and Solid Busbars is not a matter of one material obsoleting the other, but a matter of deploying the correct physical architecture to match the operational environment.

Solid Copper Busbars remain the undisputed heavyweights of static, linear, and massive DC power distribution. Their unmatched rigidity, structural load-bearing capacity, and raw volumetric conductivity make them the optimal, budget-friendly choice for legacy utility grids, overhead busways, and heavy smelting applications.

However, the future of global electrification—characterized by electric vehicles, renewable energy, and hyper-dense data processing—demands adaptability. Flexible Copper Busbars, encompassing both Laminated Foil and Braided Wire variants, are the technological imperative for modern power routing. They uniquely solve the critical engineering bottlenecks of the 21st century: mitigating the high-frequency AC skin effect, absorbing destructive mechanical vibrations, natively resolving severe thermal expansion, and enabling rapid, error-free installation in intensely cramped spaces.

By transitioning from rigid legacy systems to advanced flexible solutions, modern manufacturers can significantly reduce their Total Cost of Ownership (TCO), increase system longevity, and ensure their hardware meets the rigorous safety and performance standards of a rapidly electrifying world.

At JUMAI, we recognize that no two power systems are identical. Your unique spatial constraints, thermal loads, and vibrational environments require precise, engineered solutions. Whether your specifications demand the immovable stability of massive solid copper, the intricate precision of our deep-drawn accessory manufacturing, or the sophisticated, multi-axis adaptability of our custom Flexible Laminated Copper Busbars, our engineering and production teams are prepared to execute.

Do not compromise the integrity of your next-generation hardware with outdated transmission philosophy. Ensure your power systems are engineered to adapt, survive, and thrive in the most demanding environments on earth.
