The evolution of industrial automation and renewable energy integration has forced a radical shift in enclosure design. As data centers, EV charging stations, and industrial control hubs shrink in size while growing in power density, the demand for sophisticated Rigid Busbar solutions has reached an all-time high. At JUMAI TECH, we recognize that a busbar is no longer just a “hunk of copper.” It is a precision-engineered component that must balance electrical conductivity, thermal dissipation, and structural integrity within a footprint that leaves zero room for error. Designing for compact cabinets requires a departure from “standard” configurations toward optimized, custom-engineered geometries that maximize every millimeter of available space.
Table of Contents

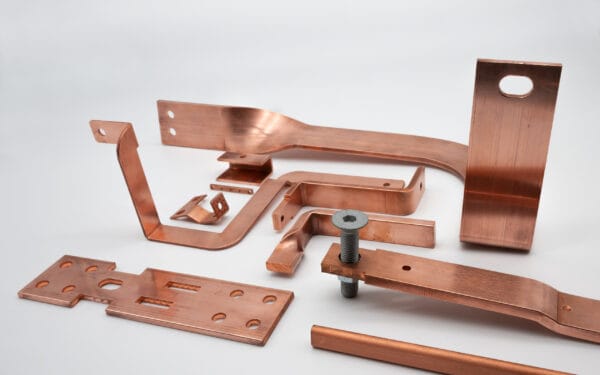

Fundamental Principles of Rigid Busbar Integration

In a compact cabinet, space is the most expensive commodity. Standard wiring often fails in these environments because cables require significant bend radii and bulky lugs. Rigid busbars, however, offer a streamlined alternative that can be formed into complex shapes to hug the internal contours of the enclosure.
Material Selection: Beyond Standard Copper
While ETP (Electrolytic Tough Pitch) copper remains the gold standard for conductivity, compact designs often require us to look at high-performance alloys or specific plating.
- Oxygen-Free Copper (OFC): Essential for high-vacuum or hydrogen-rich environments often found in specialized compact power electronics.
- Aluminum 6101-T6: Used when weight reduction is as critical as space reduction, though it requires larger cross-sections to match copper’s ampacity.
- Silver vs. Tin Plating: Silver offers the lowest contact resistance, crucial for minimizing heat generation in poorly ventilated, tight spaces.
The Geometry of Space Saving
The transition from round cables to rectangular rigid busbars is the first step in “compacting” a design. Rectangular bars have a higher surface-area-to-cross-section ratio, which significantly improves natural convective cooling. In a compact cabinet, this allows for higher current densities without exceeding the thermal limits of the surrounding components.
Engineering for Thermal Efficiency in Tight Spaces
In a large walk-in switchgear room, heat is easily managed. In a compact cabinet, heat is the enemy of longevity. A rigid busbar must be designed as a heat sink as much as a conductor.
Current Density and Heat Dissipation
In restricted environments, we cannot rely on high airflow. We must calculate the “Skin Effect” and “Proximity Effect” with extreme precision. For AC applications, the current tends to flow on the outer surface of the conductor. By using multiple thinner rigid busbars in parallel (laminated or spaced) rather than one thick bar, we increase the surface area and improve cooling efficiency.
Thermal Expansion Management
Rigid busbars, unlike flexible cables, do not “absorb” expansion easily. In a compact cabinet, temperature swings cause the metal to grow and shrink. If the design is too rigid, this puts immense stress on the ceramic insulators or the switchgear terminals. At JUMAI TECH, we integrate “expansion offsets” or “omega bends” into the rigid bar design to allow for longitudinal movement without compromising the seal of the cabinet.
Comparative Conductivity and Thermal Data
To understand why we prioritize specific materials in compact designs, consider the following technical benchmarks:
| Property | Copper (ETP) | Aluminum (6101-T6) | Silver (Plating Layer) |
| Electrical Conductivity (% IACS) | 101% | 61% | 106% |
| Thermal Conductivity (W/m·K) | 391 | 218 | 429 |
| Tensile Strength (MPa) | 200–300 | 200 | 170 |
| Melting Point (°C) | 1083 | 660 | 962 |
Advanced Manufacturing Techniques for Custom Rigid Busbars
At JUMAI TECH, our experience in Deep-Drawn Components and Precision Stamping allows us to create busbars that other shops find “impossible.”
CNC Bending and Multi-Axis Forming
To fit inside a compact cabinet, a rigid busbar often needs to clear obstacles like PLC units, cooling fans, and mounting rails. We utilize multi-axis CNC bending to create complex 3D paths. This ensures that the busbar maintains a consistent distance from grounded metal parts, adhering to IEC 61439 standards for clearance and creepage.
Precision Stamping for Connection Points
The connection point is where most failures occur. Through precision stamping, we can create “integrated bosses” or recessed mounting holes that reduce the profile of the bolt assembly. In a compact cabinet, even the height of a bolt head matters. By countersinking connections into the rigid busbar, we save precious millimeters of clearance.
The Role of Deep Drawing in Busbar Accessories
Sometimes, a rigid busbar needs a specialized housing or a protective cap to prevent accidental contact in tight quarters. Our expertise in Deep Drawing allows us to manufacture seamless copper or brass “boots” and end-caps that provide superior shielding compared to molded plastic, especially in high-EMI environments.
Insulation Systems for High-Density Layouts

When busbars are placed close together to save space, the air between them is no longer enough to prevent arcing.
Epoxy Powder Coating vs. Heat Shrink
- Epoxy Coating: This is our preferred method for compact rigid busbars. It provides a uniform, high-dielectric strength coating (up to 20kV/mm) that follows every contour of a complex bend. It is thinner than heat shrink, allowing bars to be placed closer together.
- Heat Shrink Tubing: While cost-effective, it can “thin out” at sharp corners during the shrinking process, creating potential weak points in the insulation.
Creepage and Clearance Optimization
In compact designs, we often utilize insulating barriers (GPO-3 or Polycarbonate) between rigid busbars. This allows us to reduce the physical air gap (clearance) while maintaining the required “creepage” distance (the path across the surface of the insulator). This is a critical hack for shrinking cabinet depth by up to 30%.
Comparative Insulation Dielectric Strengths
| Insulation Type | Typical Thickness (mm) | Dielectric Strength (kV/mm) | Max Operating Temp (°C) |
| Epoxy Powder | 0.3 – 0.8 | 15 – 20 | 130 |
| PVC Heat Shrink | 1.0 – 2.0 | 12 – 15 | 105 |
| Polyester Film | 0.1 – 0.2 | 50+ | 150 |
| Air (Standard) | N/A | ~3 | N/A |
Structural Integrity and Short-Circuit Resistance
A compact cabinet doesn’t just need to handle steady current; it must survive a fault.
Mechanical Bracing in Limited Space
During a short circuit, electromagnetic forces try to push the busbars apart or pull them together with thousands of pounds of force. In a large cabinet, you can use massive fiberglass braces. In a compact cabinet, the bracing must be integrated into the busbar geometry itself. We design “interlocking” bar profiles that use their own shape to resist deflection.
Vibration Damping for Industrial Environments
Many compact cabinets are mounted directly on machinery (like CNC mills or wind turbine nacelles). Rigid busbars are susceptible to fatigue from vibration. We implement specialized mounting clips with elastomeric inserts that isolate the rigid busbar from the cabinet’s vibration, preventing the work-hardening of the copper that leads to cracks over time. According to research published by IEEE Xplore, mechanical resonance in busbar systems is a leading cause of long-term connection degradation.
Application-Specific Rigid Busbar Strategies
Designing for a compact cabinet is never a “one size fits all” task. The industry vertical—whether it be Renewable Energy, Data Centers, or Electric Vehicle (EV) Infrastructure—dictates the specific stress factors the rigid busbar must endure.
Electric Vehicle (EV) Charging Infrastructure
In DC fast-charging stations, we are dealing with massive current throughput (often exceeding 400A) in a footprint no larger than a standard parking bollard.
- Thermal Management: Because these cabinets are often sealed to an IP65 rating to protect against weather, heat cannot escape via fans. We design rigid busbars with integrated thermal vias or cooling fin geometries that pull heat away from the power modules and toward the aluminum casing of the charger itself.
- Compact Routing: Every millimeter saved in the busbar path is a millimeter gained for cooling ducts or larger capacitors. We use custom-stamped offsets to “layer” the positive and negative bars with a thin dielectric film between them, minimizing the magnetic field and the physical footprint.
Data Centers and Hyperscale Computing
In the world of “White Space” and server racks, the Rigid Busbar is the backbone of the Open Rack V3 (ORV3) standard.
- Voltage Drop Minimization: In a 48V DC architecture, even a tiny resistance leads to a significant percentage of power loss. Our rigid busbar designs utilize ultra-pure C10100 copper to ensure that the voltage at the top of the rack is identical to the voltage at the bottom.
- Plug-and-Play Interfaces: Compact data center cabinets require “blind-mate” connections. We manufacture rigid busbars with precision-machined “stabs” or “fingers” that allow server blades to be hot-swapped without manual bolting, ensuring a perfect contact surface every time.
Precision Manufacturing: The JUMAI TECH Advantage

As experts in Deep-Drawn Components and Precision Stamping, we understand that the quality of a rigid busbar is determined long before it reaches the assembly line. It begins in the tool and die shop.
The Role of Precision Stamping Dies
In compact cabinets, “close enough” isn’t good enough. If a busbar is off by 0.5mm, it might touch a grounded frame under thermal expansion.
- Progressive Die Tooling: For high-volume projects, we use progressive stamping dies that cut, pierce, and form the busbar in a single continuous process. This ensures that every hole alignment and every bend angle is identical across thousands of units.
- Edge Conditioning: A common failure point in compact systems is “corona discharge” at sharp edges. Our stamping process includes an automated deburring and radiusing stage. By rounding the edges of the rigid busbar to a specific radius, we smooth out the electric field, preventing ozone buildup and insulation breakdown.
Deep Drawing for Specialized Connectors
While most busbars are flat or bent, some compact designs require 3-dimensional socket-style connectors.
- Seamless Integration: Using deep drawing, we can create cup-shaped or tubular extensions from a single piece of copper. This eliminates the need for brazing or welding, which are common points of high electrical resistance.
- Material Flow Control: Our engineers calculate the thinning of the copper during the deep-drawing process to ensure that even at the deepest point of the “cup,” the cross-sectional area remains sufficient to carry the rated current without overheating.
Comparative Manufacturing Tolerances
| Process | Typical Tolerance (mm) | Surface Finish (Ra) | Best For |
| Manual Hydraulic Bending | ± 1.5 mm | N/A | Low-volume, simple shapes |
| CNC Multi-Axis Bending | ± 0.3 mm | 0.8 μm | Complex paths in tight spaces |
| Precision Stamping | ± 0.05 mm | 0.4 μm | High-volume, integrated features |
| Deep Drawing | ± 0.1 mm | 0.2 μm | 3D connectors and housings |
Advanced Fastening and Contact Technologies
In a compact cabinet, you often don’t have the “swing room” for a massive torque wrench. This necessitates innovative fastening solutions that ensure long-term reliability.
Belleville Washers and Constant Tension
Copper “creeps” over time under pressure. In a cramped enclosure where maintenance is difficult, we specify the use of Belleville (conical) spring washers. These washers maintain a constant clamping force on the rigid busbar joint even as the metal expands and contracts, preventing the “loose bolt” syndrome that leads to catastrophic fires.
Cold Welding and Ultrasonic Joining
For certain ultra-compact applications, mechanical fasteners are too bulky.
- Ultrasonic Welding: We can join two rigid busbars or join a busbar to a terminal lug using high-frequency ultrasonic vibrations. This creates a molecular bond with near-zero resistance and zero physical footprint from bolts or nuts.
- Friction Stir Welding: This is particularly useful when joining dissimilar metals, such as an aluminum rigid busbar to a copper terminal, preventing the galvanic corrosion that usually plagues these joints.
Contact Pressure and Resistance Data
Research from the Copper Development Association (CDA) highlights the critical relationship between clamping force and electrical efficiency:
| Clamping Force (kN) | Contact Resistance (μΩ) | Heat Gen at 1000A (Watts) |
| 5 kN | 12.5 | 12.5 W |
| 10 kN | 6.2 | 6.2 W |
| 20 kN | 3.1 | 3.1 W |
| 40 kN | 2.8 | 2.8 W |
Note: Diminishing returns occur after 20kN, where the risk of deforming the copper outweighs the resistance gains.
Maintenance and Safety in High-Density Enclosures
A rigid busbar system is largely “set and forget,” but in compact cabinets, “forgetting” can be dangerous if the initial design didn’t account for accessibility.
Infrared (IR) Inspection Windows
Because compact cabinets are often crowded, it’s impossible to use a thermal camera safely while the equipment is energized. We recommend the integration of IR Windows in the cabinet door, aligned perfectly with the main rigid busbar junctions. This allows maintenance teams to check for hot spots without opening the cabinet or risking an arc flash.
Phase Identification and Error-Proofing (Poka-Yoke)
In the darkness of a cramped cabinet, it’s easy to cross phases.
- Color-Coded Insulation: We offer epoxy coating in standard Phase colors (Red, Yellow, Blue/Black) or per NEC/IEC standards. This isn’t just for aesthetics; it’s a critical safety feature that prevents wiring errors during field upgrades.
- Keyed Mounting: We design custom rigid busbars with “keyed” mounting holes that only allow the bar to be installed in the correct orientation. In a compact space, this “Poka-Yoke” approach saves hours of troubleshooting.
The Future of Rigid Busbars: Smart Integration

As we look toward the future of “Industry 4.0,” the rigid busbar is evolving from a passive conductor to a “smart” component.
Integrated Sensing
At JUMAI TECH, we are experimenting with embedding fiber-optic temperature sensors directly into the epoxy coating of the rigid busbar. This allows for real-time thermal monitoring across the entire length of the power path, providing data to the Building Management System (BMS) before a failure occurs.
Modular “LEGO” Style Systems
To reduce the time spent on custom engineering, we are developing modular rigid busbar segments that can be snapped together. This allows for rapid prototyping of compact cabinets while maintaining the high electrical standards of a custom-engineered solution.
Engineering Your Success with JUMAI TECH
Designing a Rigid Busbar for a compact cabinet is an exercise in compromise and precision. It requires a deep understanding of metallurgy, thermodynamics, and mechanical engineering. As your partner, JUMAI TECH brings decades of experience in Precision Stamping Dies, Deep-Drawn Components, and custom busbar fabrication to the table. We don’t just provide parts; we provide the electrical backbone that allows your compact innovations to run cooler, safer, and more efficiently.
Whether you are shrinking a power inverter for a solar farm or densifying a server rack for an AI data center, the geometry of your power distribution is the key to your product’s success.
