In the evolving landscape of power distribution, the demand for higher efficiency, smaller footprints, and extreme reliability has never been greater. As industries move toward high-current applications—driven by the explosion of renewable energy and the electrification of transport—engineers are increasingly turning away from traditional round wire cables. At JUMAI TECH, we specialize in the precision manufacturing of these critical components, ensuring that every Rigid Busbar we produce meets the stringent tolerances required for modern infrastructure.
A Rigid Busbar is essentially a solid conductor (usually copper or aluminum) used to carry substantial electrical currents between components within a power system. Unlike flexible cables, these are pre-formed, structural elements that offer a level of consistency and performance that braided or stranded wires simply cannot match. In this article, we will analyze why rigid systems are the superior choice for high-demand environments.
Table of Contents

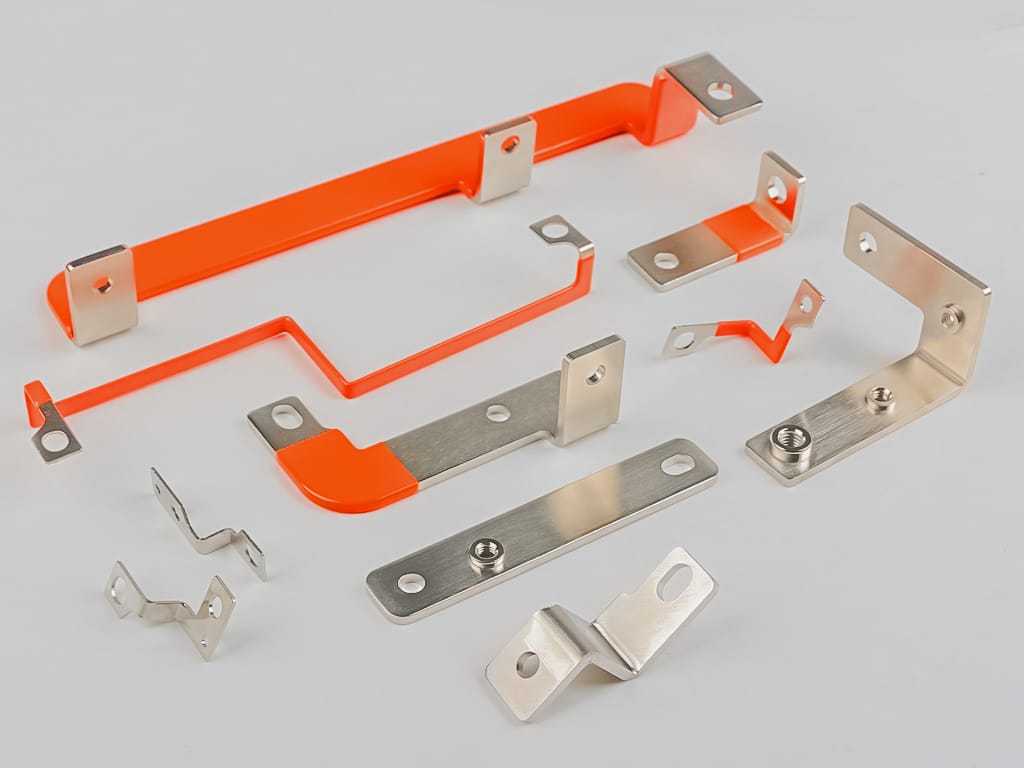

Superior Space Efficiency and Compact Design
One of the most immediate advantages of implementing a Rigid Busbar system is the dramatic reduction in the physical envelope required for power distribution. In modern engineering, “space is money,” especially in densely packed server racks or EV battery packs.
Minimal Bend Radii and Geometric Precision
Traditional cables require a significant “bend radius” to prevent damage to the insulation and the internal strands. This often results in “dead space” within an enclosure where cables are looped or coiled. In contrast, rigid busbars can be engineered with sharp 90-degree bends and complex offsets using precision stamping dies. This allows the conductor to hug the contours of the internal housing, reclaiming up to 50% of the volume previously occupied by cable bundles.
Elimination of “Cable Nesting”
When dealing with high-amperage systems, you often need multiple thick cables to carry the load. These bundles are bulky and difficult to manage. A single, well-designed rigid busbar can replace a dozen cables, streamlining the interior of the cabinet. This not only looks professional but also significantly simplifies the mechanical design of the system.
| Feature | Traditional Cable Bundles | JUMAI TECH Rigid Busbars |
| Space Occupancy | High (due to bend radius) | Low (precision formed) |
| Complexity | High (requires cable ties/trays) | Low (self-supporting) |
| Airflow Interference | High | Minimal |
Enhanced Thermal Management and Heat Dissipation
Heat is the enemy of electrical efficiency. As current flows through a conductor, resistance generates heat ($P = I^2R$). Managing this temperature rise is critical to the longevity of the entire system.
Increased Surface Area-to-Volume Ratio
Physics favors the flat geometry of a Rigid Busbar. A flat rectangular bar has a much higher surface area compared to a round cable of the same cross-sectional area. This increased surface area allows for much more efficient convective heat transfer to the surrounding air. According to research on thermal modeling of busbars, flat conductors can operate at higher current densities than round wires while maintaining a lower core temperature.
Direct Heat Sinking Capabilities
Because rigid busbars are solid and stable, they can be easily mounted to heat sinks or even integrated with liquid cooling cold plates. At JUMAI TECH, we often manufacture busbars with specific surface finishes—such as tin, silver, or nickel plating—to optimize thermal contact resistance at connection points. This ensure that “hot spots” are minimized, preventing premature failure of connected components like IGBTs or capacitors.
Unmatched Electrical Performance and Reliability
When we talk about high-performance power systems, consistency is everything. A Rigid Busbar provides a level of electrical predictability that cables cannot replicate.
Lower Impedance and Voltage Drop
The solid structure of a copper busbar ensures a uniform cross-section, which results in lower overall impedance. In long-run power distribution, even a small reduction in resistance leads to significant energy savings and reduced voltage drop. This is vital for applications like Data Center Power Distribution, where even a 1% efficiency gain can save thousands of dollars in annual energy costs.
Reduced Skin Effect in High-Frequency Applications
While busbars are often used for DC or 50/60Hz AC, in applications involving high-frequency switching (like modern inverters), the “skin effect” becomes a factor. The flat geometry of a rigid busbar provides a more favorable path for high-frequency current compared to thick, solid round conductors.
High Short-Circuit Withstand Strength
In the event of a short circuit, massive mechanical forces (electromagnetic forces) are generated between conductors. Flexible cables can whip violently, leading to catastrophic insulation failure or physical damage to the enclosure. Rigid busbars, when properly supported by insulated standoffs, are mechanically braced to withstand these forces, ensuring the system remains intact even under fault conditions.
Simplified Installation and Reduced Human Error
From a manufacturing and assembly perspective, the move to rigid systems significantly “de-skills” the installation process, leading to higher quality yields.
Error-Proofing (Poka-Yoke)
Cables are flexible and can be connected to the wrong terminals if an installer is not careful. Rigid busbars are “keyed” by their very shape. They can usually only be installed in one specific orientation and position. This inherently reduces the risk of wiring errors during mass production, which is a major benefit for our clients in the automotive and medical device sectors.
Integration of Secondary Components
Modern rigid busbars are rarely just “chunks of metal.” We can integrate fasteners, PEM nuts, and even sensing elements directly into the bar during the stamping and fabrication process. This means that instead of a technician having to crimp lugs and bolt down wires, they simply drop a pre-fabricated busbar assembly into place and secure a few primary bolts.

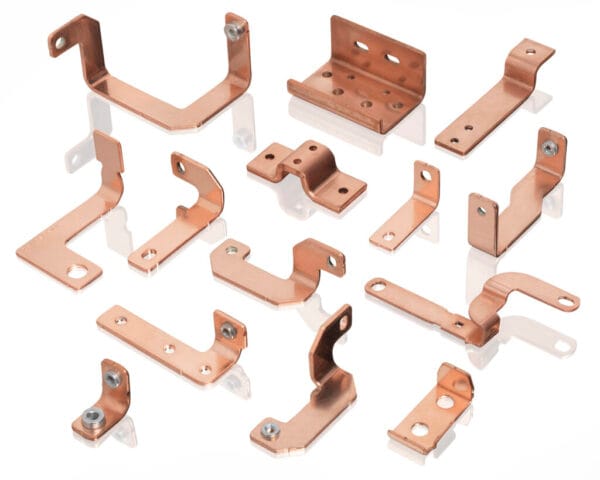

Long-Term Cost-Effectiveness and Sustainability
While the initial material cost of copper might seem high, the total cost of ownership (TCO) for a Rigid Busbar system is almost always lower than cable alternatives over the life of the product.
Reduced Maintenance Requirements
Cables are prone to “cold flow” (insulation thinning over time under pressure) and vibration fatigue. Rigid systems are static. Once bolted and torqued, they require virtually zero maintenance. There are no plastic jackets to perish or cable ties to snap.
Material Recyclability
As a global supplier, JUMAI TECH is committed to sustainability. Rigid copper busbars are 100% recyclable. At the end of a machine’s lifecycle, the busbars can be easily removed and melted down with almost no loss in material quality, unlike insulated cables which require energy-intensive stripping and separation processes.
Technical Note: According to theCopper Development Association, copper is one of the few materials that can be recycled repeatedly without any loss in performance, making rigid copper busbars the “green” choice for future power grids.
Technical Specifications Comparison
To provide a clearer picture of why engineering teams are making the switch, consider the following data comparing a standard 500 MCM cable to a JUMAI TECH custom Rigid Busbar designed for the same current capacity (approx. 400A).
| Parameter | 500 MCM Copper Cable | JUMAI TECH Rigid Busbar (1/4″ x 2″) |
| Cross Section | ~253 $mm^2$ | ~322 $mm^2$ |
| Ampacity (Open Air) | ~380A | ~450A |
| Weight per Foot | ~1.6 lbs | ~1.2 lbs (Optimized) |
| Flexibility | High (Difficult to route) | None (Self-Supporting) |
| Installation Time | 15-20 Minutes | 3-5 Minutes |
Advanced Manufacturing: The Role of Precision Stamping and Deep Drawing
At JUMAI TECH, we don’t just cut metal; we engineer solutions. The performance of a Rigid Busbar is inextricably linked to the quality of the tools used to create it. This is where our expertise in Precision Stamping Dies and Deep-Drawn Components provides a competitive edge for our global partners.
The Science of Precision Stamping Dies
To achieve the tight tolerances required for high-voltage systems (often within $\pm 0.05mm$), we utilize progressive stamping dies. Unlike manual bending, which can introduce stress fractures or inconsistent cross-sections, precision stamping ensures that every busbar is an identical twin of the last.
- Consistency in Contact Surface: A busbar is only as good as its connection point. Our dies are designed to create perfectly flat contact areas, minimizing interfacial resistance.
- Reduced Material Waste: Through advanced nesting software and precision die design, we maximize the utilization of high-purity copper, which is vital given the fluctuating costs of raw materials.
- Integrated Features: During the stamping process, we can incorporate “extrusions” or “bosses” that allow for stronger mechanical fastening without the need for secondary welding.
Deep Drawing in Busbar Accessories
While the busbars themselves are often flat or formed, the housings, connectors, and specialized shielding often require Deep-Drawn Components. Deep drawing allows us to create seamless, cup-shaped parts that are essential for protecting sensitive electrical junctions from electromagnetic interference (EMI).
By using a single piece of metal rather than a welded assembly, deep-drawn parts offer superior structural integrity and better conductivity for grounding applications. This “one-piece” philosophy is a core tenet of the JUMAI TECH manufacturing ethos.
Material Science: Why High-Purity Copper Reigns Supreme
When selecting a material for a Rigid Busbar, the debate often centers on Copper vs. Aluminum. While aluminum is lighter and cheaper, Copper (specifically ETP – Electrolytic Tough Pitch and OFHC – Oxygen-Free High Conductivity) remains the gold standard for high-performance applications.
Conductivity and Efficiency
Copper possesses the highest electrical conductivity of any non-precious metal. In the context of a rigid system, this means you can use a smaller busbar to carry the same current as a much larger aluminum alternative.
$$Conductivity_{IACS} \text{ (Copper)} \approx 101\%$$
$$Conductivity_{IACS} \text{ (Aluminum)} \approx 61\%$$
This difference in conductivity translates directly to energy savings. For a 24/7 operation like a data center or a manufacturing plant, the reduced $I^2R$ losses of a JUMAI TECH copper busbar can pay for the material premium within the first few years of operation.
Thermal Expansion and Joint Integrity
One of the most overlooked benefits of copper is its coefficient of thermal expansion. Rigid busbars undergo constant thermal cycling as loads increase and decrease. Copper’s expansion rate is much closer to that of the brass and steel fasteners used in electrical assemblies. This means the joints stay tighter for longer, preventing the “loose bolt” syndrome that leads to catastrophic arcing and fires in aluminum systems.
| Property | Copper (ETP) | Aluminum (6061) |
| Electrical Resistivity | 1.72 $\mu\Omega$-cm | 2.82 $\mu\Omega$-cm |
| Thermal Conductivity | 390 W/m·K | 167 W/m·K |
| Tensile Strength | 200–300 MPa | 124–310 MPa |
| Corrosion Resistance | Excellent | Moderate (Requires Coating) |

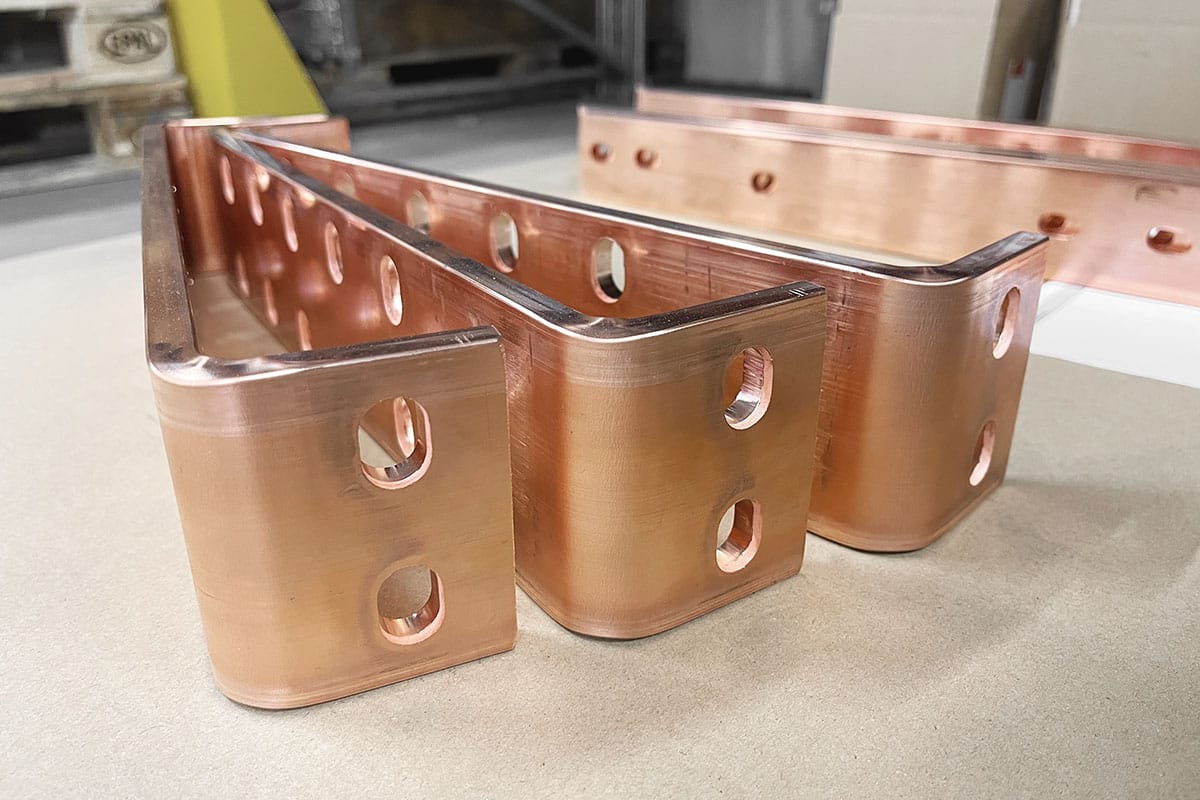

Surface Treatments and Insulation Technologies
A raw piece of copper is susceptible to oxidation, which can increase contact resistance over time. To ensure a 25-year service life, JUMAI TECH employs various surface finishing techniques tailored to the specific environment of the Rigid Busbar.
Electroplating: Tin, Silver, and Nickel
- Tin Plating: The most common choice for industrial busbars. It provides excellent corrosion resistance and is cost-effective. It also prevents “whisker” growth, which can be a concern in electronic circuits.
- Silver Plating: Used for high-frequency or ultra-high-current applications. Silver has even higher conductivity than copper, making it the ideal surface for minimizing contact resistance at critical junctions.
- Nickel Plating: Chosen for high-temperature environments (up to 200°C) where other coatings might soften or oxidize.
Modern Insulation: Powder Coating vs. Heat Shrink
In many applications, the Rigid Busbar must be insulated to allow for closer spacing between phases (reducing the overall size of the switchgear).
- Epoxy Powder Coating: This provides a “conformal” fit. We use fluid-bed or electrostatic spraying to apply a consistent dielectric layer. This is superior for complex geometries where heat-shrink tubing might wrinkle or tear.
- PVC/Polyolefin Heat Shrink: Ideal for straight runs or simple bends. It provides a rugged, abrasion-resistant layer that is easy to color-code (Red, Blue, Yellow) for phase identification.
Industry-Specific Applications and Case Studies
To truly appreciate the versatility of Rigid Busbar systems, we must look at where they are currently being deployed to solve complex engineering challenges.
Electric Vehicles (EV) and Battery Packs
In the EV world, the “Battery Busbar” is the nervous system of the vehicle. These bars must handle hundreds of amps while being subjected to constant vibration and shock. JUMAI TECH works with automotive OEMs to design busbars that are not only conductive but also structural, often acting as the primary support for battery cell modules.
Renewable Energy: Solar and Wind Inverters
In solar farms, DC power must be collected from thousands of panels and fed into central inverters. Rigid Busbars are used in the “Combiner Boxes” to handle the high DC currents. Their ability to withstand UV exposure and extreme temperature swings makes them far more reliable than standard PV cabling.
Data Centers and Supercomputing
As AI and cloud computing drive rack power densities higher (now exceeding 50kW per rack), traditional power whips are becoming obsolete. Rigid “track” busway systems allow for modular power distribution. If a server rack needs to be moved or upgraded, the busbar system allows for “hot-pluggable” connections, minimizing downtime. According to the Green Grid, optimizing power distribution via busbars is a key strategy for reducing Data Center PUE (Power Usage Effectiveness).

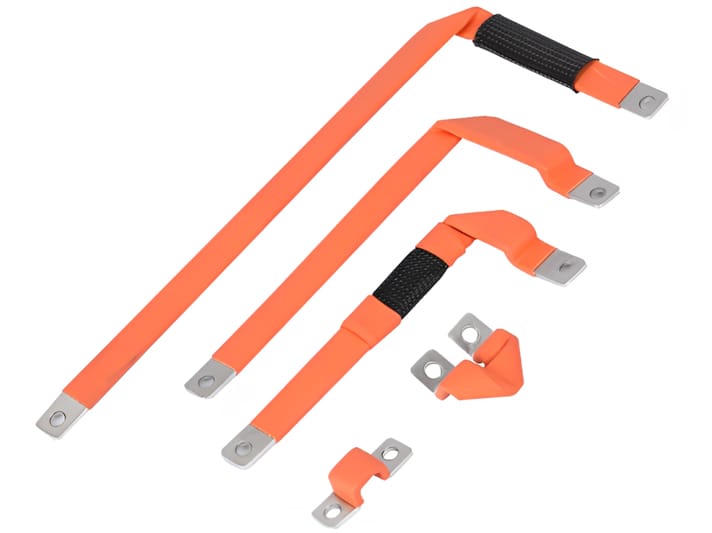

Quality Assurance: Testing for Zero-Failure Performance
At JUMAI TECH, our reputation is built on reliability. A failure in a Rigid Busbar isn’t just a minor inconvenience; it can lead to total system shutdown or fire. Therefore, we subject our products to a rigorous testing battery.
Dielectric Withstand Testing (Hi-Pot)
For insulated busbars, we perform high-potential testing to ensure the insulation can withstand voltages far beyond the operating rating without breakdown. This is critical for safety certification (UL, CE, IEC).
Torque Retention and Pull Testing
We simulate the mechanical stresses of a lifetime of service. By testing the “pull-out” strength of integrated fasteners and the torque retention of bolted joints, we ensure that our busbars will not vibrate loose in industrial or automotive environments.
Salt Spray and Environmental Aging
To guarantee corrosion resistance, samples from every production run are placed in salt spray chambers. This simulates years of exposure to harsh coastal or industrial atmospheres, ensuring that the plating remains intact and the copper remains protected.
The JUMAI TECH Advantage
Choosing a Rigid Busbar system is a commitment to quality, efficiency, and future-proofing your electrical infrastructure. From the initial design phase using our Precision Stamping Dies to the final application in a high-tech EV battery, these components represent the pinnacle of modern power distribution.
At JUMAI TECH (www.deepdrawtech.com), we are more than just a manufacturer. We are your technical partners in solving the world’s most demanding electrical challenges. Our years of experience in custom copper fabrication and deep-drawn components ensure that your project is built on a foundation of precision.
