In many modern electrical products, the conductor is no longer a simple piece of metal selected at the end of the project. It is part of the power architecture. This is especially true when the assembly is compact, exposed to vibration, or expected to carry hundreds or thousands of amperes through a limited space. For these projects, a flexible busbar can be the difference between a clean, repeatable, production-ready design and a layout that depends too much on field routing, manual bending, and installation skill.
The search phrase busbar flexible is often used by buyers who already know they need something more controlled than a cable and more forgiving than a rigid copper bar. They may be designing an EV battery pack, a battery energy storage cabinet, a solar inverter, a wind power converter, an AI server rack, a UPS module, a switchgear interface, or an industrial high-current power unit. Their problem is usually not only current. It is current plus space, heat, movement, insulation, tolerance, assembly speed, service access, and long-term reliability.
JUMAI focuses on custom copper busbar manufacturing for these practical engineering problems. The product range includes soft copper busbars, rigid copper busbars, braided copper busbars, laminated flexible busbars, tinned copper busbars, insulated bus bars, and related precision metal parts. For a broader overview of the product family, buyers can start with the JUMAI Custom Copper Busbars service page. Engineering teams that need a technical foundation can also read JUMAI’s guide on what a flexible busbar is and why it is used in high-current systems.
This article explains how flexible busbar solutions help compact, high-vibration, and high-current assemblies. It is written for engineers, purchasing managers, product managers, and OEM teams that need to move from a rough power-path concept to a manufacturable copper component. The goal is not to make the topic complicated. The goal is to make the purchasing and design conversation clearer, so that a supplier can quote the right part and the final assembly can perform as expected.
Table of Contents
Why Flexible Busbars Are Becoming More Important
Electrification is changing the way high-current assemblies are designed. More power is being packed into smaller equipment. Batteries are moving from small auxiliary systems to major energy assets. Data centers are moving from ordinary server loads to GPU-dense AI infrastructure. Renewable energy systems need compact, reliable DC and AC power paths. Industrial cabinets are expected to be cleaner, easier to assemble, and easier to inspect.
The market signals are visible in public data. The International Energy Agency’s Global EV Outlook 2025 reported that electric car sales topped 17 million worldwide in 2024 and represented more than 20% of new car sales. EV battery packs need repeatable high-current interconnects that can handle vibration, thermal expansion, and compact packaging. A battery pack may include module-to-module links, connections to contactors, fuse links, shunt interfaces, battery disconnect units, and power distribution points. Some of these paths can use rigid copper. Others need flexibility.
Battery storage is also scaling quickly. In a May 2026 commentary, the International Energy Agency reported that global battery storage capacity additions reached 108 GW in 2025, about 40% higher than in 2024. For BESS cabinet and container builders, this growth creates a practical manufacturing challenge: thousands of current paths must be built consistently, inspected reliably, and assembled without excessive labor. Flexible copper conductors can reduce routing difficulty where cabinet tolerances, door movement, vibration, or thermal expansion make rigid bars less suitable.
Data center power demand adds another driver. The IEA’s Energy and AI report states that data center electricity consumption was about 415 TWh in 2024 and is expected to more than double to around 945 TWh by 2030. At rack level, NVIDIA’s DGX GB rack scale system guide describes a bus bar structure distributing nominal 50 V to 51 V DC power, with rack power consumption of approximately 120 kW. A simple power calculation shows why conductor design matters: 120 kW at 50 V is about 2,400 A before considering distribution details, redundancy, branch paths, and safety margins. In that environment, a loose joint, an undersized conductor, or a poorly planned bend can become a thermal and reliability risk.
These trends do not mean that every product needs the same busbar. They mean that the conductor must be selected as part of the electrical-mechanical design. A compact product may need a laminated flexible busbar. A high-vibration grounding path may need a braided copper busbar. A fixed main rail may still need a rigid copper busbar. Many real systems use all three.
What a Flexible Busbar Actually Solves

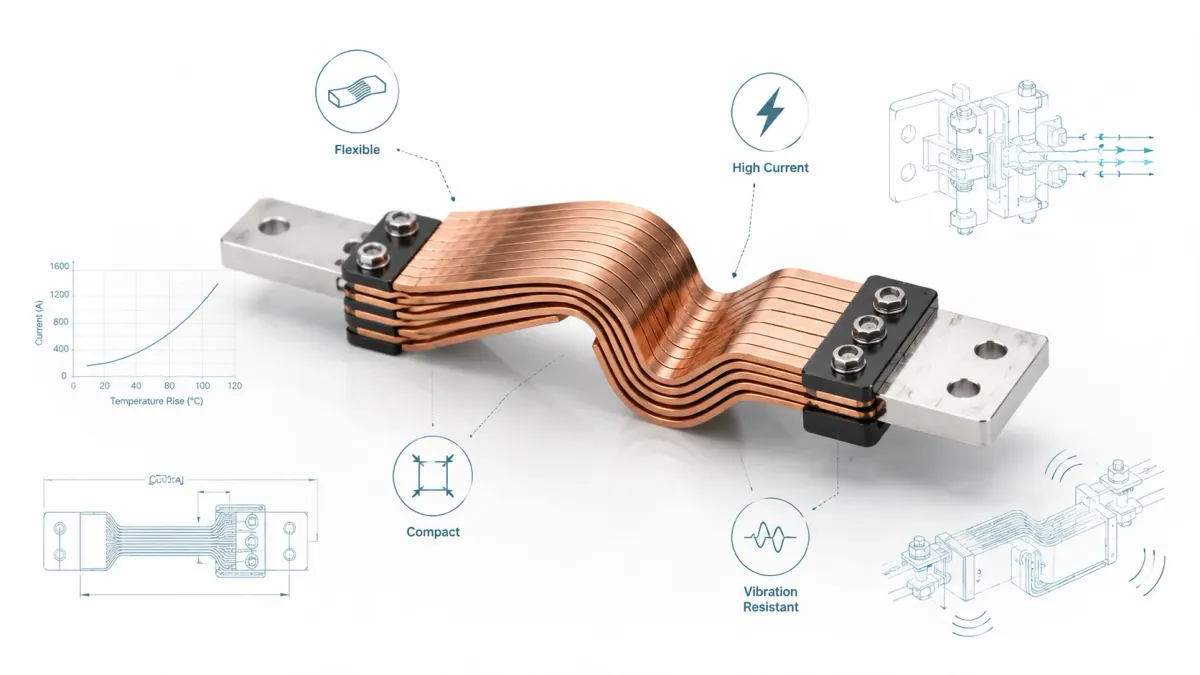

A flexible busbar is a conductive power interconnect designed to carry current while allowing controlled movement or shape adaptation. It can be made from stacked copper foils, braided copper wires, or a hybrid structure with rigid terminal areas and a flexible middle section. In practical purchasing language, a flexible busbar is not simply a soft metal strip. It is a custom electrical-mechanical part with defined copper grade, cross-section, terminal geometry, hole pattern, plating, insulation, bend zone, and inspection requirements.
The main value is not only that it bends. The main value is that it bends in a controlled way while keeping a predictable current path. A cable is flexible, but its round form may require more routing space, larger bend radius, lugs, crimping, tie-down points, and assembly labor. A rigid busbar is compact and repeatable, but it may transfer stress to terminals when components move or when tolerance stack-up is large. A flexible busbar sits between those two worlds. It offers a flat, engineered conductor shape while helping the assembly absorb movement.
In compact assemblies, flexible busbars can help reduce conductor height, avoid cable loops, and improve layout clarity. In vibration-heavy assemblies, they can reduce mechanical stress at bolted or welded terminals. In high-current assemblies, they can provide a wider, flatter copper path with controlled geometry and lower routing variability than cable bundles. In production, they can turn an operator-dependent installation into a repeatable part that fits the same way every time.
This is why flexible busbars are common in EV batteries, BESS systems, power conversion cabinets, charging equipment, switchgear interfaces, UPS equipment, high-current laboratory equipment, industrial drives, and data center power modules. For EV and BESS use cases, JUMAI’s article on flexible copper busbars for EV batteries, BESS, and power distribution gives additional application background.
Flexible Busbar, Braided Busbar, Rigid Busbar, and Cable
One common sourcing mistake is asking for a flexible busbar without defining what type of flexibility is needed. A laminated flexible busbar and a braided copper busbar can both be called flexible, but they behave differently. A cable is also flexible, but it is not the same type of engineered conductor.

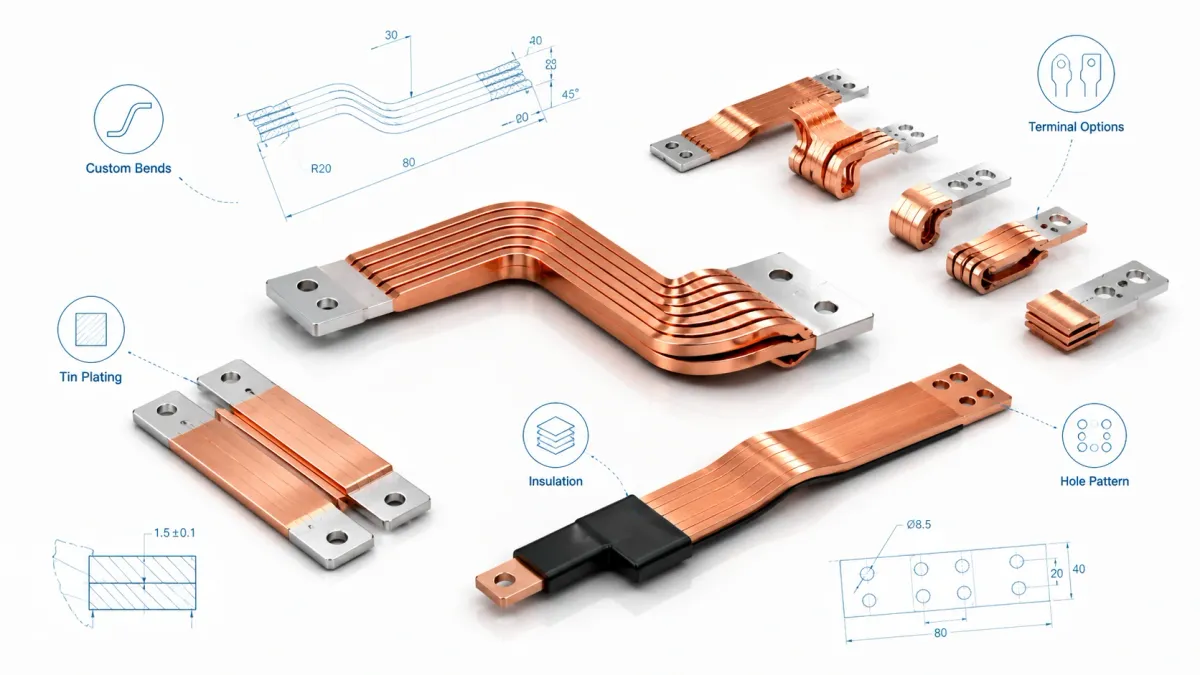

A laminated flexible busbar is usually made from multiple thin copper foils. The terminal areas are welded, press-bonded, diffusion-bonded, riveted, or otherwise consolidated so that they can be bolted or connected as stable contact zones. The middle section remains flexible because the thin copper layers can slide or bend more easily than a single thick bar. This structure is often useful when the connection must fit into a low-profile space while absorbing moderate movement.
A braided copper busbar is made from many fine copper wires woven together. It is excellent when the conductor must tolerate vibration, misalignment, or multi-axis movement. It may be used as a flexible grounding strap, bonding connector, transformer link, cabinet door connection, or dynamic high-current interconnect. JUMAI’s Custom Copper Busbars page describes soft and braided busbars as suitable for shock and vibration absorption.
A rigid copper busbar is usually cut, punched, bent, and plated from solid copper strip or plate. It is preferred for fixed power paths where structural stability, clean geometry, and straightforward inspection are important. For a broader comparison, JUMAI has published a guide on rigid busbars vs flexible busbars.
A cable remains useful when field routing flexibility is more important than fixed geometry. It can be the right choice for low-volume equipment, long flexible runs, or systems where the path is not tightly packaged. However, in compact high-current assemblies, cable can create issues such as bulky routing, inconsistent bend positions, larger terminal stacks, difficult inspection, and additional assembly steps.
| Conductor option | Best fit | Main advantage | Main limitation | Typical JUMAI-related solution |
|---|---|---|---|---|
| Laminated flexible copper busbar | Compact high-current links with controlled bend zones | Low-profile geometry, repeatable terminals, movement absorption | Requires clear definition of foil stack, bend radius, weld area, insulation window, and terminal design | Custom laminated flexible busbar with plating and insulation |
| Braided copper busbar | Vibration, grounding, bonding, moving interfaces, multi-axis stress | Excellent mechanical flexibility and vibration tolerance | Less flat and less geometry-controlled than laminated foil in some compact packages | Tinned or bare braided copper connector with cold-pressed terminals |
| Rigid copper busbar | Fixed rails, switchgear, cabinet distribution, structural current paths | Strong, simple, repeatable, easy to inspect | Transfers stress if terminals move or tolerance is large | CNC punched, bent, plated, and insulated rigid copper busbar |
| Cable assembly | Long routed runs and low-to-medium complexity layouts | Easy field routing and familiar installation | Bulky at high current; can depend heavily on installer routing | Use only when routing freedom is more valuable than fixed conductor geometry |
The correct decision is rarely based on one factor. It depends on current, voltage, space, thermal environment, movement pattern, service requirements, annual volume, and production method. A good supplier should ask questions before quoting, because two parts that look similar on a drawing may require very different manufacturing processes.
The Business Case: Lower Risk, Cleaner Assembly, Better Repeatability
For a purchasing team, flexible busbars may look more expensive than a simple cable or a cut copper strip at first glance. That comparison is often incomplete. The useful question is not only the unit price of the conductor. The useful question is the total cost and risk of the installed current path.
A flexible busbar can reduce assembly labor because the path is already defined. The operator does not need to route a cable through a crowded cabinet, control its bend shape manually, or add multiple clips and ties. The busbar lands on fixed terminal points. The hole pattern, contact area, plating, and exposed insulation windows can be checked visually and with fixtures. In higher-volume production, that repeatability can save time and reduce variation.
It can also reduce failure risk at the terminals. Many field failures in high-current systems are not caused by the middle of the conductor. They are caused by the joint: insufficient contact pressure, poor plating selection, oxidation, misalignment, vibration, uneven torque, or contact contamination. A flexible busbar can reduce stress at the joint because it does not force terminals to carry the mechanical load created by a stiff conductor path.
Flexible busbars can also help product design teams fit more power into less space. Flat copper foils can pass through a narrow region where a cable bend would be too bulky. A custom laminated geometry can be designed with bends, offsets, and exposed contact windows. In some cases, this allows a smaller enclosure, cleaner airflow, or more service access around modules.
The commercial value is especially clear when the product will be built repeatedly. A one-off prototype may survive with a hand-routed cable. A production assembly needs parts that fit consistently, pass inspection, and support stable field performance. That is where a custom busbar flexible solution becomes a business decision, not just an engineering detail.
Core Engineering Data Buyers Should Understand
Flexible busbar design starts with basic electrical physics. Current through a conductor creates heat according to I²R losses. Resistance depends on material resistivity, cross-sectional area, length, temperature, and joint quality. As temperature rises, copper resistance also rises. A busbar that is acceptable in open air may run too hot inside a sealed cabinet next to heat-generating components.
Copper is widely used because it combines high electrical conductivity, good thermal conductivity, formability, and stable joint behavior. The Copper Development Association’s C11000 alloy page states that C11000 copper has a minimum copper content of 99.90% and, in annealed condition, minimum conductivity of 100% IACS. This makes high-purity copper a practical starting point for compact high-current conductors. JUMAI’s service page also states that JUMAI manufactures custom copper busbars using high-purity T2/C11000 copper.
Temperature rise targets matter. The Copper Development Association’s busbar guidance notes that busbar systems should be designed for a 30 C rise above ambient or less for energy efficiency, and that temperature rises above 65 C are not recommended and are not energy-efficient. This is not a universal product rating by itself, because each final assembly has its own enclosure, airflow, duty cycle, and safety standard. But it is a useful engineering reminder: do not size a flexible busbar only by looking at copper area. Evaluate thermal performance in the real installation.
Mechanical environment matters as well. The ISO road-vehicle environmental standard page for ISO/WD 16750-3 describes mechanical loads for electric and electronic systems and components in road vehicles. EV and mobile equipment projects commonly need vibration and shock thinking because the conductor is not mounted in a static laboratory environment. A laminated flexible or braided copper busbar can help absorb movement, but the bend zone, terminal reinforcement, and strain relief must be designed properly.
| Data point or standard reference | Practical meaning for flexible busbar projects | How it affects the buyer’s RFQ |
|---|---|---|
| C11000 copper: minimum 99.90% Cu and 100% IACS conductivity in annealed condition, according to the Copper Development Association | High-conductivity copper helps reduce resistance and heat in compact current paths | Specify copper grade or conductivity expectation instead of only saying “red copper” |
| CDA busbar guidance: design around 30 C temperature rise or less for energy efficiency; rises above 65 C are not recommended | Ampacity depends on allowable temperature rise, not only conductor size | Provide ambient temperature, duty cycle, enclosure condition, and temperature rise target |
| IEA Global EV Outlook 2025: electric car sales topped 17 million in 2024 | EV battery interconnect demand is scaling, increasing the need for repeatable module-level conductors | Define vibration, thermal expansion, insulation, and production traceability expectations |
| IEA battery storage commentary: 108 GW of global battery storage additions in 2025 | BESS cabinets and containers need production-friendly power paths at larger deployment volumes | Provide cabinet layout, service access needs, and annual volume assumptions |
| NVIDIA DGX GB rack guide: approximately 120 kW rack power and bus bar structure distributing nominal 50 V to 51 V DC | Low-voltage high-power systems can require very high current, so small resistance differences matter | Provide continuous current, peak current, voltage drop target, and contact design constraints |
These references should not be treated as a substitute for final certification, simulation, or testing. They are useful because they help buyers and suppliers discuss the same engineering concerns: conductivity, temperature rise, current density, joint design, vibration, and system-level validation.
Electrical Sizing Without Overcomplicating the First Discussion
A supplier cannot confirm a flexible busbar design from thickness and width alone. The first sizing conversation should include continuous current, peak current, duty cycle, allowable voltage drop, ambient temperature, cooling condition, and acceptable temperature rise. It should also include terminal details, because a busbar with adequate copper area can still overheat at the joint.
For an early estimate, engineers often start by looking at cross-sectional copper area. A larger cross-section reduces resistance, but it also changes flexibility, bending force, terminal stack height, cost, and weight. A laminated flexible busbar gives designers a useful option: instead of one thick bar, several thin copper foils can create the required copper area while improving bendability. For example, a foil stack might use multiple layers of 0.1 mm, 0.2 mm, or 0.3 mm copper depending on current, bend radius, and available space.
Length is also important. A short flexible link between two modules may have low conductor resistance, while a longer routed path can create more voltage drop and heat. In compact high-current equipment, small resistance differences matter because power loss rises with the square of current. At 300 A, a 0.1 milliohm resistance creates about 9 W of heat. At 1,000 A, the same 0.1 milliohm creates about 100 W. This is why terminal quality, contact pressure, plating, and surface condition become critical as current increases.
A useful RFQ should not ask only, “Can you make this copper shape?” It should ask, “Can you make this copper shape for this current, voltage, temperature rise, vibration environment, insulation requirement, and production quantity?” The second question gives the supplier enough context to recommend foil count, terminal thickness, plating, insulation, bend radius, and inspection method.
JUMAI’s Battery Busbar Design Guide explains this point in the battery context: a busbar quotation becomes difficult to compare when suppliers receive only incomplete assumptions. Two suppliers may quote the same-looking part but include different plating, insulation, validation, tooling, or inspection scope. Clear electrical data makes the quotation more meaningful.
Thermal Design: Heat Is Often a Joint Problem
When buyers think about overheating, they often focus on copper cross-section. That is important, but the joint is often the more sensitive area. The joint includes the plated contact surface, bolt or screw, washer, nut, insert, terminal pad, busbar hole, contact pressure, surface flatness, and assembly torque. Any weakness at this interface can create local resistance. Local resistance creates local heat. Local heat can accelerate oxidation, soften insulation, loosen hardware, or reduce long-term reliability.
For flexible busbars, terminal design must be considered carefully because the flexible section and the contact area perform different jobs. The flexible section absorbs movement. The terminal area must be stable, flat, thick enough, and compatible with the mating surface. If the terminal is too thin, it may deform. If the hole tolerance is poor, alignment can be inconsistent. If the plating is not suitable, contact resistance may rise over time. If the exposed copper window is too small, the insulation may interfere with the joint.
Tin plating is common because it improves oxidation resistance and provides a practical contact surface for many industrial environments. Nickel may be selected for higher-temperature or harsher corrosion conditions. Silver may be used where contact performance is critical and the added cost is justified. JUMAI’s article on tin plated copper bus bars discusses why plating is not simply cosmetic. Even when the busbar body is copper, the surface finish at the contact area can affect assembly reliability.
Thermal design should also account for the enclosure. Is the part in free air, a sealed battery pack, a cabinet with forced airflow, a liquid-cooled rack, or a hot inverter compartment? Are there neighboring heat sources? Is the current continuous or intermittent? Is the busbar close to plastic parts, hoses, battery cells, sensors, or low-voltage wiring? Flexible busbars can be designed with insulation and routing features, but the supplier must know the thermal environment before recommending a final construction.
Mechanical Design for Vibration, Tolerance, and Service Movement
Flexible busbars are often selected because the system moves. Movement can come from road vibration, fan vibration, thermal expansion, module tolerance, cabinet frame distortion, service access, or installation variation. The design goal is not uncontrolled flexibility. The goal is controlled compliance: the busbar should move where it is intended to move and remain stable where it must make electrical contact.
A laminated flexible busbar should have a defined flexible zone. This zone must have enough length and bend radius to absorb movement without concentrating stress at the terminal transition. If the flexible section is too short, the copper foils may be forced to bend sharply near the weld or terminal edge. Over time, that can increase fatigue risk. If the bend is too close to the bolt hole, terminal stability may suffer. If insulation is too stiff in the bend area, it may reduce the flexibility that the copper stack was designed to provide.
Braided copper busbars are often better when movement is multi-directional or when the conductor behaves more like a bonding strap than a flat power link. For example, cabinet doors, removable modules, transformer connections, and equipment grounding paths may benefit from braided copper. The braid can absorb vibration and movement in several directions. However, braided conductors need proper terminal pressing, plating control, and strand protection. Loose strands or poorly compressed terminals can become quality issues.
Rigid copper is still the best option in many fixed paths. A main cabinet rail, switchgear distribution bar, or stable rack distribution conductor may need mechanical strength more than flexibility. In these systems, flexible busbars are often used as interface links between rigid sections and components that move or have tolerance variation. This hybrid architecture is common because it uses each conductor type where it performs best.
The ISO 16750-3 reference is useful for automotive thinking because it reminds teams that vehicle-mounted electrical parts experience mechanical loads. It does not automatically define the full validation plan for every busbar. Instead, it supports the broader engineering mindset: if the assembly is exposed to vibration, shock, or cyclic movement, the conductor design should be validated under realistic mechanical conditions.
Insulation, Creepage, Clearance, and Safety
Flexible does not mean unprotected. Many flexible busbars operate in high-voltage or high-current systems where insulation is essential. Insulation can reduce accidental contact risk, help maintain separation from grounded metal, protect against adjacent conductors, and improve assembly safety in compact spaces. Common insulation methods include heat-shrink tubing, PVC dipping, epoxy powder coating, molded covers, laminated film systems, and custom sleeves.
The correct insulation choice depends on voltage, temperature, flame-retardance requirements, bend zone, chemical exposure, abrasion risk, and manufacturing volume. A low-cost sleeve may be acceptable for a simple low-voltage link. A high-voltage battery busbar may require orange insulation, controlled exposed terminal windows, dielectric testing, traceability, and compatibility with pack-level safety requirements. A data center rack busbar may need insulation that fits tightly around power shelves, cooling hardware, and service access points.
Creepage and clearance should be discussed early. Clearance is the shortest distance through air between conductive parts. Creepage is the shortest distance along a surface. In compact assemblies, the available space may be limited by module layout, housing features, fasteners, cooling plates, or neighboring circuits. A busbar drawing that shows only copper shape is incomplete if the system requires dielectric protection. The supplier needs to know which areas must be insulated, which areas must remain exposed for contact, and whether there are labeling, color, or flame-retardance requirements.
Insulation also affects flexibility. Thick or stiff insulation can reduce bendability. Sharp copper edges can damage insulation. Bends formed after insulation may stress the coating. Holes, slots, and cutouts may need smooth edges to prevent dielectric weakness. This is why JUMAI treats insulation, plating, punching, bending, and terminal finishing as connected manufacturing steps rather than isolated operations.
Manufacturing Process: From Drawing to Production-Ready Part
A flexible busbar project usually starts with a drawing or sample, but the manufacturing discussion should start before the drawing is frozen. Early design-for-manufacturing review can prevent expensive changes later. JUMAI can review 2D drawings, 3D CAD files, samples, and application requirements to check whether the proposed geometry is practical for copper strip cutting, foil stacking, terminal bonding, punching, bending, plating, insulation, and inspection.
For a laminated flexible busbar, the process may include copper foil selection, cutting, stacking, alignment, terminal consolidation, punching, edge treatment, bending, plating, insulation, marking, and final inspection. The exact route depends on the part. Some parts require tin plating only at the terminals. Some require full-surface plating. Some require insulation before final forming. Some require special masks so that contact areas remain exposed while the rest of the conductor is protected.
For braided copper busbars, the process may include wire selection, braiding, cutting, terminal forming, cold pressing, welding or soldering where required, plating, insulation or sleeve assembly, and inspection. Terminal compression is especially important because it defines the transition from many fine wires to a stable bolted contact surface.
For rigid copper busbars used together with flexible links, the process may include cutting, CNC punching, tapping, bending, deburring, surface preparation, plating, and insulation. JUMAI’s Copper Busbar Guide explains material choices, busbar types, and custom manufacturing options in more detail.
Quality control should include dimensional inspection, hole position checks, terminal flatness, plating appearance and thickness where specified, insulation coverage, exposed window position, bend geometry, and packaging protection. For critical projects, electrical resistance checks, pull tests, dielectric tests, thermal validation, salt spray requirements, vibration tests, or customer-specific inspection reports may be added.
What to Send Before Requesting a Quote
A flexible busbar quotation is only as accurate as the information behind it. If a buyer sends only a picture and asks for price, the supplier must make assumptions. Those assumptions can cause later changes, delays, and cost surprises. A better RFQ gives the supplier enough data to quote a production-ready part.
| RFQ item | What to provide | Why it matters |
|---|---|---|
| Electrical load | Continuous current, peak current, duration, voltage, duty cycle, target voltage drop | Determines copper cross-section, foil count, thermal risk, and contact design |
| Thermal environment | Ambient temperature, enclosure type, airflow or cooling, neighboring heat sources, temperature rise target | Prevents undersizing and helps select insulation and plating |
| Mechanical environment | Vibration, shock, movement direction, tolerance stack-up, service movement, bend radius | Determines laminated vs braided structure and bend zone design |
| Geometry | 2D drawing, 3D model, hole pattern, terminal thickness, available space, bend direction | Allows DFM review, tooling planning, and fit confirmation |
| Surface finish | Bare copper, tin plating, nickel plating, silver plating, selective plating, corrosion requirements | Affects contact resistance, oxidation resistance, cost, and lead time |
| Insulation | Material preference, voltage class, color, exposed windows, flame-retardance, dielectric test needs | Ensures safe compact routing and avoids interference at terminals |
| Quantity and schedule | Prototype quantity, pilot quantity, annual volume, target lead time, PPAP or inspection needs | Affects process route, tooling decisions, inspection plan, and unit cost |
| Application | EV, BESS, inverter, data center, switchgear, UPS, industrial drive, renewable energy, or other use | Helps the supplier recommend practical validation and manufacturing details |
This information does not need to be perfect at the first contact. But the more complete it is, the more useful the supplier response will be. JUMAI can support early review, but the best result comes when the buyer shares the design intent instead of only the copper outline.

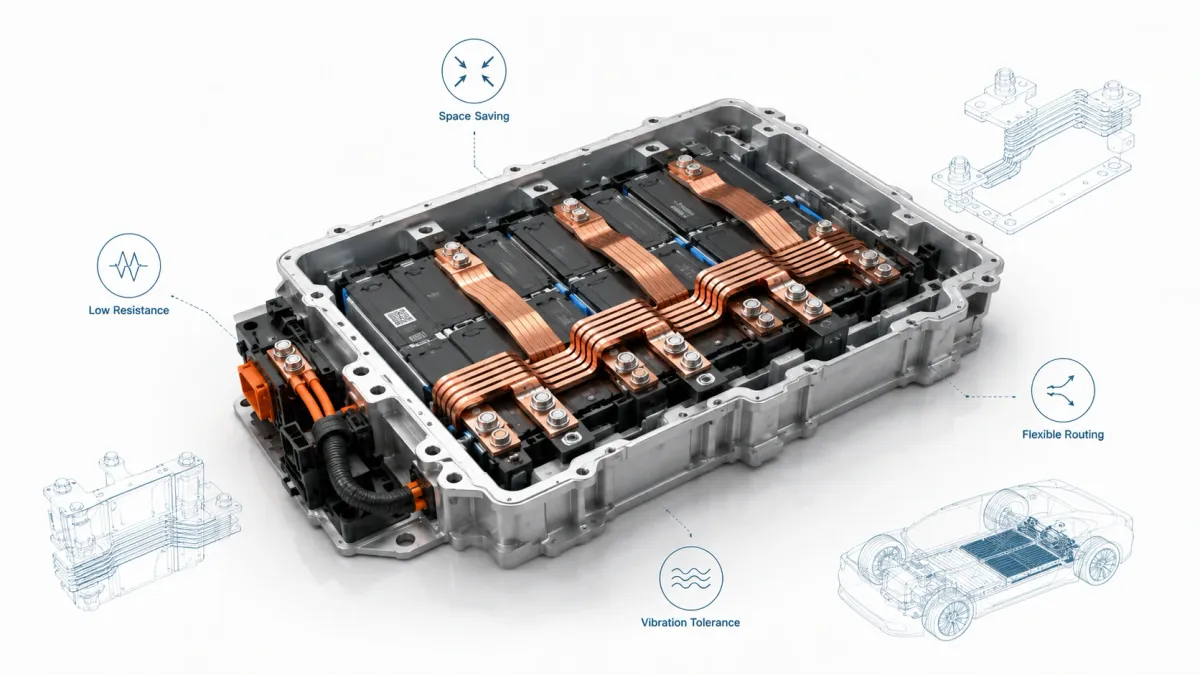

Application Notes for EV Battery Packs
EV battery packs are one of the strongest use cases for flexible busbars because they combine high current, high voltage, vibration, thermal cycling, and tight packaging. The busbar may connect modules, cells, fuses, contactors, current sensors, relays, power distribution units, and external high-voltage connectors. Each connection must support electrical performance and mechanical reliability.
A rigid busbar may be suitable where alignment is stable and movement is minimal. A laminated flexible busbar may be safer where modules can shift slightly, where thermal expansion must be absorbed, or where the assembly needs a low-profile link between fixed terminals. A braided busbar may be suitable for grounding, bonding, or areas where movement is multi-axis.
EV buyers should define continuous current, peak current, voltage class, insulation color, temperature range, vibration expectations, contact method, bolt size, terminal material, and production validation needs. If the pack uses orange high-voltage insulation, exposed copper windows should be controlled carefully so that service technicians can identify high-voltage parts while terminals still make clean contact. If the busbar connects to battery cells or modules, terminal stress should be minimized to protect sensitive components.
For more application-specific guidance, JUMAI’s Battery Busbar Design Guide explains how to specify custom battery busbars for EV packs and energy storage systems.

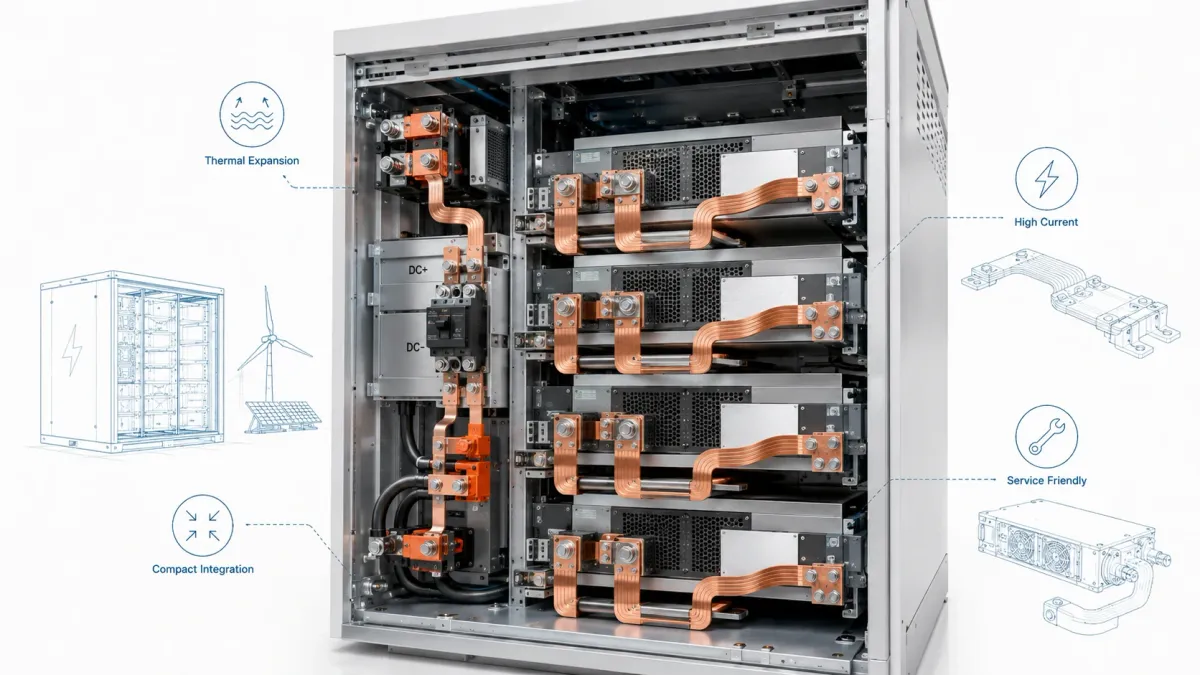

Application Notes for BESS Cabinets and Containers
Battery energy storage systems are different from EVs because the assembly is usually stationary, but the current paths can still face thermal cycling, cabinet tolerance, service movement, and high installation volume. A BESS system may include module strings, racks, DC combiner sections, fuses, contactors, disconnect switches, PCS interfaces, grounding paths, and monitoring components. The busbar network must be efficient, serviceable, and safe.
In a BESS cabinet, flexible busbars can help where modules slide into racks, where door or panel bonding is needed, or where tolerance between field-installed components is difficult to control. Rigid bars can provide stable main distribution paths. Insulated copper busbars can help when compact routing requires protection from adjacent conductive parts or accidental contact.
BESS buyers should consider not only prototype fit but also installation speed. If hundreds or thousands of cabinets are being built, a conductor that reduces assembly time and inspection complexity can have a real business impact. A repeatable flexible busbar can reduce the need for manual cable routing, lower the chance of inconsistent bend placement, and help technicians inspect connections quickly.
The rapid growth reported by the IEA makes manufacturing repeatability especially important. When deployment volumes increase, small inefficiencies in assembly become expensive. This is why BESS sourcing teams should discuss annual volume, packaging, labeling, inspection reports, and field service requirements during the RFQ stage.

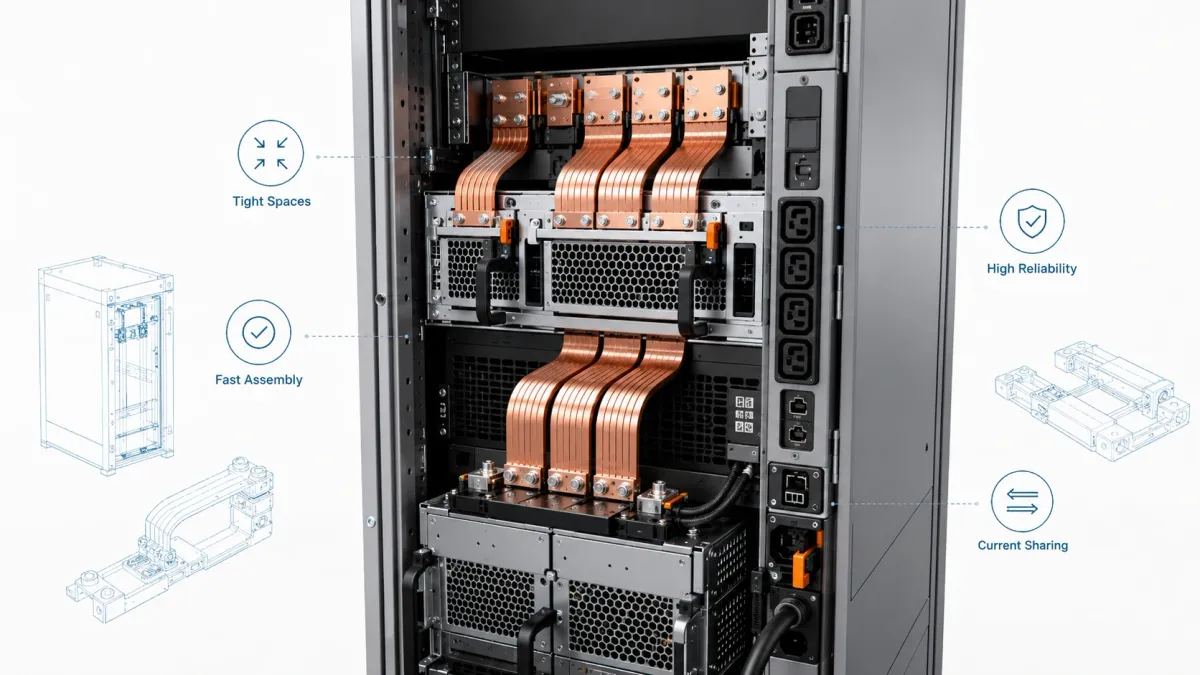

Application Notes for Data Centers and AI Server Racks
Data center power systems increasingly need compact, high-current distribution close to the load. AI server racks and GPU power shelves are changing the conversation because rack power can be far higher than in traditional enterprise environments. Low-voltage high-power architectures increase current, and high current makes every milliohm important.
NVIDIA’s public DGX GB rack documentation describes a bus bar structure distributing nominal 50 V to 51 V DC power to rack components, with rack power consumption of approximately 120 kW. This does not mean every rack busbar is the same, but it clearly shows why power-path design is becoming a procurement priority. At these power levels, busbar geometry, contact resistance, plating, insulation, and mechanical support all matter.
A rack may use a rigid vertical busbar, laminated flexible links between power shelves and modules, braided grounding straps, and insulated conductor assemblies. Flexible busbars are useful where components are removable, where tolerances need compensation, or where a rigid conductor would transfer stress to power modules. Braided connectors can help with grounding and bonding where panels, doors, or frames may move.
JUMAI’s article on bus bars for server rack power distribution discusses rack-level conductor selection, 48 V distribution, copper materials, surface finishes, insulation, and RFQ considerations. Buyers in this field should provide rack voltage, continuous current, peak current, module layout, access constraints, airflow or liquid cooling constraints, and service requirements.

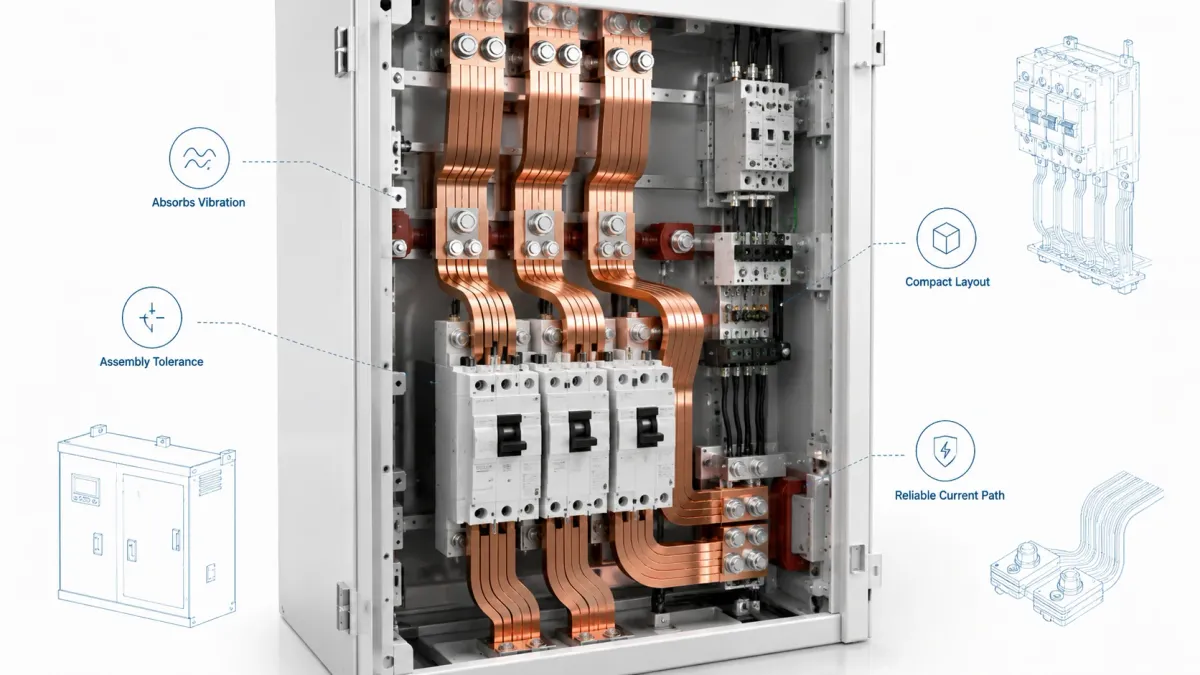

Application Notes for Industrial Power, Switchgear, UPS, and Renewable Energy
Industrial power equipment often combines fixed high-current rails with flexible interfaces. Switchgear, power cabinets, UPS systems, inverters, motor drives, rectifiers, transformers, charging equipment, and renewable energy converters may all need copper conductors. The conductor type should match the mechanical role.
Rigid copper busbars are often preferred for main distribution rails, breaker connections, and stable cabinet paths. Flexible laminated busbars are useful when the conductor bridges two components that may move, expand, or have tolerance variation. Braided copper busbars are useful for vibration-heavy transformer links, grounding straps, and cabinet bonding.
Renewable energy equipment may face outdoor or semi-outdoor conditions, thermal cycling, humidity, and inverter heat. In these cases, plating and insulation choices become important. Tin plating may be suitable for many indoor electrical environments, while nickel or silver may be considered for special requirements. Insulation should be selected according to voltage, temperature, abrasion, flame-retardance, and installation conditions.
JUMAI’s guide on copper bus bars for power distribution explains the importance of current capacity, thermal performance, joint design, insulation, geometry, and compliance mindset for power distribution projects. This is relevant because many flexible busbar applications are not isolated components. They are part of a larger distribution network.
Common Design Mistakes to Avoid
The first mistake is specifying only copper dimensions. Width, thickness, and length are necessary, but they are not enough. A supplier also needs current, voltage, thermal environment, movement, plating, insulation, and quantity. Without this information, the quotation may not represent the real application.
The second mistake is using a rigid bar where the terminals move. A rigid bar can be excellent in a fixed path, but it can transfer stress to terminals if components shift, vibrate, or expand. In a battery pack or compact power cabinet, this can create long-term fatigue or joint loosening. A laminated flexible busbar or braided connector may be more reliable.
The third mistake is selecting cable only because it feels familiar. Cable can be useful, but at high current it may become bulky, inconsistent, and labor-intensive. If the routing path is repeated in production, a custom flexible busbar can improve assembly repeatability and inspection.
The fourth mistake is ignoring the joint. The best copper body cannot compensate for a poor contact interface. Define plating, contact area, hole tolerance, bolt size, torque assumptions, washer stack, terminal flatness, and mating material. In high-current systems, the joint is often where the thermal problem starts.
The fifth mistake is treating insulation as an afterthought. Insulation changes bendability, thickness, assembly clearance, exposed terminal windows, and dielectric performance. It should be designed together with copper geometry, not added after the mechanical layout is already fixed.
The sixth mistake is comparing supplier quotes only by unit price. One quote may include plating, insulation, tooling, inspection, packaging, and engineering review. Another may include only raw copper processing. For OEM sourcing, the more complete quote may be the lower-risk choice even if the initial unit price is higher.
How JUMAI Supports Custom Flexible Busbar Projects
JUMAI is positioned for projects where the buyer needs more than a commodity copper strip. The company manufactures custom soft, rigid, and braided copper busbars and supports related deep-drawn components, precision stamping, tooling, and metal accessories. This combination is useful when the conductor must fit into a larger mechanical assembly, not just carry current in isolation.
The typical support process starts with drawing review. Buyers can send STEP files, IGES files, PDF drawings, photos, samples, or early layout concepts. JUMAI reviews conductor geometry, terminal design, bend feasibility, foil stack or braid choice, plating needs, insulation windows, and inspection requirements. If the design is not production-friendly, the team can suggest adjustments before tooling or batch manufacturing begins.
For prototypes, the focus is fit, function, and risk reduction. The first samples should confirm that the busbar fits the real assembly, lands cleanly on terminals, avoids interference, bends as expected, and supports the required electrical test plan. For pilot production, the focus shifts to repeatability, fixture inspection, packaging, labeling, and documentation. For mass production, stable process control and clear acceptance criteria become more important.
JUMAI can support a range of project requirements: laminated flexible copper busbars, braided copper busbars, rigid copper busbars, tinned copper busbars, nickel-plated or silver-plated options, insulated busbars, custom punched terminals, CNC-bent copper bars, and related stamped or deep-drawn parts. Buyers evaluating copper material options can also review JUMAI’s article on why copper remains preferred for high-current conductors.
Practical Specification Example
A weak RFQ might say: “Need flexible copper busbar, 300 A, please quote.” That is not enough for a meaningful price or engineering recommendation.
A stronger RFQ might say:
We need a custom laminated flexible copper busbar for a compact EV battery module connection. The system voltage is 800 V DC. Continuous current is 300 A, with peak current of 600 A for 10 seconds. The part connects two fixed terminals with possible tolerance variation and vibration. Target ambient temperature is -40 C to 105 C, and the target temperature rise should be reviewed based on the enclosed pack environment. Copper should be high-conductivity C11000 or equivalent. Terminal areas should be tin-plated, with orange insulation and exposed contact windows. Mounting holes are M6. We can provide STEP and PDF drawings. Prototype quantity is 50 pieces, and expected annual volume is 20,000 pieces after validation.
This version gives the supplier enough information to discuss copper stack design, terminal thickness, plating, insulation, bend radius, inspection, packaging, and lead time. The final design still needs testing in the real system, but the RFQ is now aligned with how the part will actually be used.
Frequently Asked Questions
Is a flexible busbar better than a cable?
It depends on the application. A flexible busbar is often better in compact high-current assemblies because it provides a flatter, more repeatable current path with defined terminal geometry. It can reduce cable routing variation and assembly labor. A cable may still be better for long, field-routed paths or applications where maximum routing freedom is needed.
Is a flexible busbar better than a rigid busbar?
A flexible busbar is better when the connection must absorb vibration, tolerance, thermal expansion, or service movement. A rigid busbar is better for fixed rails and stable power paths that need mechanical strength. Many high-current products use rigid busbars for main distribution and flexible busbars for interface connections.
What copper grade should be used?
High-conductivity copper such as C11000/T2 is a common choice for custom busbars because it offers strong electrical conductivity, availability, and manufacturability. Some projects may use oxygen-free copper grades or special materials depending on joining, forming, or customer specifications. The buyer should define performance requirements instead of relying only on a generic copper name.
Does a flexible busbar need plating?
Not always, but plating is common at contact areas. Tin plating is widely used for oxidation resistance and practical industrial contact performance. Nickel and silver may be selected for higher-temperature, harsh-environment, or special contact requirements. The best choice depends on mating material, environment, temperature, cost target, and validation requirements.
Can flexible busbars be insulated?
Yes. Flexible busbars can be insulated with heat shrink, PVC dipping, epoxy coating, sleeves, films, or other insulation systems depending on voltage, temperature, bend requirements, flame-retardance, and exposed terminal windows. Insulation should be discussed early because it affects thickness, bendability, clearance, and assembly fit.
What information does JUMAI need for a quotation?
JUMAI needs the drawing or sample, continuous current, peak current, voltage, thermal environment, movement or vibration conditions, plating requirement, insulation requirement, quantity, target lead time, and application background. More complete information leads to a more accurate quotation and better manufacturability feedback.
Can one assembly use rigid, laminated flexible, and braided busbars together?
Yes. This is common in real systems. A power cabinet may use rigid copper for the main rail, laminated flexible busbars between modules, and braided copper straps for grounding or moving interfaces. The best design uses each conductor type where it has the highest value.
Final Recommendation: Specify the Power Path, Not Just the Copper Shape
A flexible busbar is not only a bent conductor. It is an engineered power path that connects electrical performance, thermal behavior, mechanical movement, insulation safety, manufacturing repeatability, and purchasing risk. In compact, high-vibration, and high-current assemblies, this power path deserves attention early in the design process.
For buyers, the most practical next step is to prepare a complete RFQ package. Include current, voltage, duty cycle, temperature rise target, mechanical environment, drawing files, terminal details, plating preference, insulation requirements, and expected volume. This allows JUMAI to review not only whether the copper part can be made, but whether it can be made as a stable, repeatable, production-ready component.
JUMAI supports global customers with custom laminated flexible busbars, braided copper busbars, rigid copper busbars, plated busbars, insulated busbars, and related precision metal components. If your project involves EV batteries, BESS cabinets, renewable energy systems, data center power distribution, switchgear, UPS modules, power conversion equipment, or other high-current assemblies, JUMAI can review your drawing and help turn the conductor from a rough layout into a manufacturable copper solution.
To begin, visit the JUMAI Custom Copper Busbars page or send your application requirements for engineering review. A well-specified busbar flexible solution can reduce assembly risk, improve space use, support vibration reliability, and help your high-current product move from prototype to production with fewer surprises.
