High-current electrical systems are becoming smaller, denser, hotter, and more commercially demanding. Electric vehicles need compact power connections that can survive vibration and thermal cycling. Energy storage systems need repeatable, safe, and cost-controlled conductors for battery racks, PCS cabinets, DC combiner sections, and power distribution modules. Data centers need low-loss, predictable power distribution for UPS systems, rack power, switchgear, power shelves, and AI server infrastructure. In all three markets, the same question appears again and again: how can we move high current more safely, efficiently, and consistently inside a limited mechanical envelope?
For many of these projects, Custom Rigid Busbars provide a practical answer. A rigid busbar is not simply a flat strip of copper. When it is engineered correctly, it becomes a precise electrical, thermal, and mechanical component. It can reduce assembly variation, lower voltage drop, improve heat dissipation, simplify routing, and help the buyer control repeatable production quality. This is why rigid copper busbars remain essential even as flexible and braided conductors become more common in dynamic applications.
At JUMAI, we build rigid busbar solutions as part of a broader precision metal capability that includes custom copper busbars, flexible copper busbars, braided copper busbars, deep-drawn components, precision stamping dies, and related metal accessories. This matters because real power distribution projects rarely need only one conductor. A battery module may need rigid busbars for fixed high-current paths, flexible copper busbars for movement compensation, nickel or copper tabs for cell connections, stamped brackets for mounting, and formed covers for protection. A supplier that understands all of these parts can help customers make better design choices earlier.
This article explains how buyers, engineers, and procurement teams can evaluate Custom Rigid Busbars for EV, Energy Storage, and Data Center Applications. It also gives practical data tables, sourcing logic, design checkpoints, and RFQ guidance that can be used before ordering prototypes or volume production.
Table of Contents

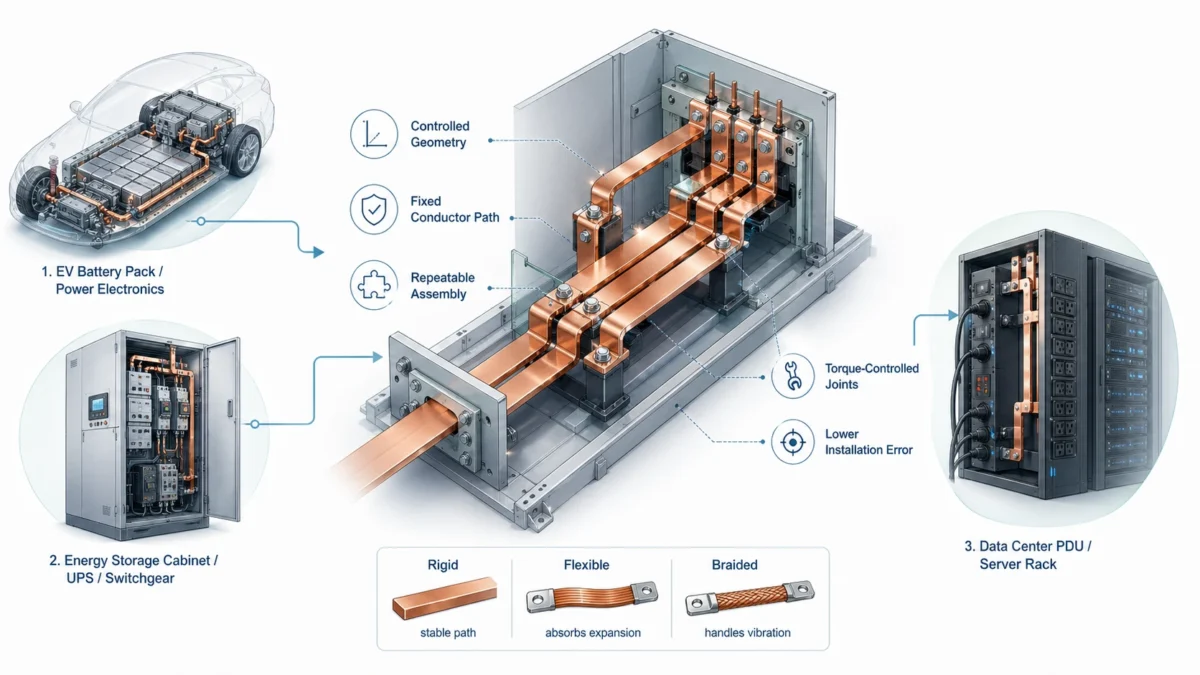

Why rigid busbars still matter in modern power systems
The power electronics industry often discusses flexibility, modularity, and miniaturization. Those ideas are important, but they do not eliminate the need for rigid conductors. In fact, higher power density often makes rigid busbars more important because they provide controlled geometry. When current is high and installation space is limited, uncontrolled cable routing can create variation in bend radius, terminal contact, heat behavior, and electromagnetic layout. A custom rigid busbar is designed to fit one path, one enclosure, and one assembly sequence.
Rigid copper busbars are especially valuable where the conductor path is fixed. Examples include the DC link between a power module and capacitor bank, the main positive and negative battery pack conductors, a UPS power distribution section, a switchgear connection, a cabinet-to-cabinet power path, or a data center PDU branch. In these cases, flexibility is not always an advantage. A rigid busbar can lock the electrical path into the mechanical architecture and make assembly faster.
JUMAI’s broader precision copper busbar portfolio reflects this point. Rigid, flexible, and braided busbars serve different roles. Rigid busbars are best when the path is stable, the connection points are fixed, and structural repeatability matters. Flexible laminated busbars are better where thermal expansion, tolerance stack-up, or movement must be absorbed. Braided copper busbars are useful when multi-axis vibration is severe. A strong power distribution design does not force one type into every position. It chooses the correct conductor for each function.
The commercial value of rigid busbars is also easy to underestimate. A cable assembly may appear cheaper when comparing only raw material cost. However, high-current cables require cutting, stripping, crimping, routing, tie-downs, clearance checks, and operator skill. By contrast, a properly designed rigid busbar can be installed with predictable torque-controlled joints. As discussed in JUMAI’s article on rigid busbars versus cables, a custom busbar can also reduce installation errors because it fits the intended position more clearly.
In high-volume manufacturing, this repeatability has real financial value. A busbar that fits the fixture, aligns with terminals, and supports clear inspection criteria can reduce rework and shorten line training. For EV, energy storage, and data center projects, where delayed commissioning or field failures can be very expensive, this reliability is often worth more than a small material saving.
Industry demand signals that make busbar design more important
Rigid busbar demand is closely tied to electrification, power conversion, and data infrastructure. These markets are not abstract trends. They are measurable growth areas with direct implications for copper conductors, terminal interfaces, cabinet design, and thermal management.
The IEA Global EV Outlook 2025 reported that global electric car sales exceeded 17 million in 2024 and represented more than 20% of new car sales worldwide. It also expected electric car sales to top 20 million in 2025. Every EV contains multiple high-current paths: battery pack interconnects, inverter connections, onboard charger links, DC fast charging interfaces, auxiliary power conductors, and sometimes high-voltage distribution units. Not all of these paths use rigid busbars, but many fixed and high-current sections do.
Battery energy storage is growing even faster in power-sector terms. The IEA Global Energy Review 2026 stated that battery storage was the fastest-growing power technology in 2025, with 108 GW of new capacity deployed worldwide, 40% more than in 2024. It also noted that about 80% of new battery capacity in 2025 was utility-scale. Utility-scale storage systems require large numbers of repeated electrical connections inside modules, racks, containers, switchboards, and power conversion systems. In such environments, small design errors can be replicated thousands of times.
Data centers add a third source of demand. The U.S. Department of Energy reported that U.S. data centers consumed about 4.4% of total U.S. electricity in 2023 and could consume about 6.7% to 12% by 2028. The same DOE release stated that data center electricity use increased from 58 TWh in 2014 to 176 TWh in 2023, with an estimated 325 to 580 TWh by 2028. At the global level, the IEA’s Energy and AI analysis projected that global data center electricity consumption could double to around 945 TWh by 2030. More power demand means more pressure on busbar systems, UPS architecture, switchgear, transformers, and power electronics.
| Market signal | Public data point | What it means for rigid busbars |
|---|---|---|
| Electric vehicles | Global electric car sales exceeded 17 million in 2024, according to IEA | More high-voltage battery, inverter, charging, and distribution paths require engineered copper conductors |
| Battery storage | 108 GW of new battery storage capacity was deployed worldwide in 2025, according to IEA | Repeated rack, module, PCS, and cabinet connections need consistent resistance, controlled heat, and stable assembly |
| Data centers | U.S. data center electricity use was 176 TWh in 2023 and could reach 325-580 TWh by 2028, according to DOE | UPS, switchgear, PDUs, busway interfaces, and AI power shelves need compact and efficient conductors |
| AI infrastructure | IEA projects global data center electricity consumption to reach about 945 TWh by 2030 | Higher rack power density increases the value of low-loss copper paths, heat management, and reliable bolted joints |
| Copper material design | C11000 copper has a minimum conductivity of 100% IACS in the annealed condition, according to Copper.org | Material grade and surface condition should be specified clearly, not assumed from the word “copper” alone |
These numbers do not mean every project should use the thickest possible copper. They mean electrical architecture is becoming a strategic design area. The best busbar is not automatically the largest busbar. It is the busbar that meets current, temperature rise, short-circuit, insulation, clearance, mechanical, manufacturability, and cost requirements at the same time.
What a custom rigid busbar really is
A custom rigid busbar is a formed conductive part, usually made from copper or aluminum, that carries current between fixed electrical points. In high-performance applications, copper is often preferred because of its excellent electrical and thermal conductivity, compact cross-section, stable contact behavior, and suitability for plating. Copper alloys such as C11000 ETP copper and oxygen-free copper are commonly discussed in busbar design because they offer high conductivity and reliable forming characteristics. Copper.org lists C11000 as high-conductivity copper with minimum conductivity of 100% IACS in the annealed condition.
A rigid busbar can be flat, bent, offset, punched, slotted, plated, insulated, stamped, coined, deburred, engraved, or assembled with hardware. It may look simple, but its performance depends on many details. The conductor cross-section affects resistance and heat. The hole design affects contact pressure and joint stability. The bend radius affects forming quality and mechanical stress. The plating affects oxidation resistance and contact performance. The insulation affects creepage, clearance, safety, and assembly protection.
A useful way to define a custom rigid busbar is to separate it into six design layers.
| Design layer | Key questions | Typical buyer mistake |
|---|---|---|
| Electrical layer | Current, duty cycle, voltage, acceptable voltage drop, short-circuit condition | Quoting only by length, width, and thickness |
| Thermal layer | Ambient temperature, enclosure airflow, temperature-rise target, nearby heat sources | Assuming free-air ampacity applies inside a hot cabinet |
| Mechanical layer | Hole position, bend angle, flatness, torque access, vibration, support points | Ignoring assembly tolerance until prototype installation |
| Surface layer | Bare copper, tin plating, nickel plating, silver plating, contact surface finish | Choosing plating only by price rather than environment and joint behavior |
| Insulation layer | Heat shrink, epoxy powder coating, PET, PVC, PA, PI, or molded protection | Treating insulation as cosmetic instead of dielectric protection |
| Manufacturing layer | Cutting, punching, bending, deburring, cleaning, plating, inspection, packaging | Approving a handmade sample without confirming mass-production process control |
This layered view helps buyers avoid vague RFQs. A supplier can quote more accurately when the RFQ includes electrical performance, mechanical constraints, environmental conditions, production volume, inspection requirements, and compliance context. When information is incomplete, we can still begin with a design review, but assumptions must be clearly listed.
Why copper material selection should not be vague
For rigid busbars, the phrase “copper busbar” is not enough. Material grade, temper, conductivity, and surface condition influence performance and manufacturability. A busbar used in a compact inverter cabinet may need a different balance of conductivity, bendability, hardness, and plating compatibility than a straight busbar used in a switchboard.
C11000 ETP copper is widely used because it offers high conductivity and good availability. Oxygen-free copper can be considered when oxygen content, high-temperature joining, or specific performance requirements justify it. Some applications may also use copper alloys where strength or spring properties matter more than maximum conductivity, but pure high-conductivity copper remains the normal starting point for many high-current rigid busbars.
The Copper Development Association alloy database identifies C11000 as a high-conductivity copper with minimum conductivity of 100% IACS in the annealed condition and a minimum copper content of 99.90%. For buyers, the practical message is simple: the copper grade should be visible in the drawing, quotation, material certificate, or purchase specification. If the supplier quote only says “red copper” or “copper bar,” the buyer should ask for clarification.
Material temper is also important. Softer copper can form more easily, but it may be more prone to deformation during handling or assembly. Harder copper can provide better dimensional stability but may require more careful bending and forming control. The correct temper depends on geometry, thickness, bend radius, hole pattern, and installation load.
At JUMAI, we normally discuss material selection together with the manufacturing route. Cutting, CNC bending, punching, milling, stamping, and plating all influence final quality. If a customer’s rigid busbar includes tight bends, dense hole patterns, or complex offsets, we may recommend small geometry changes to protect forming stability and improve yield. This is not a downgrade. It is design-for-manufacturing work that prevents problems before tooling and samples become expensive.

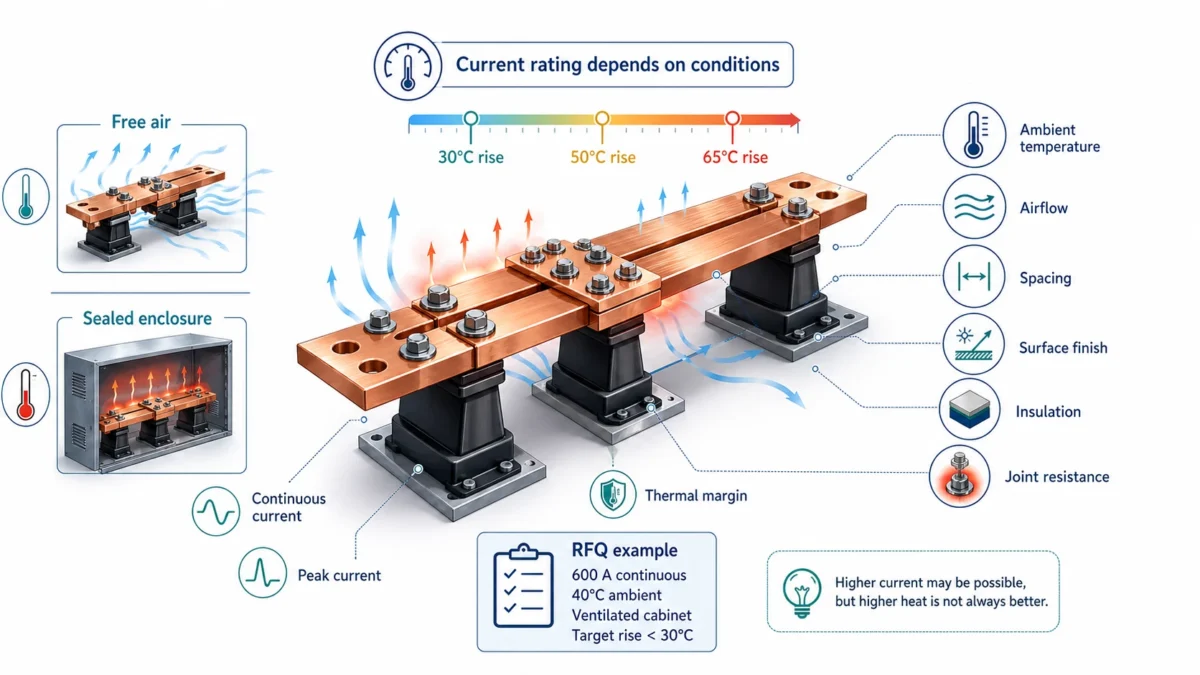

Ampacity, temperature rise, and why “current rating” is not a single number
Many buyers ask one direct question: how many amps can this busbar carry? The answer depends on conditions. A copper bar in free air behaves differently from the same copper bar inside a sealed enclosure. Orientation, spacing, surface finish, airflow, nearby heat sources, duty cycle, and allowable temperature rise all matter.
Copper.org provides busbar ampacity tables for rectangular Copper No. 110 busbars and explains that values are listed for temperature rises of 30°C, 50°C, and 65°C above ambient. It also notes that, for energy-efficiency considerations, a busbar system should be designed for a 30°C rise above ambient or less, while temperature rises above 65°C are not recommended. This is a useful engineering principle for commercial conversations: a busbar can often carry more current if more temperature rise is allowed, but higher heat is not automatically a good design choice.
JUMAI’s own copper busbar ampacity guide explains the same issue in practical terms. The goal is not just to prevent immediate failure. The goal is to keep the busbar, insulation, terminal, and surrounding components within a safe thermal envelope over the expected service life. A system that passes a short functional test may still be a poor design if it runs too hot in a closed cabinet during long-duration operation.
| Factor | Why it changes ampacity | Design implication |
|---|---|---|
| Cross-sectional area | Larger section reduces resistance and heat generation | Increase width or thickness only after checking space and bend feasibility |
| Surface area | More exposed surface improves heat dissipation | Wide, flat bars often cool better than compact thick shapes |
| Ambient temperature | Higher ambient reduces thermal margin | EV packs, outdoor ESS cabinets, and data center electrical rooms need realistic ambient assumptions |
| Enclosure airflow | Forced airflow improves heat removal; sealed cabinets trap heat | Free-air tables should not be used blindly for closed modules |
| Bar orientation and spacing | Heat dissipation changes with mounting position and distance to other conductors | Parallel bars and laminated layouts need spacing and thermal review |
| Plating and insulation | Surface treatment can affect emissivity and contact behavior; insulation can trap heat | Thermal and dielectric goals must be balanced together |
| Joint resistance | Poor contact creates localized heating at the terminal | Hole quality, flatness, plating, torque, and washer selection matter |
A good RFQ should therefore state not only rated current, but also duty cycle and temperature-rise expectation. For example, “600 A continuous in a ventilated cabinet at 40°C ambient with a target busbar temperature rise below 30°C” is much more useful than “600 A busbar.” If overload, peak current, or short-circuit withstand requirements apply, those should also be stated.
Rigid busbars in electric vehicles
EV systems are compact and mechanically demanding. They involve high voltage, high current, vibration, thermal cycling, and strict packaging constraints. Rigid busbars are often used where the electrical route is fixed and dimensional accuracy is critical. Typical positions include battery pack main conductors, module-to-module connections, battery disconnect units, high-voltage junction boxes, inverter DC links, onboard charger paths, and charging interface components.
The first reason rigid busbars are useful in EVs is packaging control. A custom copper busbar can follow a defined 3D path through the pack or control box. It can include bends, offsets, mounting holes, slots, tabs, insulation windows, and terminal features. Compared with cable, the busbar path is more repeatable during assembly. That repeatability helps engineers manage clearance and avoid accidental contact with other parts.
The second reason is thermal performance. EV power systems may see continuous load, fast transient load, regenerative braking current, and charging current. If the conductor section is undersized or the joint is poorly designed, heat will concentrate at the weakest point. A rigid copper busbar gives engineers a clear surface for thermal modeling, infrared inspection, and production validation. It also gives procurement teams a part that can be measured and inspected more easily than a routed cable assembly.
The third reason is connection reliability. A bolted copper-to-terminal interface can be very stable if the mating surfaces are flat, clean, plated correctly, and tightened with the correct torque. Problems usually appear when the hole pattern is wrong, burrs remain around the punched area, plating is uneven, or the joint stack is not controlled. These details should be solved before volume production.
EV projects also show why rigid busbars should not be used everywhere. Where battery modules move relative to each other, where vibration is high, or where thermal expansion needs to be absorbed, a flexible copper busbar or braided copper busbar may be better. JUMAI’s comparison of flexible and rigid precision copper busbars is useful here because it frames the choice around application conditions rather than marketing preference.
| EV subsystem | Rigid busbar value | Design cautions |
|---|---|---|
| Battery pack main positive/negative path | Compact high-current route, predictable assembly, lower voltage drop | Check clearance, insulation, pack expansion, serviceability, and fault conditions |
| High-voltage junction box | Precise connection between contactors, fuses, sensors, and terminals | Maintain creepage/clearance and avoid thermal concentration at terminals |
| Inverter DC link | Low-inductance layout, short current path, stable geometry | Coordinate with capacitors, cooling plates, laminated structures, and EMI goals |
| Charging inlet or fast-charge interface | Repeatable high-current connection and stable terminal location | Review plating, heat rise, mating cycles, and mechanical support |
| Battery module interconnect | Simple fixed interconnection when module movement is low | Use flexible or braided links when vibration or tolerance movement is significant |
The best EV busbar projects start with early collaboration. If the customer shares CAD space, terminal positions, current profile, insulation requirements, and assembly sequence, we can often suggest geometry changes that reduce copper mass, simplify bending, or improve torque access without compromising performance.
Rigid busbars in battery energy storage systems
Energy storage systems have different pressures from EVs. They are often larger, more modular, and more repetitive. A containerized BESS may include thousands of electrical interfaces across cells, modules, racks, DC collection, PCS cabinets, auxiliary systems, and safety equipment. In this environment, the value of a rigid busbar is not only electrical performance. It is repeatable manufacturing and field maintainability.
Utility-scale storage installations often prioritize long service life, safe commissioning, easy replacement, and stable documentation. The IEA’s battery storage data shows why: the market is growing quickly, and many projects are moving from pilot scale to industrialized deployment. When a project repeats the same busbar hundreds or thousands of times, small improvements in design and manufacturability can create large savings.
Rigid busbars are commonly used in rack-level and cabinet-level power distribution. They can connect battery modules, fuse holders, DC disconnects, current sensors, contactors, PCS terminals, and combiner sections. A custom design can include identification marks, mounting slots, protective insulation, and bend geometry that guides technicians during installation.
One of the most important design goals in energy storage is consistent contact resistance. A high-resistance joint can create heat, energy loss, voltage imbalance, or maintenance risk. Rigid busbars support consistent contact if the design controls flatness, hole diameter, plating, surface finish, burr removal, and torque specification. For BESS buyers, this is also a quality documentation issue. They should ask how the supplier inspects critical dimensions, surface condition, plating thickness, and package protection.
Energy storage systems also face environmental variation. Indoor cabinets, outdoor cabinets, containers, marine storage, and high-altitude installations may have different temperature, humidity, salt mist, and ventilation conditions. Tin plating may be sufficient for many industrial electrical connections, while nickel plating or other surface strategies may be selected for harsher environments or higher-temperature conditions. The correct choice should be based on service environment, mating material, operating temperature, and expected life.
| ESS area | Common busbar function | Practical sourcing note |
|---|---|---|
| Module interconnection | Connect repeated battery modules or subassemblies | Require stable hole position, burr control, and insulation clearance |
| Rack power distribution | Aggregate module current into rack-level positive and negative paths | Confirm continuous current, short-circuit condition, and service access |
| DC combiner section | Connect fuses, disconnects, sensors, and main terminals | Use clear markings and controlled plating for maintenance reliability |
| PCS interface | Transfer high current between DC side and power conversion equipment | Review thermal behavior and mechanical support at high-current terminals |
| Container auxiliary distribution | Support lower-current but high-reliability power routing | Standardization can reduce spare-part complexity |
Because BESS projects often have long deployment windows, commercial planning matters. Copper prices, plating capacity, tooling schedules, and inspection requirements can affect cost and lead time. A disciplined project should define quote validity, material adjustment logic, sample approval criteria, and change-control rules before the program scales.
Rigid busbars in data centers and AI infrastructure
Data centers are becoming one of the most demanding environments for power distribution. The issue is not only total energy use. The bigger engineering problem is local power density. AI servers, accelerators, and high-performance computing systems can concentrate large electrical loads in limited spaces. This drives demand for more efficient conductors, better thermal design, and more predictable power architectures.
The IEA’s Energy and AI analysis highlights this shift clearly. It states that global data center electricity consumption was around 415 TWh in 2024 and could more than double to around 945 TWh by 2030. It also notes that AI-focused data centers are pushing power density to the limits of today’s technologies. For busbar designers, this means current paths are no longer background hardware. They are part of the power-density solution.
Rigid busbars can be used in UPS systems, switchgear, server power shelves, rack PDUs, battery backup cabinets, busway tap-offs, power distribution cabinets, and high-current rectifier assemblies. In many of these positions, the busbar must deliver low resistance, controlled temperature rise, clear serviceability, and compact routing. It may also need high-quality plating because data center operators care about long-term reliability and reduced maintenance.
Data centers are also sensitive to downtime. A small failure in a power distribution component can have consequences far beyond the cost of the part. This is why inspection and documentation should be included in the sourcing process. Buyers should not evaluate a rigid busbar supplier only by unit price. They should ask whether the supplier can maintain dimensional stability, plating consistency, insulation quality, identification markings, and packaging discipline across repeated batches.
Thermal behavior is especially important in data centers. A busbar that is safe in open air may run hotter inside a dense cabinet or near other heat-generating components. Temperature-rise testing, simulation, or conservative design may be necessary for critical systems. Standards and guidance around low-voltage assemblies, including IEC 61439-related temperature-rise verification, reinforce the need to evaluate busbars inside realistic assembly conditions rather than as isolated metal pieces.
| Data center application | Rigid busbar role | Why customization matters |
|---|---|---|
| UPS cabinet | High-current battery, rectifier, inverter, and bypass connections | Geometry must match cabinet layout and maintenance access |
| Rack PDU or power shelf | Compact power distribution near IT equipment | Tight space requires controlled insulation and low-profile bends |
| Switchgear and panelboard assemblies | Main and branch power distribution | Ratings, temperature rise, and short-circuit withstand must be validated |
| Busway tap-off interface | Connection between busway and downstream loads | Hole patterns, plating, and terminal fit must be repeatable |
| AI accelerator power architecture | High-current low-voltage or intermediate-voltage distribution | Low loss and predictable thermal behavior become more critical as power density rises |
For data center projects, we often recommend early review of assembly sequence. A busbar may be electrically correct but difficult to install if a technician cannot access the bolt, torque wrench, or inspection point. Design for serviceability is not optional when uptime matters.

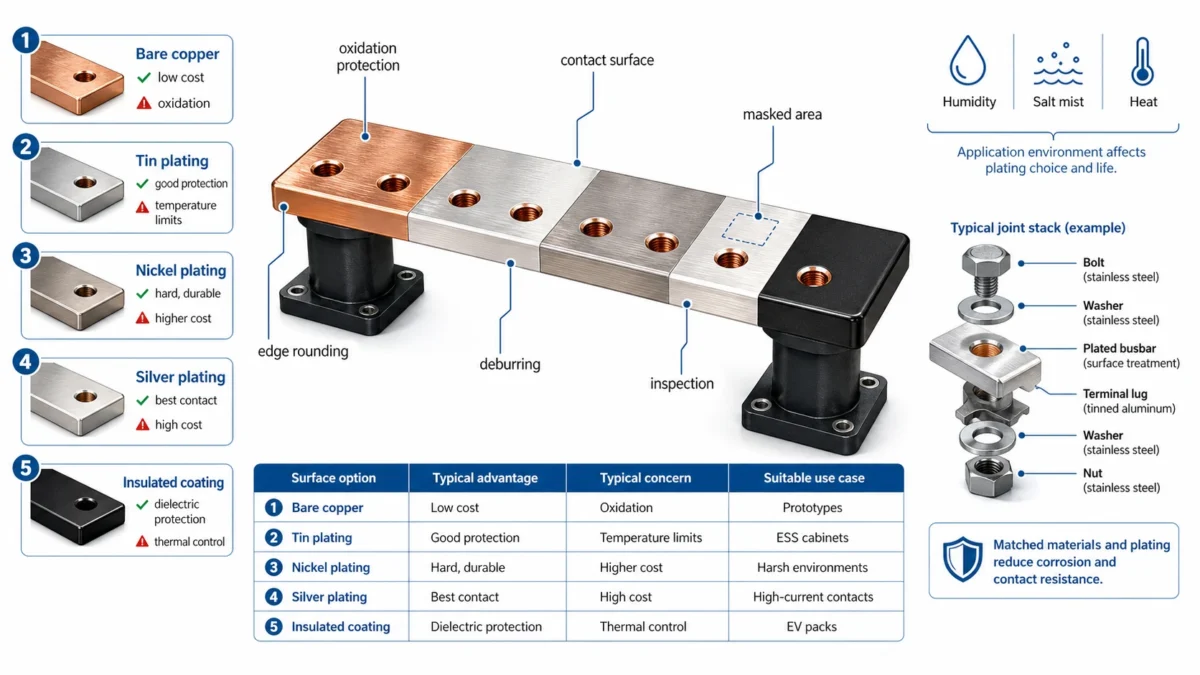

Surface treatment and plating choices
Copper performs well electrically, but bare copper oxidizes. Oxidation does not automatically make a busbar unusable, but it can affect contact surfaces, appearance, long-term storage, and customer confidence. Surface treatment should be selected according to application environment, mating material, contact requirement, cost target, and production process.
Tin plating is common because it provides good solderability and oxidation protection at a reasonable cost. It is frequently used in electrical equipment, energy storage, and industrial power distribution. Nickel plating can provide better hardness, wear resistance, and higher-temperature performance. Silver plating offers excellent conductivity and contact performance, but cost is higher and it is usually reserved for demanding contact applications.
The plating decision should consider the entire joint stack. A plated copper busbar may contact a plated terminal, washer, fuse tab, contactor lug, or power module. Dissimilar metals and environmental exposure can create corrosion risk. If the application involves outdoor energy storage, marine conditions, high humidity, salt mist, or high operating temperature, plating should be discussed early.
Surface treatment is not only about the contact area. Burrs, sharp edges, and poor cleaning can damage insulation, reduce creepage distance, or create assembly hazards. Deburring and edge rounding are therefore important manufacturing steps. In high-quality rigid busbar production, a smooth edge is not cosmetic. It protects the coating, the operator, and the long-term electrical clearance.
| Surface option | Typical advantage | Typical concern | Suitable use cases |
|---|---|---|---|
| Bare copper | Lowest processing cost, excellent base conductivity | Oxidation, handling marks, storage sensitivity | Internal prototypes, protected environments, non-contact areas |
| Tin plating | Cost-effective oxidation protection and good electrical contact behavior | Temperature and fretting limitations in demanding conditions | ESS cabinets, switchgear, general electrical connections |
| Nickel plating | Good hardness and higher-temperature capability | Higher cost, contact resistance must be evaluated by design | Harsh environments, wear-prone interfaces, elevated temperatures |
| Silver plating | Excellent contact performance | High cost and possible tarnish management | Premium high-current contact surfaces and specialized power equipment |
| Insulated coating or sleeve | Dielectric protection and safer assembly | Heat dissipation and coating thickness must be controlled | EV packs, BESS racks, compact data center power modules |
A good drawing should specify plating area, plating thickness if required, masked areas, contact surfaces, and inspection method. If the busbar is insulated, the drawing should also define exposed terminal windows, coating thickness, adhesion expectation, and allowable cosmetic defects.
Insulation, creepage, clearance, and safety
Rigid busbars often operate in high-voltage or high-current environments. Insulation is therefore a functional design element, not a decorative layer. EV battery packs, energy storage racks, and data center power systems all require careful review of creepage, clearance, dielectric strength, heat resistance, flame rating, and mechanical protection.
Insulation options include heat-shrink tubing, PVC sleeves, PET film, epoxy powder coating, PA coating, PI film, molded covers, and custom formed protective parts. Each option has trade-offs. Heat shrink is flexible and common, but it may not provide the same dimensional precision as molded insulation. Powder coating can create a neat protective layer, but edge coverage and coating thickness must be controlled. Film insulation can support compact designs but requires careful processing around bends and windows.
The design must also consider where the copper remains exposed. Terminal pads need exposed conductive surfaces for bolted contact. If the exposed window is too large, electrical clearance may be reduced. If it is too small, assembly may be difficult or contact may be incomplete. This is why insulation design should be coordinated with hole patterns, washers, terminal geometry, torque tools, and service access.
Safety standards vary by market and product category. For low-voltage switchgear and controlgear assemblies, IEC 61439 is often discussed because temperature rise, short-circuit withstand, dielectric properties, and assembly verification are central to safe performance. Schneider Electric’s explanation of IEC 61439 temperature-rise testing emphasizes that busbars, connections, and functional units must carry rated current without excessive hot spots under realistic assembly conditions. Even when a customer’s product is not directly certified under the same standard, the principle remains useful: busbars should be validated inside the real system.
Manufacturing workflow for custom rigid busbars
A reliable custom rigid busbar is the result of a controlled manufacturing route. The exact process depends on geometry and quantity, but a typical workflow includes material selection, cutting, punching or milling, bending, deburring, cleaning, plating, insulation, inspection, marking, packaging, and shipment.
At JUMAI, we combine busbar manufacturing with precision stamping and deep-drawing knowledge. This is useful because many busbar projects also require brackets, covers, terminals, housings, clips, or die components. Our article on stamping die basics explains how tooling decisions, first-off samples, and production control connect to downstream manufacturing stability. The same discipline applies to rigid busbars: a sample should not be treated as a handmade exception. It should be the first proof that the production route can become stable.
| Process step | Main purpose | Quality focus |
|---|---|---|
| Material selection | Match copper grade, thickness, temper, and certificate requirement | Grade traceability and surface condition |
| Cutting or blanking | Create accurate blank geometry | Length, width, squareness, edge condition |
| Punching or milling | Create holes, slots, and terminal features | Hole diameter, positional tolerance, burr control |
| CNC bending or forming | Create 3D geometry and offsets | Bend angle, radius, flatness, springback control |
| Deburring and cleaning | Remove sharp edges and contamination | Edge safety, plating readiness, insulation protection |
| Plating | Protect contact surfaces and improve long-term performance | Thickness, adhesion, appearance, masked areas |
| Insulation | Provide dielectric protection and safe handling | Coverage, thickness, adhesion, exposed windows |
| Inspection | Confirm conformance before shipment | Critical dimensions, surface, plating, insulation, packaging |
| Packaging | Prevent deformation and oxidation during transit | Part separation, moisture control, label clarity |
For low-volume prototypes, CNC processing can be efficient because it avoids expensive hard tooling. For high-volume programs, stamping dies or dedicated fixtures may reduce unit cost and improve repeatability. The transition from prototype to production should be planned. Otherwise, a buyer may approve a sample that cannot be produced economically at scale.
How to design a rigid busbar RFQ that suppliers can quote accurately
A strong RFQ saves time for both buyer and supplier. It reduces assumptions, prevents hidden cost, and makes supplier comparison more meaningful. The most common problem we see is that buyers send only a rough size and current rating. That may be enough for a budget estimate, but it is not enough for an engineering quotation.
A better RFQ should include drawings, 3D files if available, current profile, voltage level, temperature-rise target, operating environment, required copper grade or conductivity, plating preference, insulation requirement, annual volume, prototype quantity, inspection standard, packaging expectation, and compliance context. If the design is not final, the buyer should say which variables are open for supplier recommendation.
| RFQ item | Minimum information to provide | Why it matters |
|---|---|---|
| Application | EV, ESS, data center, switchgear, inverter, UPS, or other system | Helps supplier judge environment and risk level |
| Electrical rating | Continuous current, peak current, duty cycle, voltage, short-circuit condition | Determines conductor size and validation need |
| Thermal target | Ambient, airflow, enclosure condition, allowable temperature rise | Prevents under-designed busbars in hot cabinets |
| Mechanical data | 2D drawing, 3D model, hole positions, bend angles, tolerances | Controls fit and assembly repeatability |
| Surface treatment | Bare, tin, nickel, silver, partial plating, contact area requirements | Affects cost, lead time, and joint performance |
| Insulation | Material, color, thickness, exposed windows, dielectric requirement | Affects safety, clearance, and thermal behavior |
| Quantity | Prototype, pilot, annual forecast, batch size | Determines whether CNC, tooling, or fixture investment is appropriate |
| Quality documents | Material certificate, dimensional report, plating report, FAI, PPAP-style records | Supports customer approval and production traceability |
| Packaging | Part protection, label, batch traceability, export packaging | Prevents deformation, scratching, oxidation, and mixed parts |
If a buyer does not know the correct cross-section, we can help with preliminary sizing. However, final ampacity should be validated according to the customer’s real assembly conditions. The supplier can support manufacturing and practical design, but system-level safety remains a joint engineering responsibility.

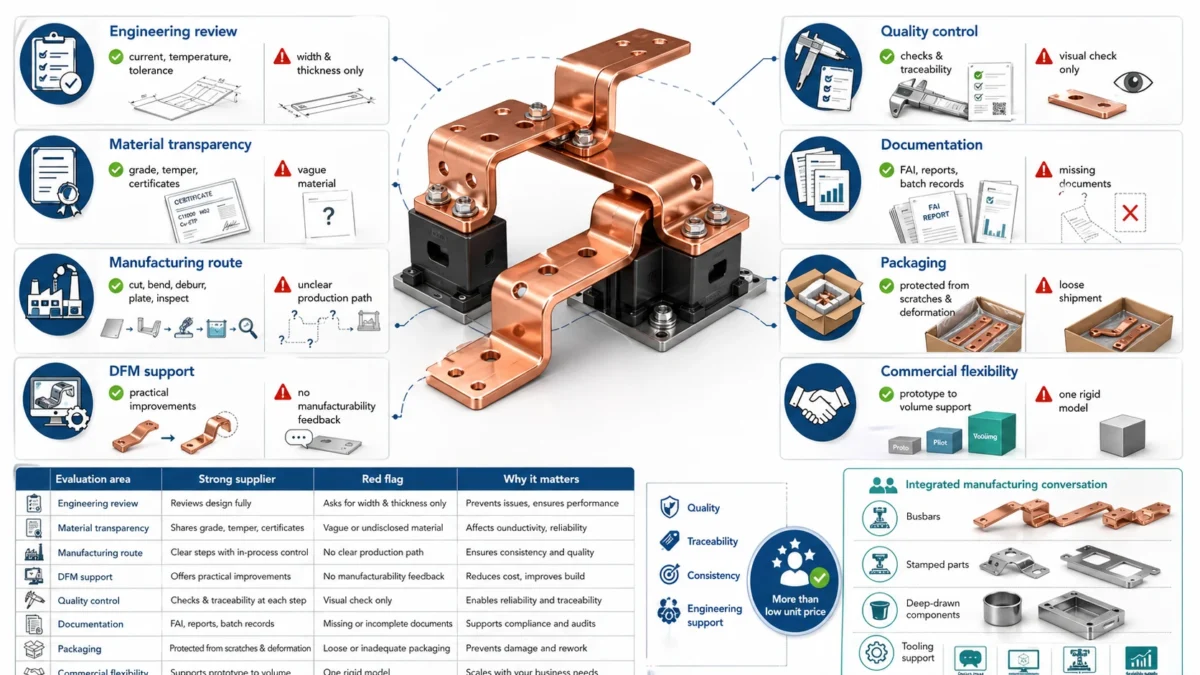

Comparing suppliers: look beyond the unit price
Rigid busbar quotations can look similar on the surface. They may list copper grade, thickness, plating, quantity, and unit price. But the real difference between suppliers is often hidden in engineering response, process control, documentation, and sample-to-production consistency.
A low price can become expensive if the busbar arrives with burrs, warped bends, wrong plating, poor hole alignment, weak insulation adhesion, unclear batch labels, or no inspection data. The cost of a bad busbar is not only replacement. It can include line stoppage, delayed validation, rework, customer complaints, and engineering time.
| Supplier evaluation area | What a strong supplier does | Red flag |
|---|---|---|
| Engineering review | Asks about current, temperature, tolerance, plating, insulation, and assembly | Quotes instantly from width and thickness only |
| Material transparency | States copper grade, temper, certificate plan, and equivalent options | Uses vague terms such as “copper material” without grade |
| Manufacturing route | Explains cutting, punching, bending, deburring, plating, and inspection | Cannot explain how prototypes will become repeatable production |
| DFM support | Suggests practical changes to reduce risk, cost, or lead time | Treats every drawing as untouchable even when manufacturability is weak |
| Quality control | Provides dimensional checks, surface inspection, and process traceability | Relies only on final visual inspection |
| Documentation | Supports FAI, material certificates, plating reports, and batch records | Avoids document requests or charges surprise fees later |
| Packaging | Protects busbars from deformation, scratches, and oxidation | Ships heavy copper parts loosely in the same box |
| Commercial flexibility | Aligns MOQ, prototype cost, tooling, and volume price with project stage | Forces one rigid commercial model for every project |
JUMAI’s advantage is not only that we can produce rigid busbars. It is that we can integrate rigid busbars with related copper conductors, stamped parts, deep-drawn components, and tooling support. This gives customers a more complete manufacturing conversation. When the busbar interacts with a bracket, housing, cover, terminal, or stamped accessory, we can review the interface rather than quoting one isolated metal strip.
Cost drivers that procurement teams should understand
The cost of a custom rigid busbar is shaped by copper mass, material grade, thickness, geometry, hole pattern, bending complexity, plating, insulation, tolerance, inspection, packaging, volume, and tooling. Procurement teams should understand these drivers before comparing quotes.
Copper mass is often the largest visible cost. A wider or thicker bar increases material cost directly. However, reducing copper mass without reviewing temperature rise and voltage drop can create performance risk. The better approach is value engineering. We can review whether current paths can be shortened, whether width or thickness is more efficient, whether unnecessary copper areas can be removed, and whether a bend or slot can simplify assembly.
Geometry is another major cost driver. A simple flat busbar with several holes is much easier to produce than a multi-bend 3D busbar with tight hole-to-bend relationships. Complex geometry may require special fixtures, slower bending, more inspection, or higher scrap allowance. If a small design adjustment can increase manufacturability, it may reduce cost without changing electrical function.
Plating and insulation also influence price. Full plating may be more expensive than selective plating. Complex masking can increase labor. Insulation with precise windows requires more control than a simple sleeve. For high-volume projects, tooling and fixtures may be justified to reduce long-term unit cost. For early prototypes, it may be better to accept a higher unit price and avoid premature tooling investment.
| Cost driver | How it affects price | Practical optimization |
|---|---|---|
| Copper mass | Direct material cost and shipping weight | Optimize cross-section with real current and temperature assumptions |
| Thickness | Affects material cost, bending force, and bend radius | Avoid unnecessary thickness when width can solve heat better |
| Bend complexity | Increases setup, fixture, and inspection effort | Simplify bends and maintain practical distance from holes |
| Hole pattern | Dense or tight-tolerance holes increase machining control | Standardize hole sizes and tolerances where possible |
| Plating | Adds process cost and lead time | Use selective plating or suitable plating grade based on contact needs |
| Insulation | Adds material, labor, and inspection | Define exposed windows clearly and avoid over-complex insulation shapes |
| Tolerance | Tight tolerance increases inspection and scrap risk | Tighten only functional dimensions, not every dimension |
| Volume | Changes the best manufacturing route | Separate prototype, pilot, and mass-production pricing |
| Documentation | Requires inspection time and record control | Define required reports early to avoid late-stage surprises |
A commercially strong busbar project balances engineering safety and cost discipline. The goal is not simply to buy the cheapest copper part. The goal is to buy a component that performs reliably, installs smoothly, and scales predictably.
Prototype validation and production approval
Prototype approval should not be treated as a visual confirmation. A rigid busbar prototype should be checked for fit, torque access, terminal contact, insulation coverage, temperature behavior, and assembly sequence. If the part is used in EV, ESS, or data center power equipment, the customer should also validate electrical and thermal performance in the real system.
A typical validation plan may include dimensional inspection, material certificate review, plating thickness check, insulation inspection, contact surface review, installation trial, torque test, thermal rise test, vibration or shock evaluation if relevant, and packaging review. For higher-risk projects, first article inspection or PPAP-style documentation may be requested.
The prototype stage is also the best time to correct the drawing. If a hole needs a slot, if a bend needs a larger radius, if a terminal pad needs more exposed area, or if a coating edge is too close to a washer, those issues should be updated before the pilot batch. Uncontrolled changes after production begins are expensive and risky.
| Validation item | What to check | Why it matters |
|---|---|---|
| Dimensional fit | Hole alignment, bend angle, flatness, overall envelope | Prevents assembly rework |
| Contact surface | Plating, flatness, cleanliness, burrs | Reduces joint resistance and hot spots |
| Torque access | Tool clearance and washer seating | Ensures the part can be installed correctly |
| Thermal behavior | Temperature rise under realistic load | Confirms electrical sizing inside the system |
| Insulation | Coverage, exposed windows, edge quality, adhesion | Protects dielectric safety and handling |
| Marking | Part number, polarity, batch identification if required | Supports production and service control |
| Packaging | Protection from bending, scratching, moisture, and mixed batches | Prevents damage before installation |
For volume programs, production approval should define the control plan. Which dimensions are critical? Which surfaces are contact-critical? What plating thickness is required? What defects are acceptable or not acceptable? How should parts be packed? How should changes be approved? These questions are not bureaucracy. They protect the buyer and supplier from avoidable disputes.
How JUMAI supports custom rigid busbar projects
JUMAI supports global customers with custom rigid busbars, flexible copper busbars, braided copper busbars, deep-drawn components, precision stamping dies, and related accessories. Our role is not only to manufacture a copper part from a drawing. We help customers review the practical connection between electrical requirements, mechanical design, manufacturability, and commercial scale-up.
For early-stage projects, we can help review a concept drawing and identify risk points: insufficient bend radius, hole too close to a bend, unclear plating area, coating window conflict, difficult torque access, excessive tolerance, or unnecessary copper mass. For mature projects, we can support sampling, dimensional reporting, plating and insulation coordination, packaging, and repeat production.
Our integrated capability is valuable when the busbar interacts with other formed metal parts. For example, an ESS customer may need a rigid busbar plus a stamped mounting bracket. An EV customer may need a busbar plus a protective deep-drawn cover. A data center customer may need a busbar plus a custom terminal plate or formed shield. Because JUMAI works across busbar and precision metal processes, we can review interfaces that a single-process supplier might miss.
We also understand that B2B customers need commercial clarity. A buyer may need prototype pricing quickly, but volume pricing should be based on realistic process assumptions. Tooling, fixtures, plating batches, inspection time, export packaging, and copper price movement should be discussed openly. This helps avoid a common problem: a supplier gives an attractive sample price, then changes assumptions when production begins.
When customers approach us with incomplete data, we do not reject the project. We help structure the information. The most efficient starting package includes the application, current, voltage, duty cycle, ambient temperature, expected temperature rise, drawing or 3D model, material preference, plating preference, insulation requirement, prototype quantity, and target annual volume. If some items are unknown, we can list assumptions and move forward step by step.
Practical design checklist before ordering
Before ordering custom rigid busbars, buyers can use the following checklist to reduce risk.
| Checklist question | Why it matters |
|---|---|
| Is the busbar path fixed, or does it need to absorb movement? | Fixed paths suit rigid busbars; moving paths may need flexible or braided conductors |
| Is the current continuous, intermittent, or peak-only? | Current profile affects cross-section and thermal design |
| What is the real ambient temperature inside the enclosure? | Internal cabinet temperature can be much higher than room temperature |
| Is the allowable temperature rise defined? | Without this, “ampacity” is ambiguous |
| Are creepage and clearance requirements confirmed? | High-voltage systems need safe spacing and insulation design |
| Are contact surfaces clearly defined? | Exposed copper or plated areas must match terminal geometry |
| Are hole tolerances and bend tolerances functional? | Over-tight tolerances increase cost; loose critical tolerances create assembly risk |
| Is plating selected for the environment? | Indoor, outdoor, humid, high-temperature, and vibration environments differ |
| Is the insulation material suitable for temperature and voltage? | Insulation failure can create safety and reliability problems |
| Can the technician access the bolt and torque tool? | A perfect electrical design can still fail if it is hard to assemble |
| Is packaging strong enough for heavy copper parts? | Copper can bend, scratch, or oxidize during shipping if not protected |
| Are prototype and mass-production routes aligned? | A handmade prototype may not represent volume production |
This checklist is intentionally practical. The best busbar projects succeed because engineering, procurement, quality, and manufacturing teams agree on requirements early.
The commercial case for custom rigid busbars
Custom rigid busbars are not always the cheapest conductor by piece price. Their commercial value appears in the total system. They can reduce assembly labor, improve repeatability, support better thermal design, lower electrical losses, reduce installation errors, and simplify inspection. For EV, energy storage, and data center applications, these advantages can directly affect product reliability and project delivery.
In EVs, rigid busbars help fit high-current routes into compact high-voltage architectures. In energy storage, they help standardize repeated rack and cabinet connections. In data centers, they help manage dense power distribution and service-critical uptime. Across all three markets, the same rule applies: the busbar should be engineered as part of the system, not purchased as a generic copper strip.
The strongest procurement decision is therefore not simply “busbar versus cable” or “rigid versus flexible.” It is the correct conductor architecture for each electrical path. Some paths need rigid copper. Some need flexible laminated copper. Some need braided copper. Some need stamped accessories, deep-drawn protection, or special terminals. JUMAI’s manufacturing platform is built to support that broader decision.
If your project involves EV battery systems, energy storage cabinets, UPS equipment, AI data center power modules, switchgear, or high-current industrial equipment, custom rigid busbars can improve both performance and production discipline. Share your drawings, current profile, assembly constraints, and commercial volume plan with JUMAI. We can help review the design, identify manufacturability improvements, and build a busbar solution that is ready for real production rather than only a prototype demonstration.
